Temperature adjusting device for a soldering iron
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 21, 2004
Grant Date -
N/A
app pub date -
Aug 5, 2003
filing date -
Aug 5, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

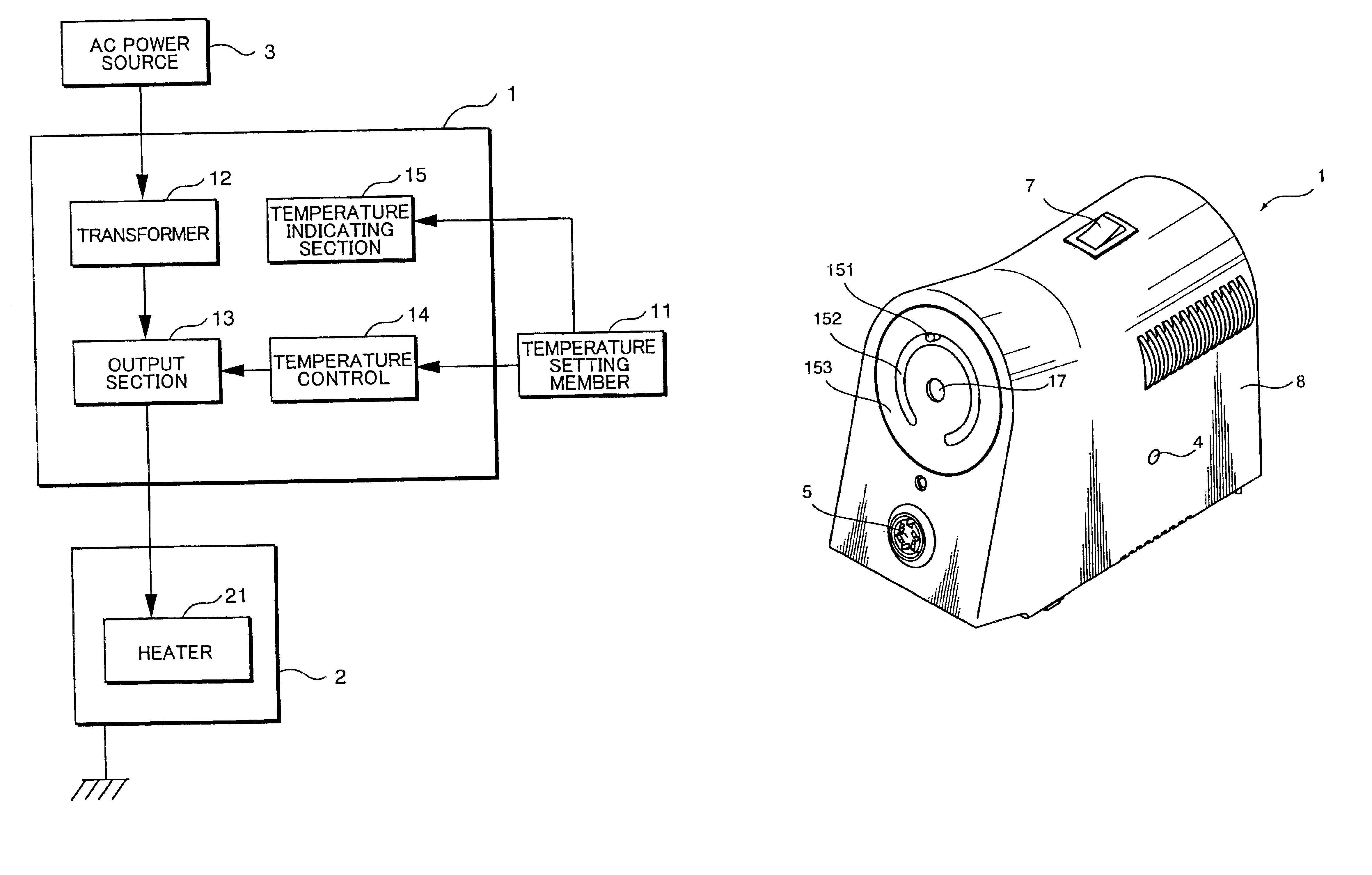

Disclosed is a temperature adjusting device for adjusting or setting temperature of a soldering iron, with the adjustment or setting being allowed to a particular authorized operator. The device comprises a temperature control section having a moveable member which is moveable to change an electric parameter, such as a resistance, as a function of the movement of the moveable member, the temperature control section controlling the temperature of the soldering iron in accordance with the electric parameter; a manipulation member detachably coupled to the moveable member to move the moveable member to change the electric parameter; and an indicator interrelated with the moveable member to indicate an adjusted temperature, the indicator being capable of making the indication even when the manipulation member has been detached from moveable member.
First Claim
Other Claims data not available
Family
