Dimensionally stable parts having good torsional stability and compositions and methods for making same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 21, 2004
Grant Date -
N/A
app pub date -
Jan 17, 2003
filing date -
Jan 22, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

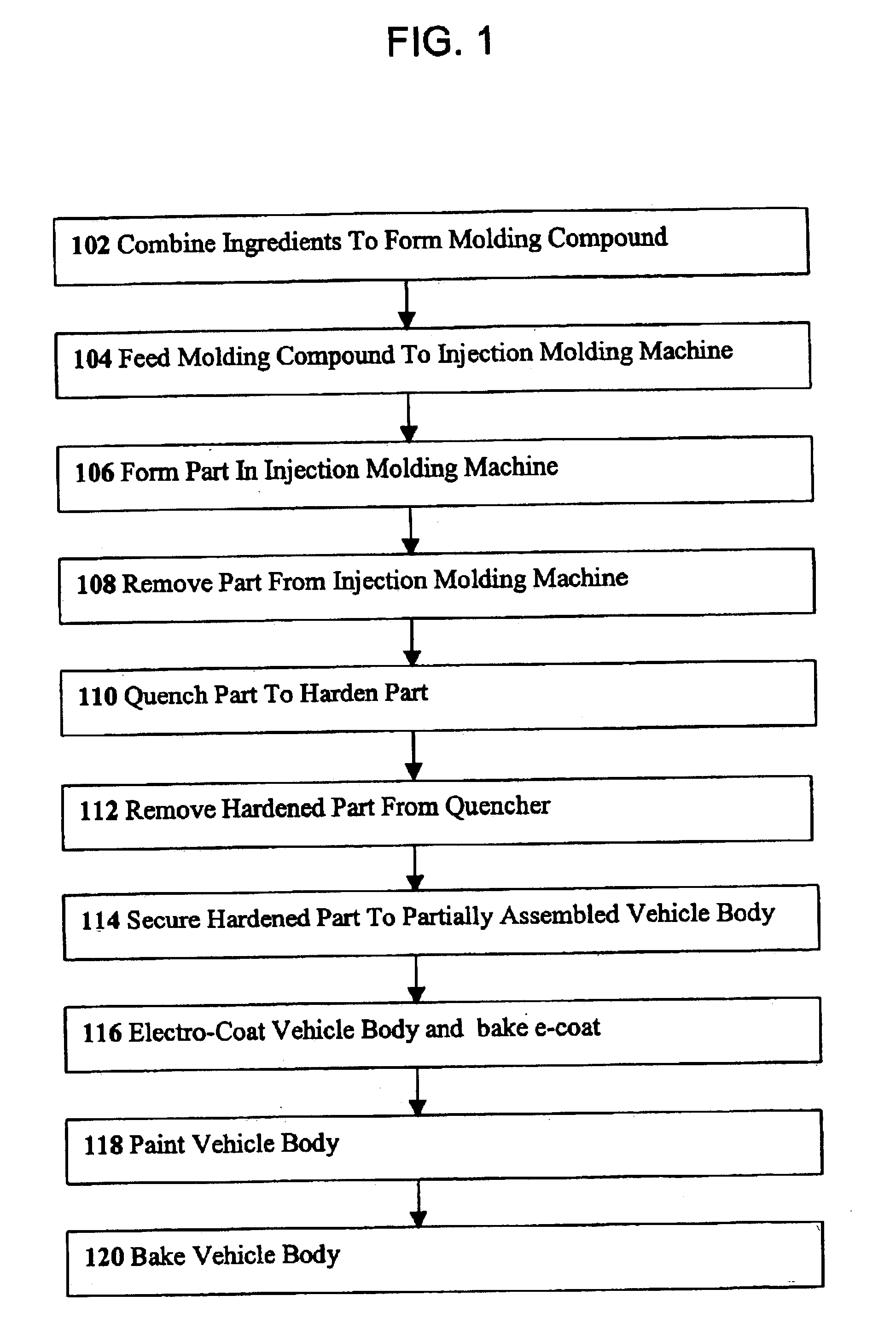

Compositions, apparatus and methods of the present invention concern the manufacturing parts that remain strong and dimensionally stable after exposure to e-coat painting conditions. Such manufacturing includes providing a molding compound having about 55-65% by weight polyethylene terephthalate content, about 35-45% by weight filler content, and optionally about 1% by weight blowing agent content. When an injection molding machine is provided, the molding compound can be fed into the injection molding machine to form a raw part. The raw part can then be removed from the injection mold and quenched in a quenching bath to produce a hardened part. The hardened part can then be secured to a partially assembled vehicle. The hardened part, along with the rest of the partially assembled vehicle can then be electro-coated, painted, and baked to produce a final vehicle or sub-assembly thereof.
First Claim
Other Claims data not available
