Evaporative desorption soil treatment apparatus and process
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 14, 2004
Issued Date -
N/A
app pub date -
Feb 18, 2004
filing date -
Feb 6, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

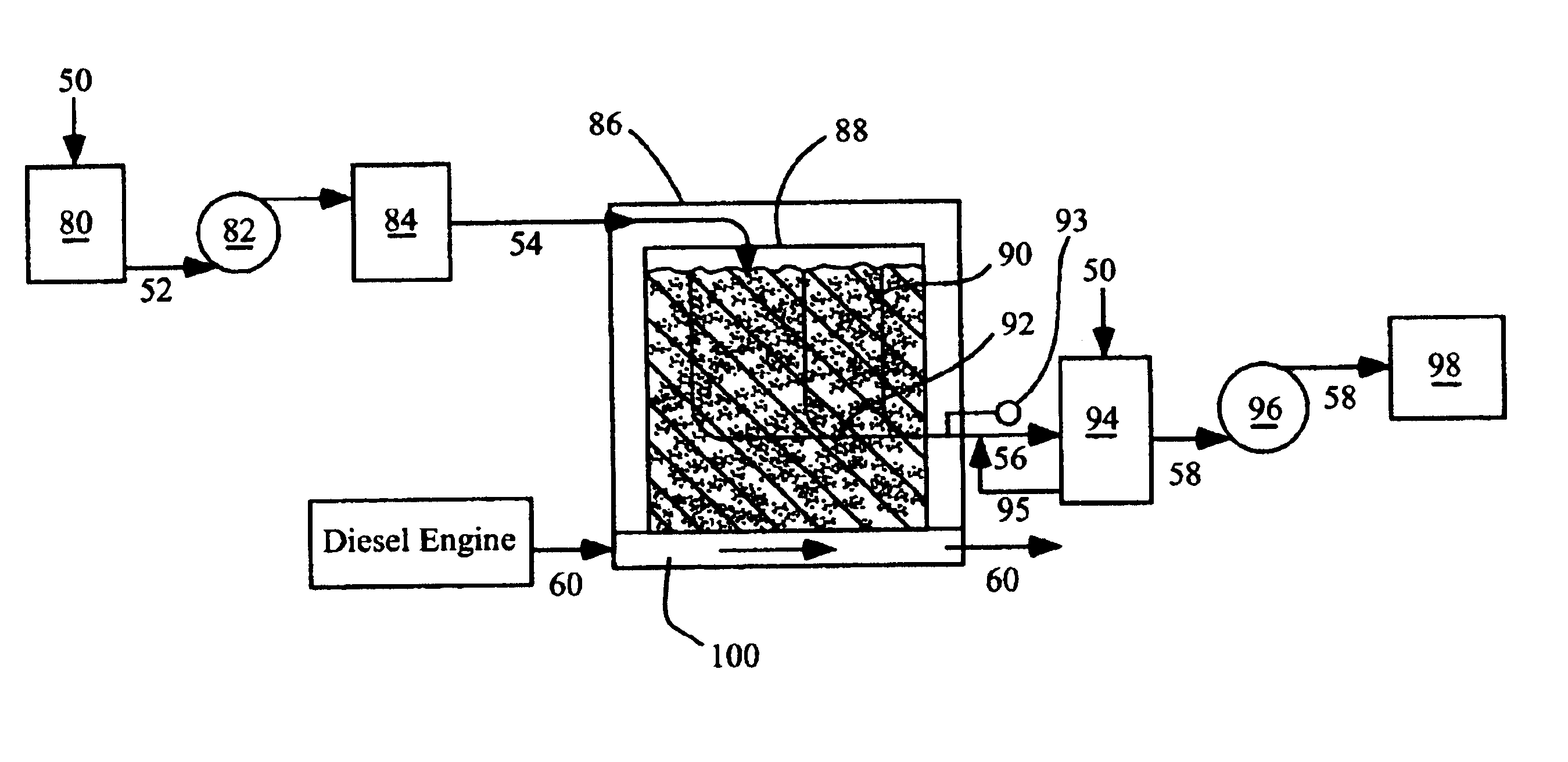

Treatment apparatus and a process for thermal desorption of hydrocarbon contaminants from excavated soil provides efficient contaminant removal by handling the soil in a thermally conductive treatment vessel that fits within an insulated treatment chamber. The soil is treated in this chamber with fresh air that is dried and electrically heated prior to contacting the treatment vessel. The dry air passes through the soil and the air mixed with contaminants is withdrawn from the chamber through piping in the treatment vessel. Excavating the soil directly into the treatment vessel allows the treated soil to be returned to the final disposition site in the same vessel, minimizing soil handling.
First Claim
Other Claims data not available
