Rear-axle demand for use with front push-through in electrohydraulic (EHB) braking systems
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 30, 2004
Issued Date -
N/A
app pub date -
Apr 10, 2003
filing date -
Oct 14, 2000
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

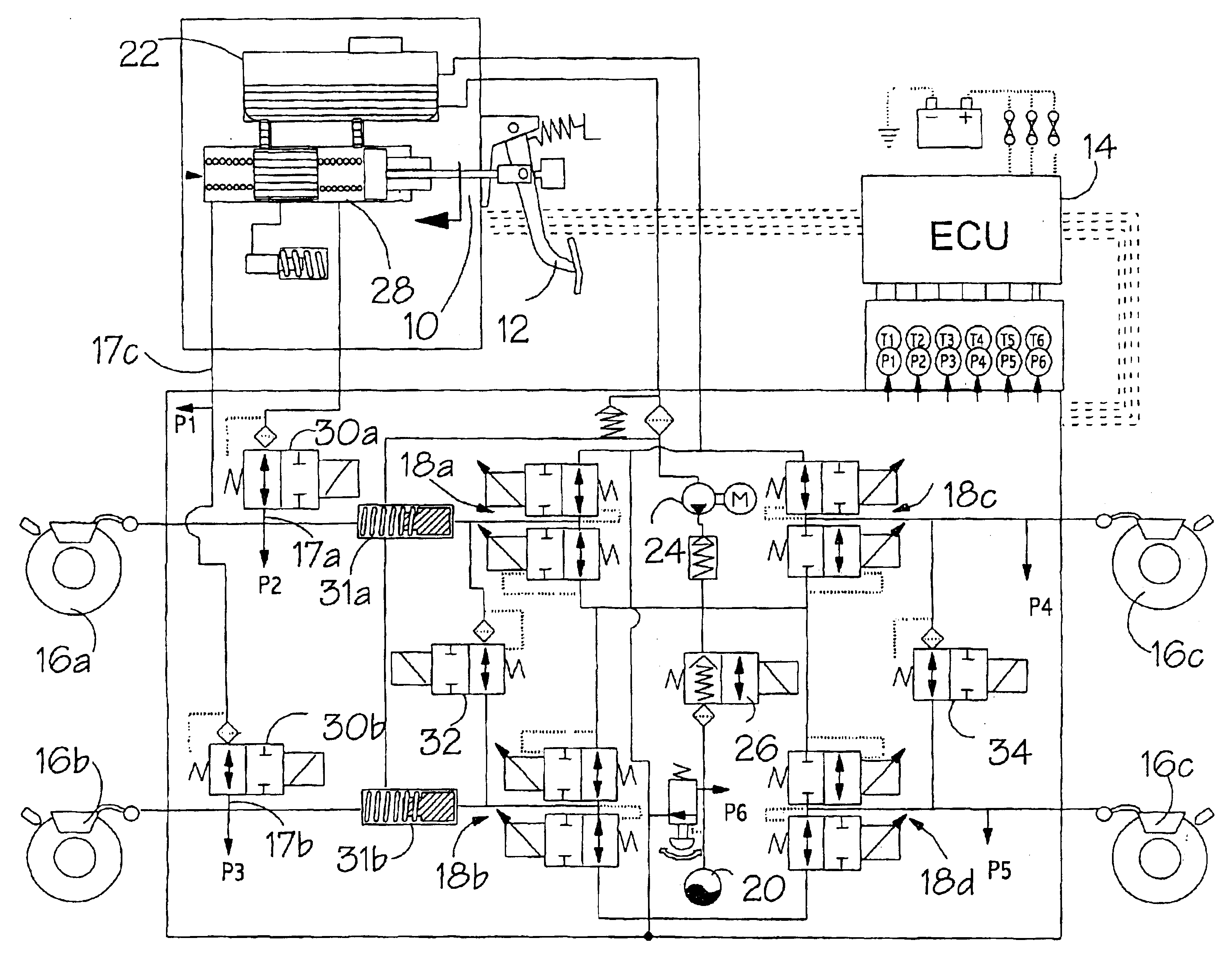

An electro-hydraulic braking system of the type which operates normally in a brake-by-wire mode wherein hydraulic pressure is applied to braking devices at the vehicle wheels in proportion to the driver's braking demand as sensed electronically at a brake pedal, and which, if the brake-by-wire mode should fail, at least as far as the front brakes are concerned, operates in a push-through mode wherein hydraulic pressures are applied to the braking devices at the front wheels of the vehicle by way of a tandem master cylinder coupled mechanically to the brake pedal, wherein, in the situation where push-through operation has been selected at the front brakes but the rear brakes are continuing to be operated under EHB, a rear brake demand is calculated as a 'multiple average' from the expression: [P2+(P1+P3)/2]/2 where P1 and P3 are signals from the master cylinder and a front brake sensor in the same push-through circuit and P2 is a signal from the front brake sensor in the other circuit.
First Claim
Other Claims data not available
