Floor covering
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 9, 2004
Grant Date -
Nov 14, 2002
app pub date -
Mar 12, 2002
filing date -
Mar 14, 2001
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

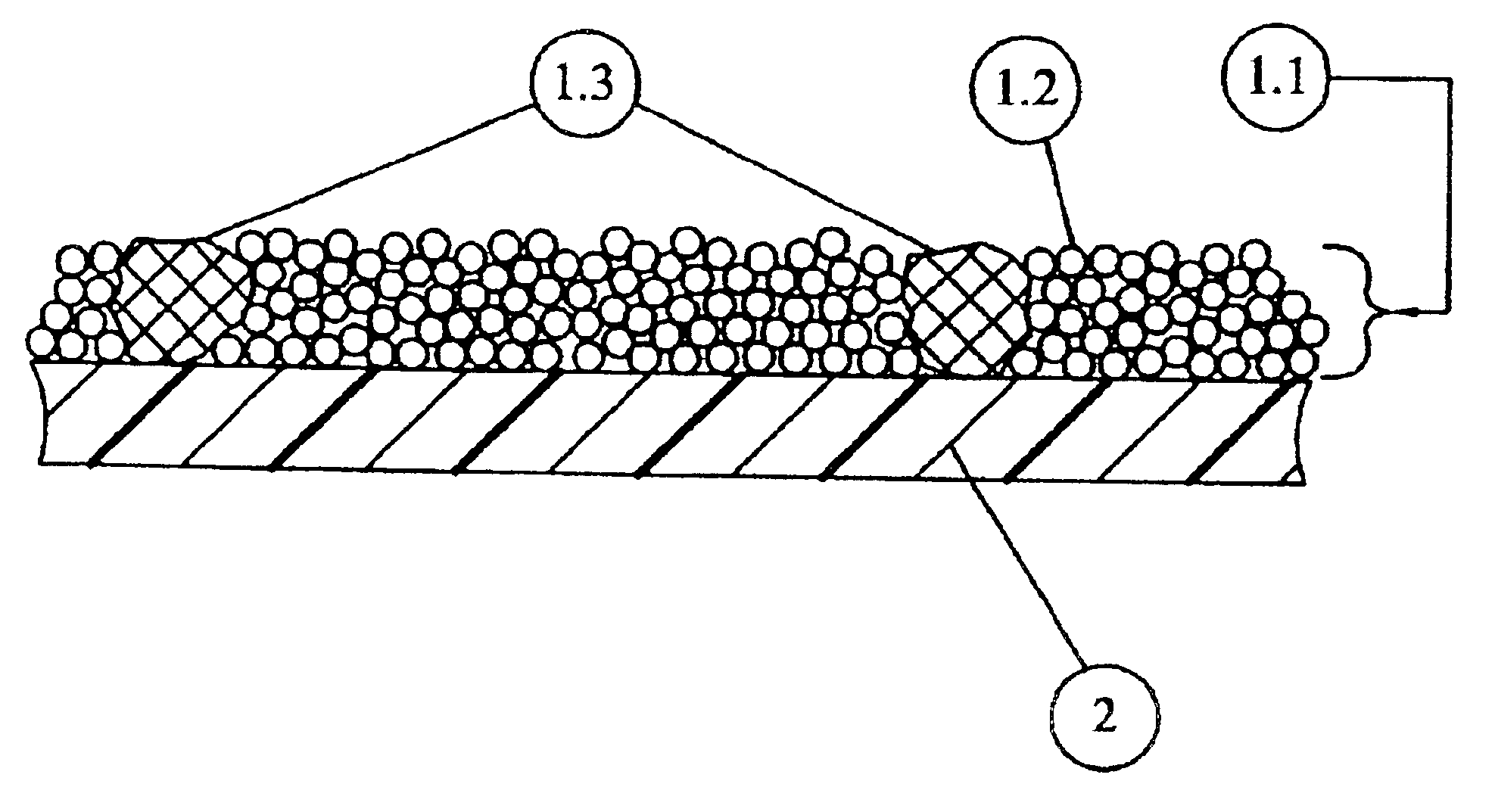

A floor covering made up of at least two layers bonded to one another, including a bottom layer (2) of electrically conductive rubber arranged under a light-colored top layer (1) of rubber, where the top layer (1) is interrupted in partial areas distributed over its area in a pattern, and formed by electrically conductive rubber there. The top layer (1) is produced from a powder (1.1) of first particles (1.2) that are light in color and made of electrically insulating rubber, as well as second particles (1.3) embedded in it, which are made of electrically conductive, at least partially vulcanized rubber. The second particles (1.3) have a diameter D, determined by screen analysis, that is at least as great as the thickness D1 of the top layer and, for practical purposes, not greater than the total of the thicknesses of the top layer and the bottom layer D2. The first (1.2) and the second (1.3) particles are pressed together and to the bottom layer (2), without pores, and bonded by vulcanization. At least one of the second particles (1.3) is present per area unit of the floor covering of 31.7 cm.sup.2, with the proviso that a maximum of 50% of the total area of the floor covering is taken up by the area of the second particles (1.3).
First Claim
Other Claims data not available
