Method and apparatus for ultrasound diagnostic imaging
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 9, 2004
Grant Date -
N/A
app pub date -
Apr 16, 2003
filing date -
Apr 16, 2003
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

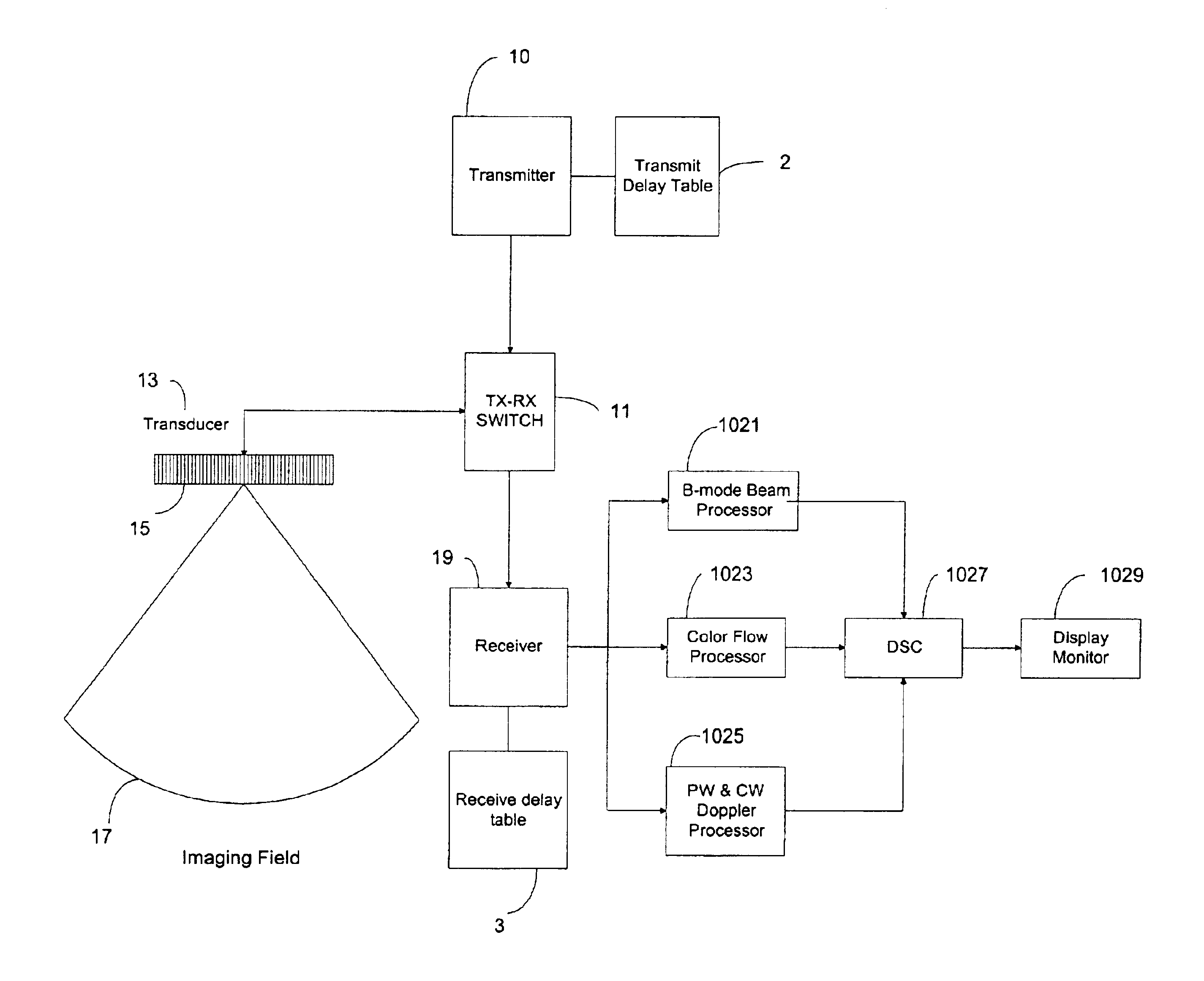

In accordance with the present invention, a method for reducing noise in ultrasound images comprising the steps of transmitting and receiving from an ultrasound transducer comprising a plurality of apexes a plurality of ultrasound beams from a first apex to form a first sector image comprising a plurality of image intensities, transmitting and receiving from at least one other apex of the transducer a plurality of ultrasound beams to form at least one other sector image comprising a plurality of image intensities overlapping a portion of the first sector image to form an overlap region, and combining the first sector image and the at least one other sector image to produce a compound image.
First Claim
Other Claims data not available
