Drive-by-wire lawn mower
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 26, 2004
Grant Date -
Jun 19, 2003
app pub date -
Dec 14, 2001
filing date -
Dec 14, 2001
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

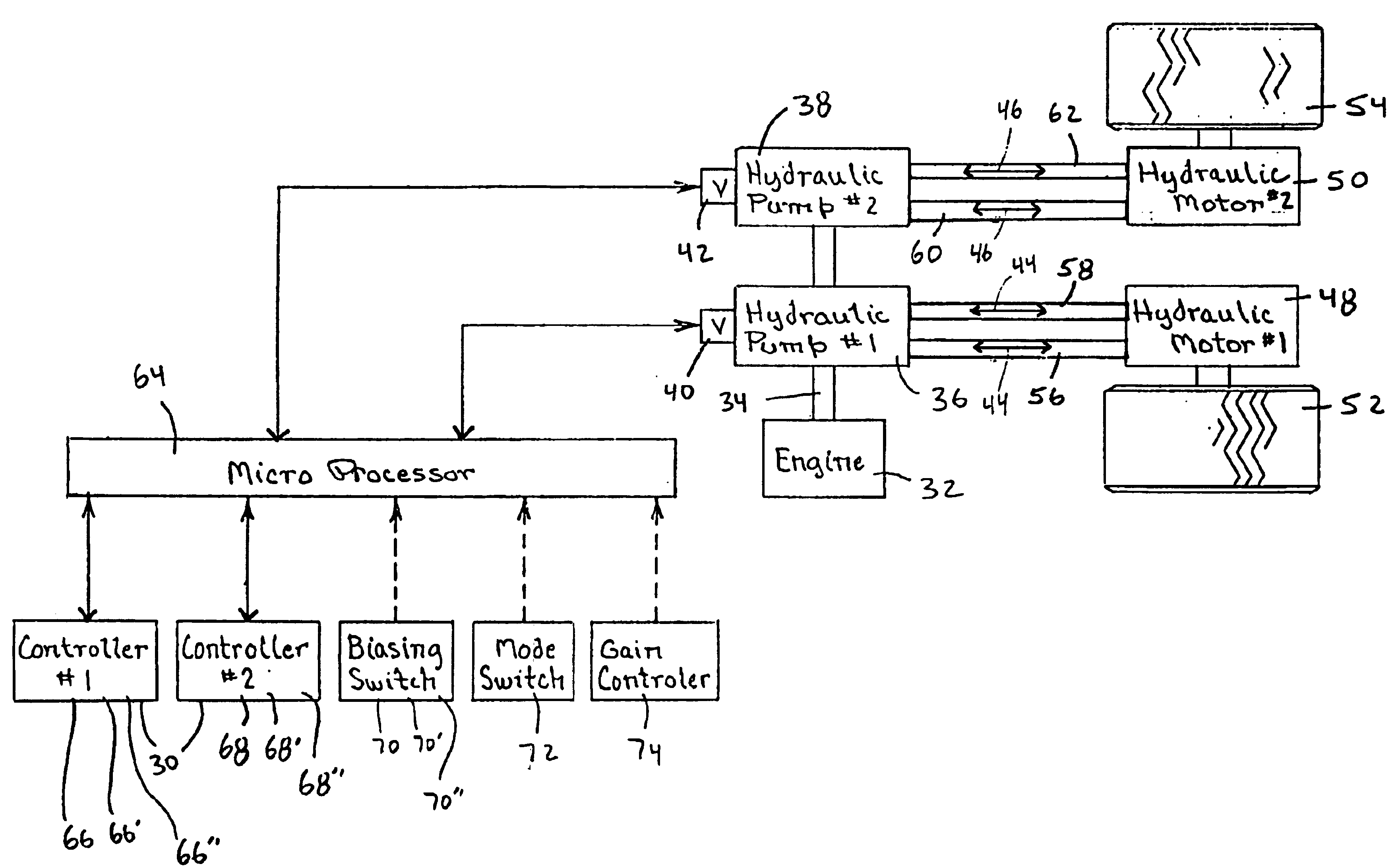

The mower has at least two independently driven wheels that are each capable of bi-directional rotation. The at least two wheels are independently driven so that operation of the at least two wheels causes the at least two wheels to independently rotate which propels and steers the mower. A microprocessor controls the operation of the at least two wheels in accordance with signals received by the microprocessor. The mower has at least one controller. The at least one controller sends signals to the microprocessor that the microprocessor uses to control the operation of the at least two wheels. The operation of the at least one controller causes the at least two wheels to propel and steer the mower.
First Claim
Other Claims data not available
