Electronic earth leakage current device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 19, 2004
Grant Date -
N/A
app pub date -
Oct 3, 2002
filing date -
Dec 30, 1999
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

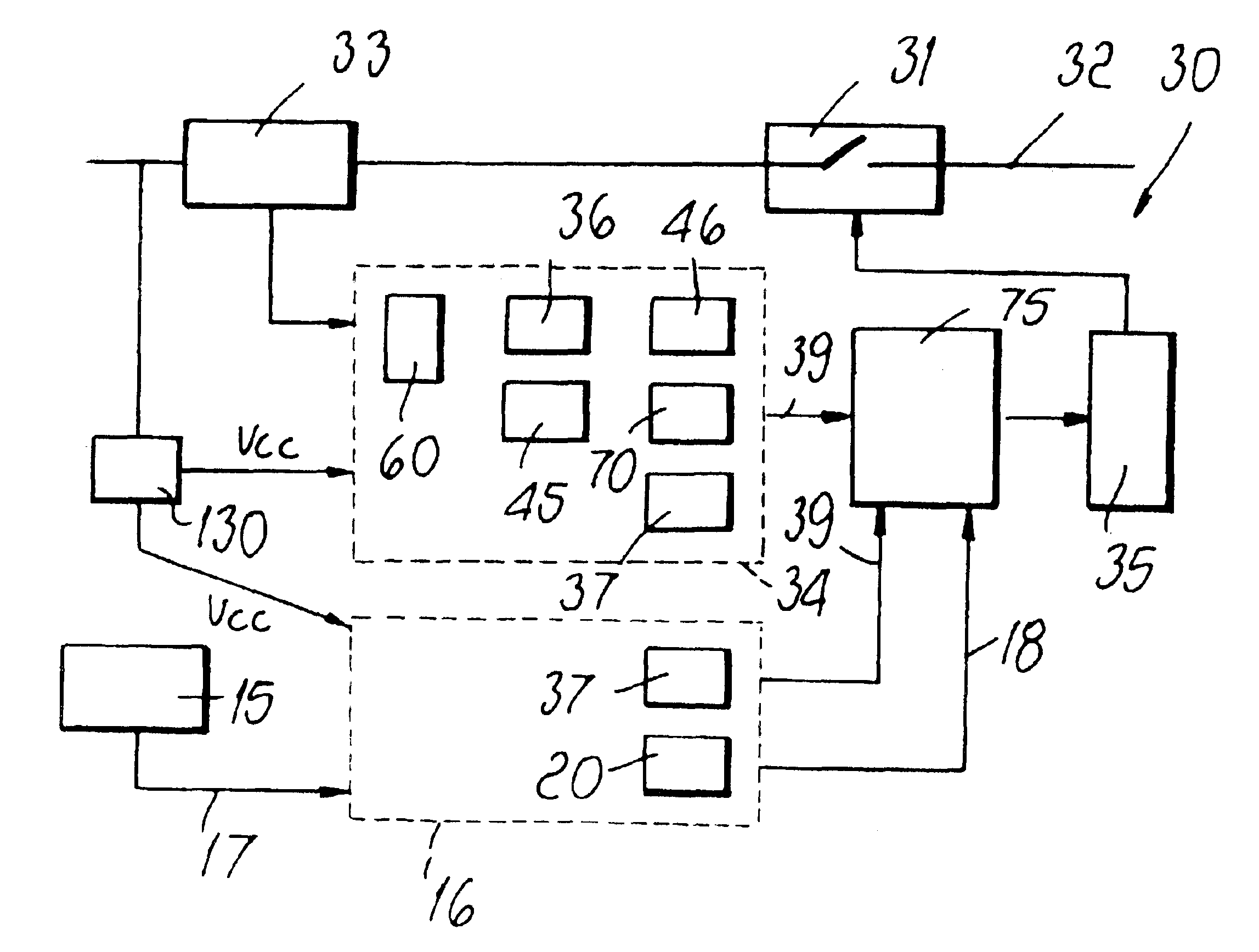

An electronic earth leakage current device, comprising: a moving contact and a fixed contact which can be mutually coupled/uncoupled; and first sensor means for detecting an earth leakage current and for generating an electric signal which is indicative of the value of the earth leakage current; and first electronic means which are electrically connected to the first sensor means in order to generate, on the basis of the electric signal which is indicative of the value of the earth leakage current, an electric tripping signal; and actuation means, operatively connected to the moving contact, in order to perform, in response to an electric tripping signal, the separation of the moving contact from the fixed contact; Its particularity consists of the fact that it comprises: second sensor means for detecting one or more physical values which are indicative of the operating condition of the electronic device for protection against earth leakage current; and second electronic means, electrically connected to the second sensor means, for receiving from the second sensor means electric signals which are indicative of the operating condition of the electronic device for protection against earth leakage current and for generating an electric tripping signal depending on the electric signals.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H02H Class
- 4.49 % this patent is cited more than
- 21 Age
