Transformer winding
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 19, 2004
Grant Date -
Jun 10, 2004
app pub date -
Dec 6, 2002
filing date -
Dec 6, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

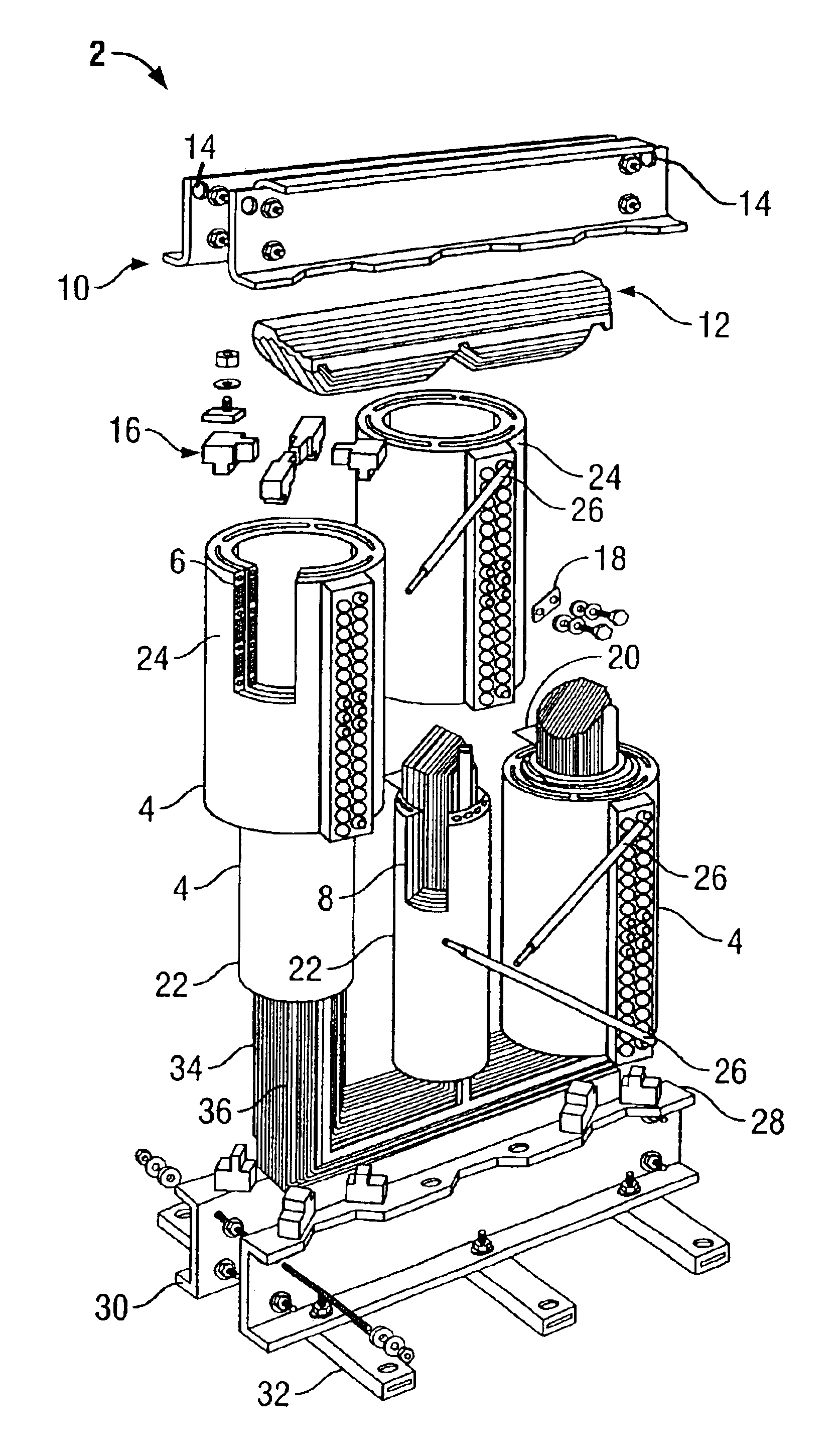

An electrical transformer is disclosed. The electrical transformer comprises a central axis, a first modular section, and a second modular section. The first modular section is positioned about the central axis and comprises a first support, a first winding of a conductive element, and a first insulating material. The first winding of a conductive element is located about the first support. The first insulating material covers a portion of the first modular section. The second modular section is axially aligned with the first modular section and electrically connected to the first modular section. The second modular section comprises a second support, a second winding of a conductive element, and a second insulating material. The second winding of a conductive element is located about the second support. The second insulating material covers a portion of the second modular section.
First Claim
Other Claims data not available
