Self-aligning cutter hub assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 21, 2004
Issued Date -
N/A
app pub date -
Jun 30, 2003
filing date -
Mar 22, 2001
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

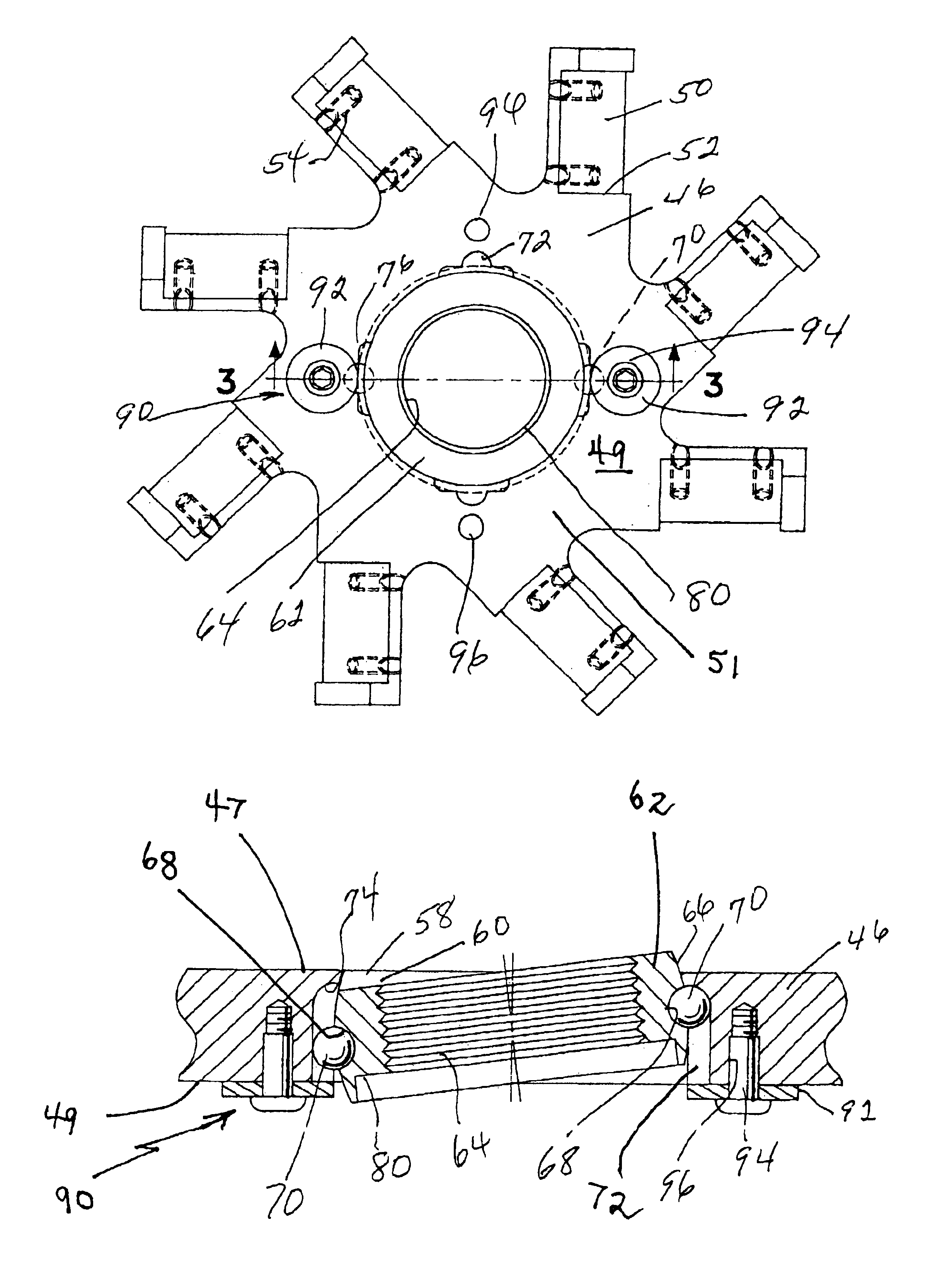

An assembly retainer for a self-aligning pelletizer cutter hub having a self-aligning driving connection between a cutter hub and a drive shaft for the hub in which the cutter hub is capable of universal pivotal movement as well as a driving connection through diametrically located recesses and spherical balls. The retainer is supported on the hub to retain the torque transmitting balls in the recesses. In one embodiment, the balls are retained by circular plates attached to the hub in position to form a closure for an open end of each recess. In another embodiment, spring pins are inserted in passageways in the hub with one end extending into an open end of said recesses to form an obstruction in each recess.
First Claim
Other Claims data not available
