Seismic base isolation by electro-osmosis during an earthquake event
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 21, 2004
Grant Date -
Mar 11, 2004
app pub date -
Sep 5, 2002
filing date -
Sep 5, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

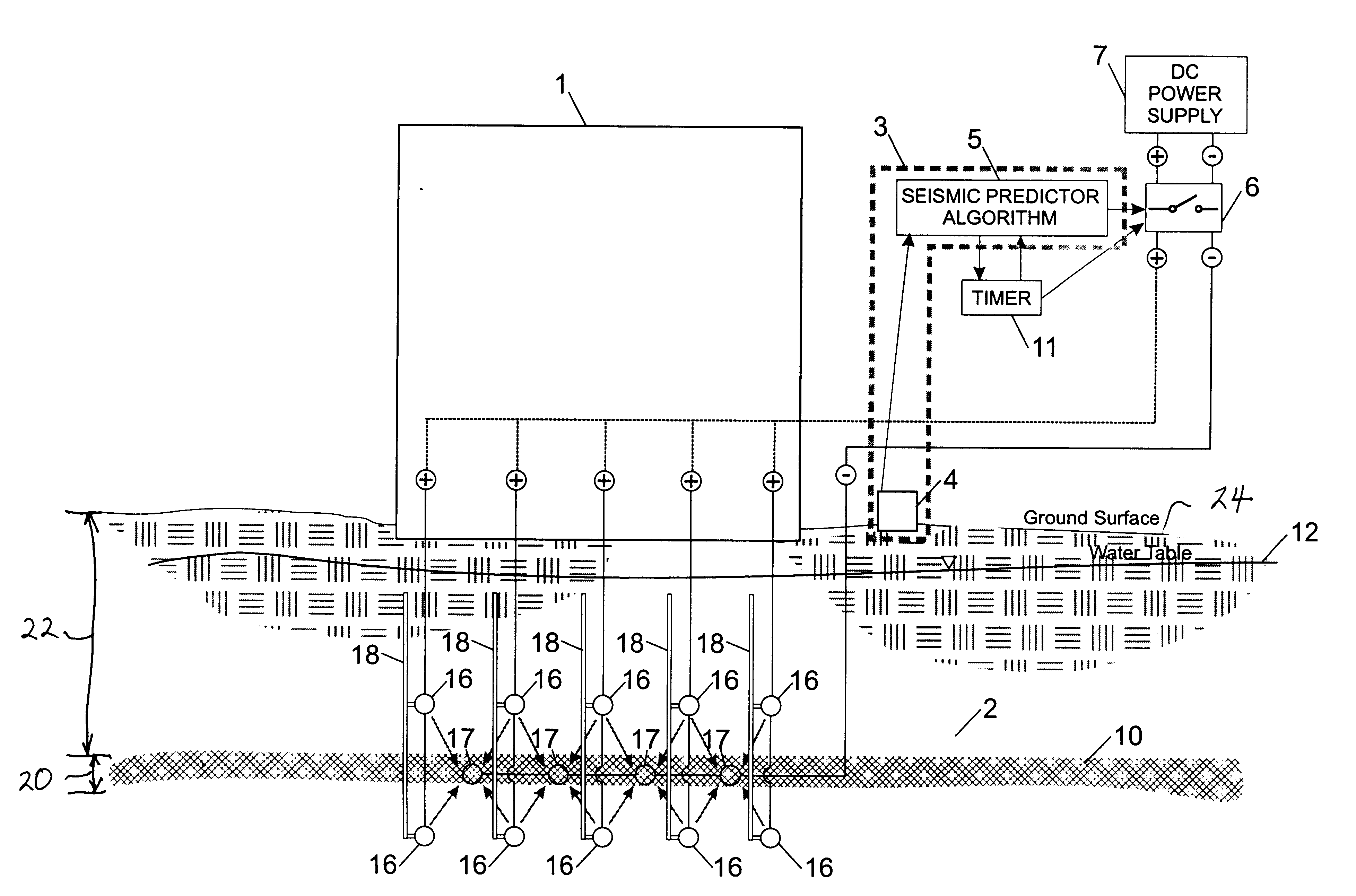

A method and system of isolating a structure and soil mass from earthquake induced vibration by inducing soil liquefaction beneath a structure during an earthquake event, by monitoring local seismic precursor events, such as early arrival ground motion using an accelerometer, predicting the onset of a major earthquake tremor and energizing conductors in the ground by a dc power source for moving the ground water by electro-osmosis towards a suitable isolation layer, whereby raising the pore water pressure in the isolation layer and thus preferentially inducing localized soil liquefaction of the particular isolation layer during the earthquake event and thus isolating the structure and soil above the particular soil horizon from the upward propagating shear wave ground motions arising from the earthquake event.
First Claim
Other Claims data not available
