Robotic apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 7, 2004
Grant Date -
N/A
app pub date -
Jul 17, 2000
filing date -
Sep 18, 1998
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

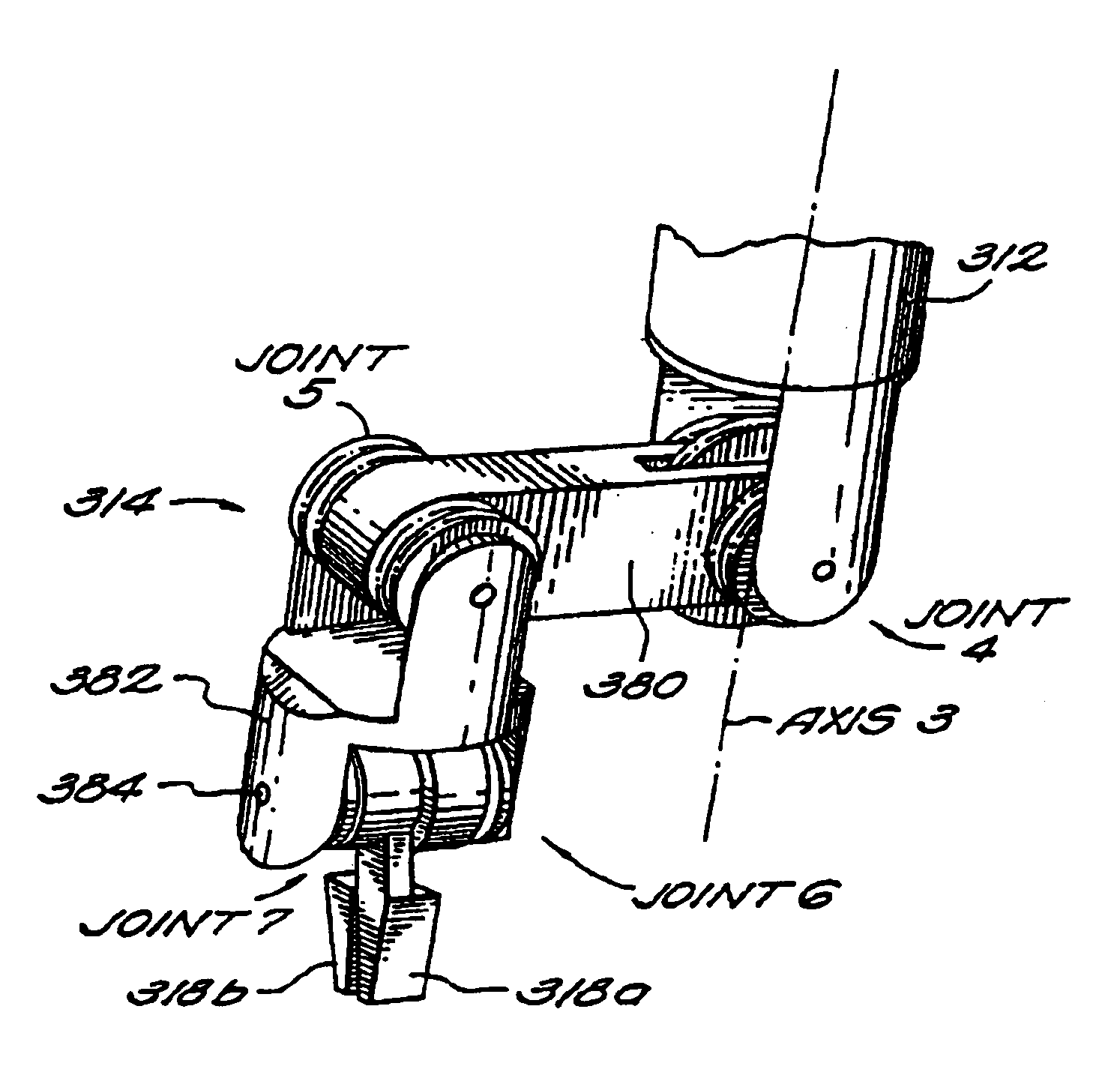

A robotic apparatus has eight actuators (M0-M7) and a linkage (LINK 0-LINK 5) that actuates an end effector. Three serial macro freedoms have large ranges of motion and inertias. Four serial micro freedoms have small ranges of motion and inertias. Translation of the end effector in any direction is actuated by at least one micro joint. The apparatus can be part of a master and slave combination, providing force feedback without any explicit force sensors. The slave is controlled with an Inverse Jacobian controller, and the master with a Jacobian Transpose controller. A slave having more degrees-of-freedom (DOFs) than the master can be controlled. A removable effector unit actuates its DOFs with cables. Beating heart surgery can be accomplished by commanding the slave to move with a beating heart, and cancelling out any such motion in the motions perceived by the master.
First Claim
Other Claims data not available
