Self-brazing materials for elevated temperature applications
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 31, 2004
Issued Date -
N/A
app pub date -
Oct 12, 2001
filing date -
Oct 16, 2000
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

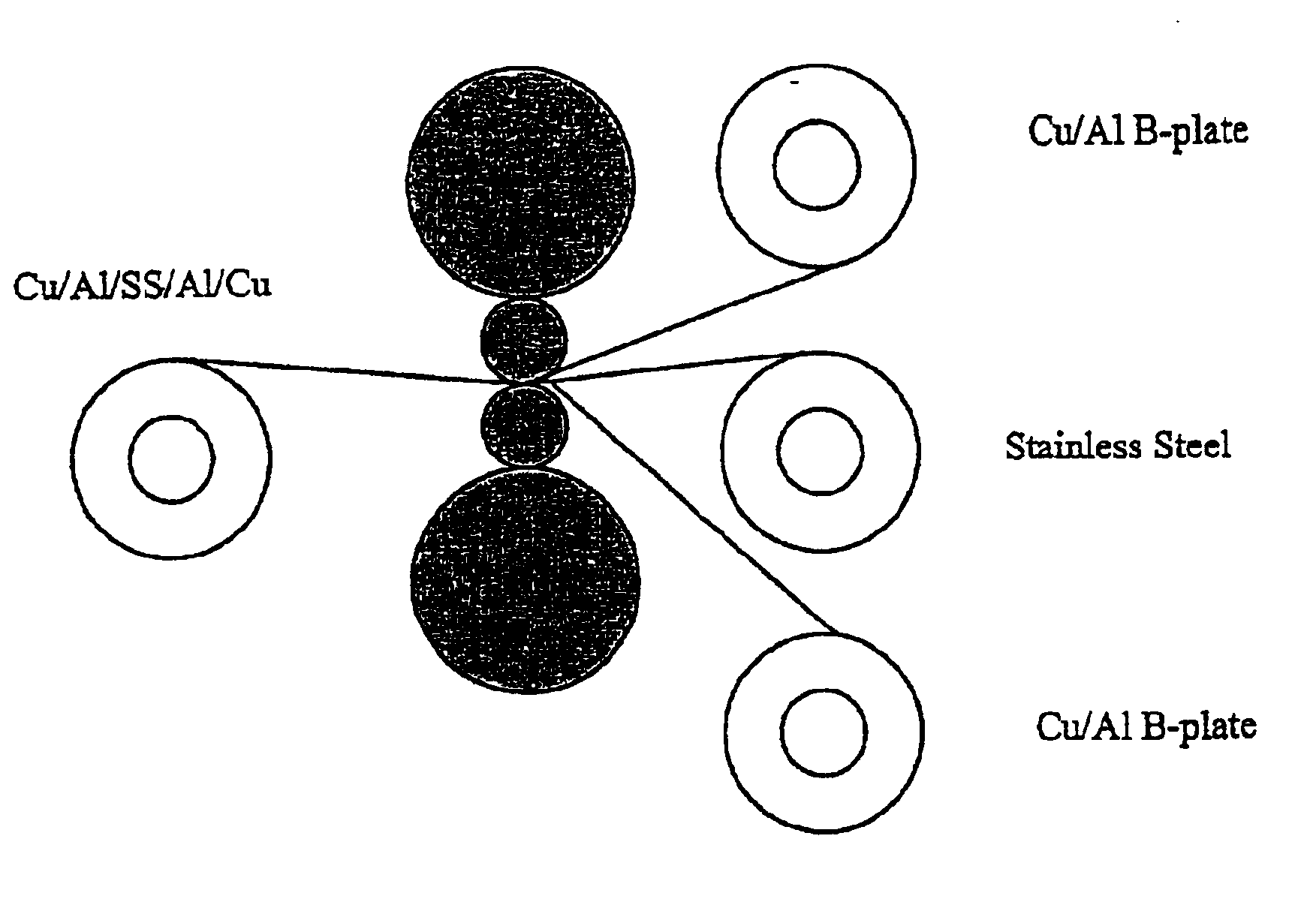

This invention describes the roll bonding of Al and Ni-bearing Cu alloys to suitable substrates to produce self-brazing materials for the elevated temperature, aggressive environment application. The Al and Ni-bearing Cu alloy for the self-brazing layers can be obtained by cladding layers of elemental Ni and Al to Cu. The Al content in the self-brazing layers can be varied from 2 to 100%. The Ni content in the self-brazing Cu alloy can be varied from 10 to 100%. Additional alloying elements in the commercial Cu alloys such as Fe, Cr, Si, Mn, Sn and Zn are unavoidable. Trace elements in the commercial alloys such as Pb, Ag and As will also affect the brazing and shall be reduced.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B23K Class
- 5.37 % this patent is cited more than
- 21 Age
