Optical assembly with a detector and a laser
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 24, 2004
Grant Date -
May 29, 2003
app pub date -
Oct 22, 2002
filing date -
Oct 30, 2001
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

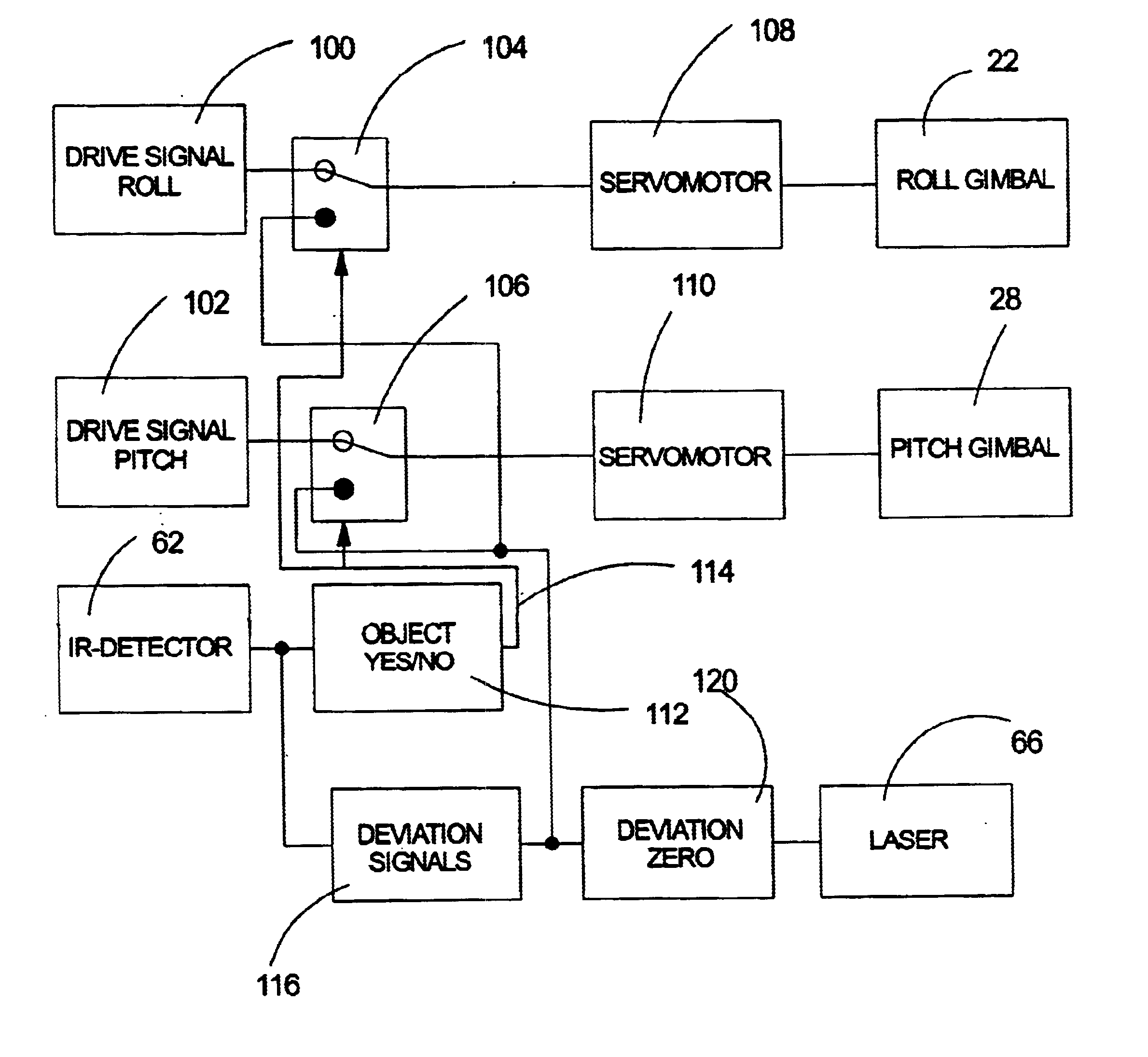

A device for detecting attacking guided missiles with optical seeker head and for generating a laser beam directed to such guided missile has an all-around seeker with a detector responding to thermal radiation from the guided missile, and a laser which points to the guided missile detected by the all-around seeker. A roll and pitch gimbal system is provided. A roll gimbal is rotatable relative to the structure about a roll axis. A pitch gimbal is rotatable relative to the roll gimbal about a pitch axis orthogonal to the roll axis. The detector is structure-fixed. An imaging optical system is mounted on the roll and pitch gimbal system. The optical system with its optical axis can point to an object scenario. With each position of the gimbal system, an image of this object scenario is generated on the detector. The laser is also structure-fixed. A laser reflecting surface system is provided on the gimbal system, by means of which the laser beam is kept parallel to the optical axis of the imaging optical system, with each position of the gimbal system. Both the path of rays of the imaging optical system and the laser beam comprise a respective section extending along the pitch axis and a section extending along the roll axis.
First Claim
Other Claims data not available
