Device for separating warp yarns on a face-to-face weaving machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 3, 2004
Grant Date -
Nov 14, 2002
app pub date -
Apr 22, 2002
filing date -
Apr 20, 2001
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

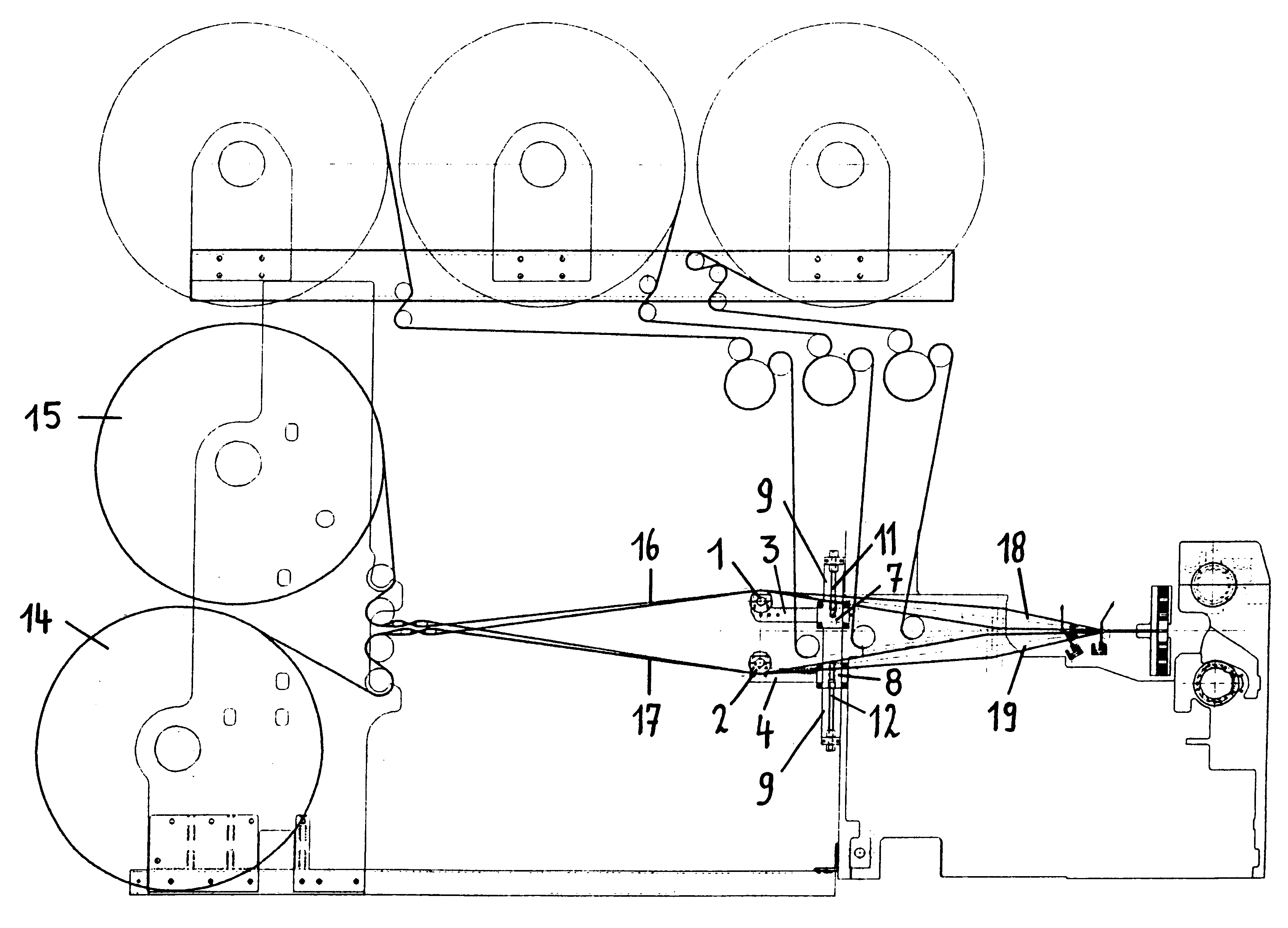

A device for separating warp yarns (16), (17) on a face-to-face weaving machine (13), comprising a separating means (1), (2) and a holding device (3,7,9,11), (4,8,9,12) which comprises a threaded adjusting means (11), (12), the adjusting means (11), (12) being provided in such a manner that its rotation will cause the separating means (1), (2) to be moved, because of which the holding height will be changed and adjusted and the adjusting means (11), (12) being able to maintain the adjusting means (1), (2) at the adjusted holding height. Moreover, the holding device (3,7,9,11), (4,8,9,12) will enable an adjustment in the warp-direction. With a similar device adjusting the holding height can be carried out in a very simple and accurate manner and whilst being adjusted the separating means (1), (2) will be unable to make any unwanted and dangerous movements.
First Claim
Other Claims data not available
