Waste outlet fitting for a sanitary appliance, in particular a urinal
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 6, 2004
Grant Date -
Aug 14, 2003
app pub date -
Feb 10, 2003
filing date -
Feb 11, 2002
priority date (Note) -
Expired
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

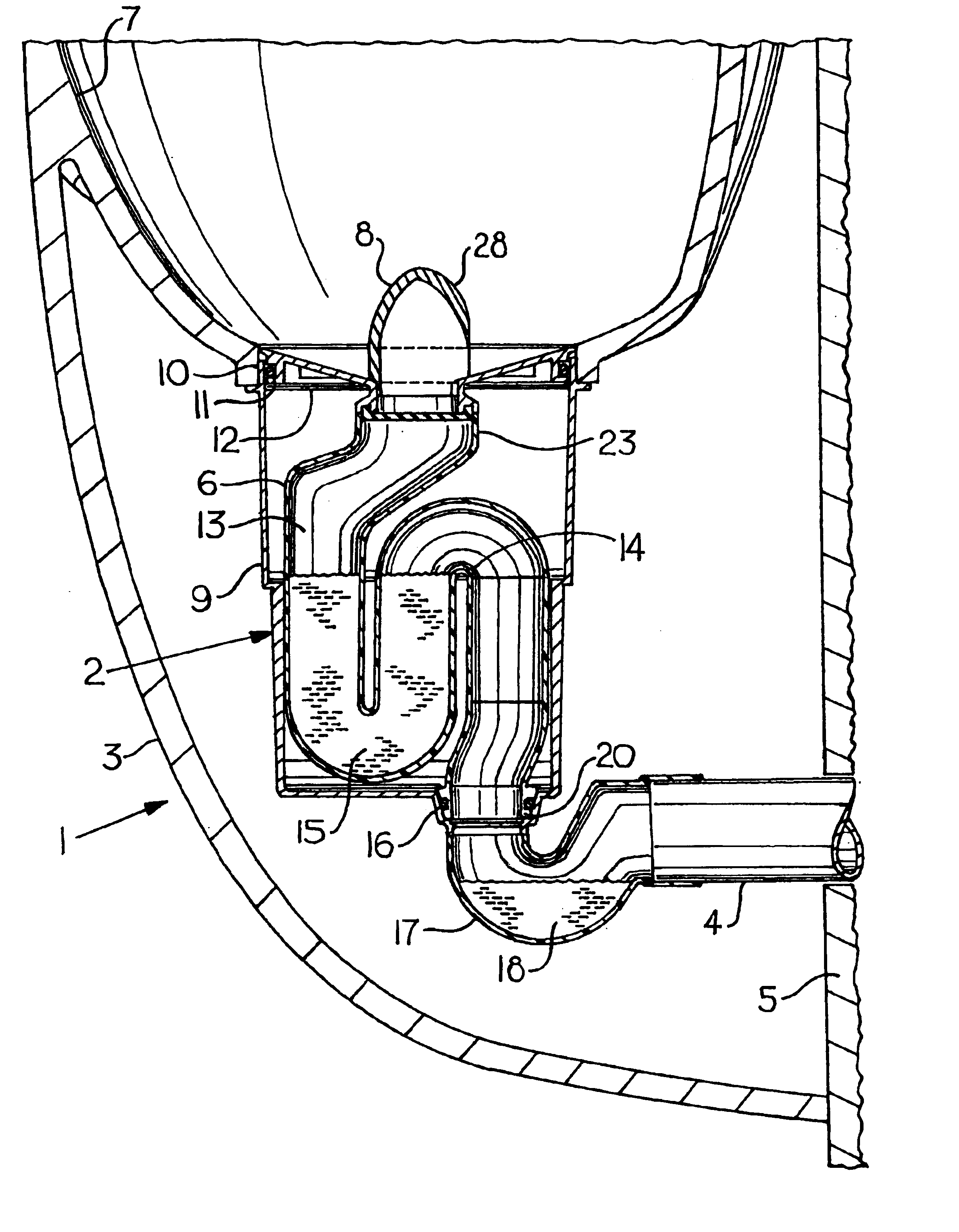

A waste outlet fitting having a siphon which is mounted in a cup-shaped housing. The siphon has an inlet and an outlet and is inserted into the housing from above. For cleaning and maintenance, the siphon can be removed upwardly and subsequently re-inserted from above. Arranged at the inlet of the siphon is an inflow funnel which can likewise be installed and removed from above. The waste outlet fitting makes especially simple cleaning and maintenance of the waste outlet fitting and of the soil pipe possible.
First Claim
all claims..Other Claims data not available
Family
Country | kind | publication No. | Filing Date | Type | Sub-Type |
---|---|---|---|---|---|
EP | B1 | EP1335076 | Feb 11, 2002 | Patent | Grant |
Type : Patent Sub-Type : Grant | |||||
Patent | Ablaufarmatur für eine Sanitärvorrichtung, insbesondere Urinal | Jun 01, 2005 |
- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
GEBERIT TECHNIK AG | SCHACHENSTRASSE 77 JONA CH-8645 |
International Classification(s)
- Non-US Classification not provided for expired patents
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Hogger, Roland | Rapperswil, CH | 1 | 6 |
# of filed Patents : 1 Total Citations : 6 |
