Radiation power limiter
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 8, 2004
Grant Date -
N/A
app pub date -
Feb 12, 1988
filing date -
Feb 12, 1988
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

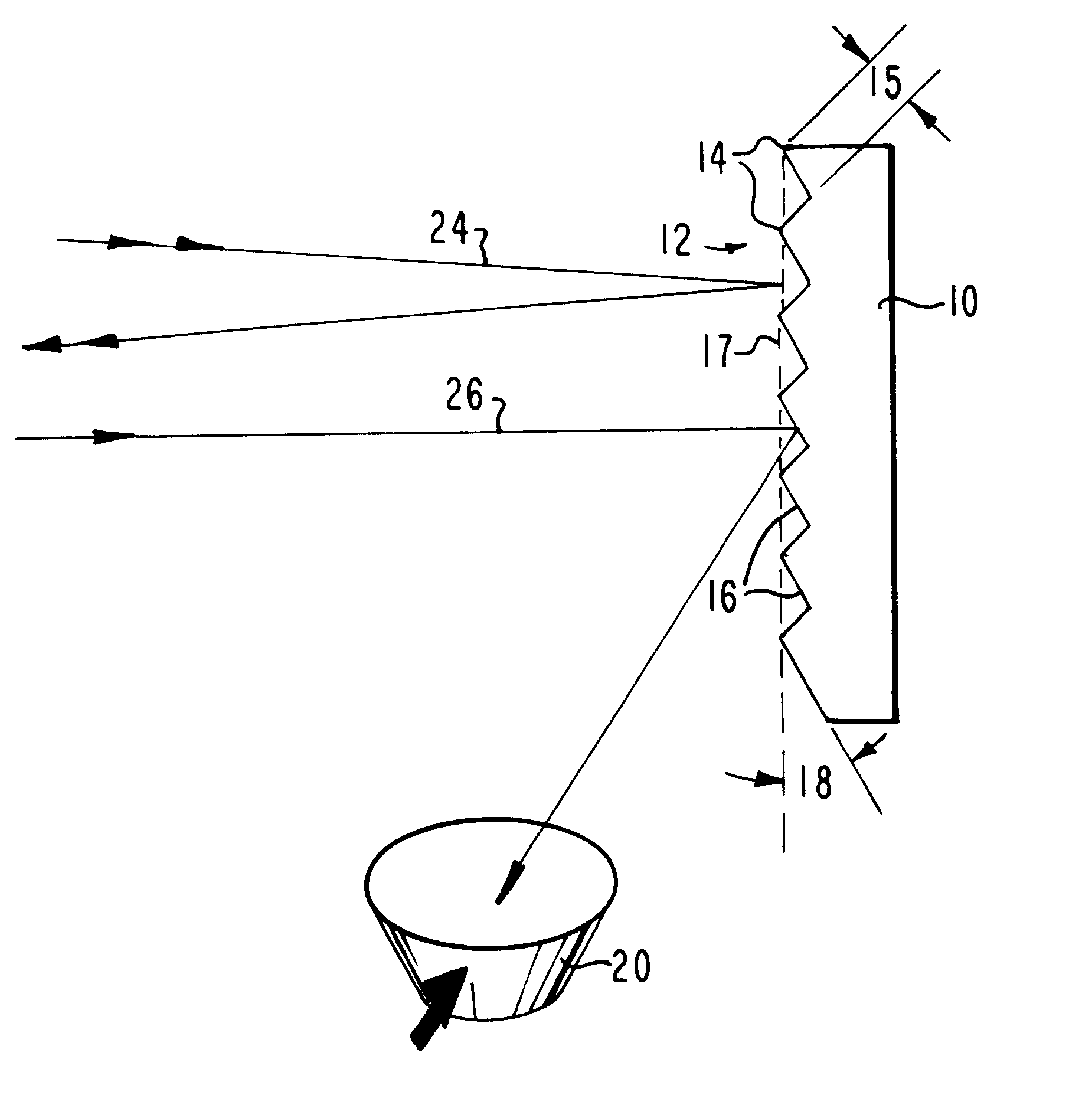

Disclosed herein is an arrangement for shielding electronic sensors from undesired microwave or millimeter wave radiation. In this arrangement, reflective element is disposed in the sensor path to intercept incoming signals. The reflective element has a pluraity of adjacent parallel ridges therein having sloped faces angled for reflecting incoming desired infrared radiation onto the sensor. The width of the ridges are selected so that desired signals will be reflected by the sloped ridge faces but undesired microwave or millimeter radiation will be reflected by the overall major surface of the mirror. Accordingly, undesired microwave or millimeter radiation will be reflected away from the sensor by the overall front major surface thereby preventing the sensor from being damaged.
First Claim
Other Claims data not available
