Automatic milling and drilling machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 8, 2004
Grant Date -
Mar 13, 2003
app pub date -
Aug 29, 2002
filing date -
Sep 11, 2001
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

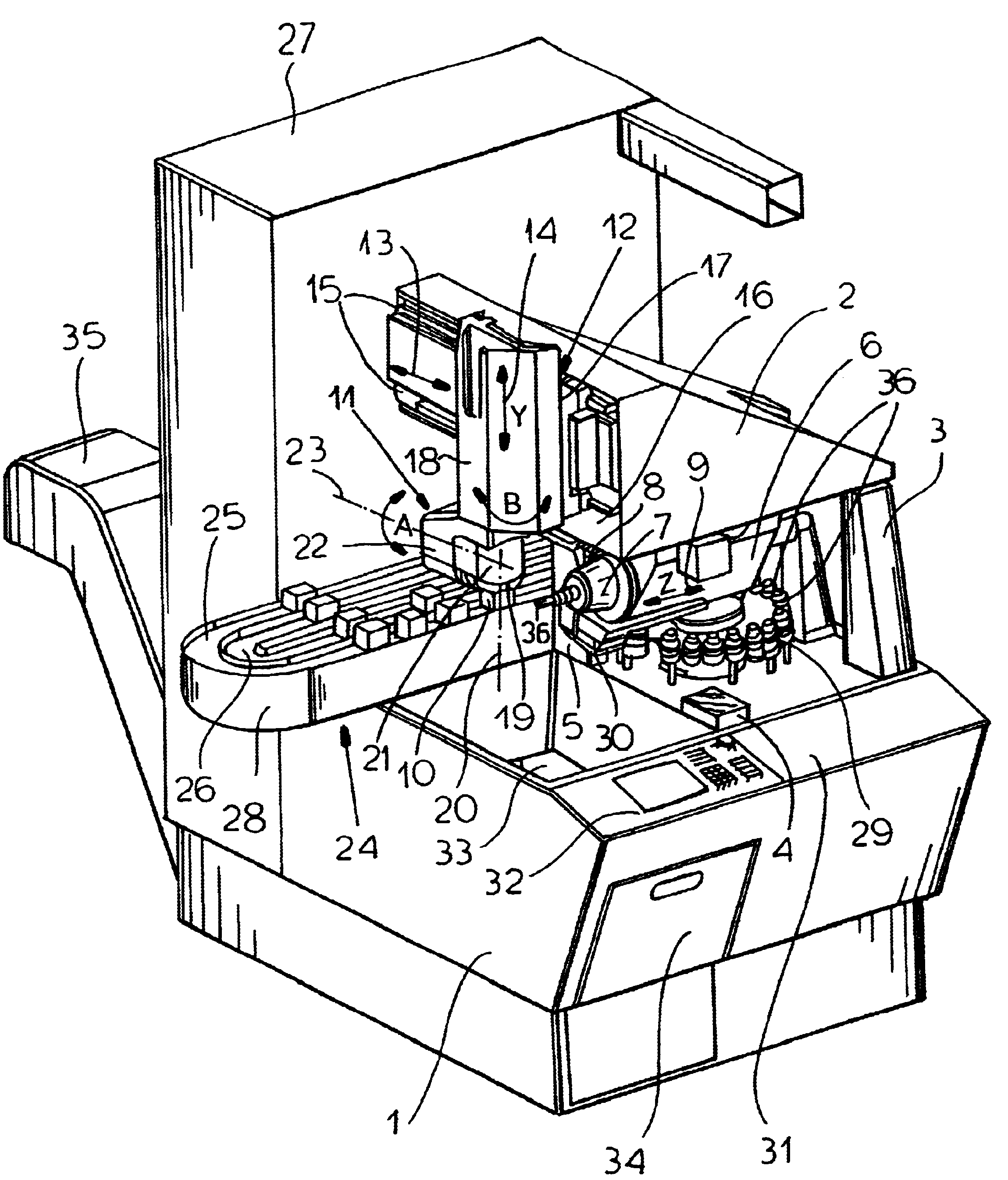

A machining apparatus has a lower housing part, an upper housing part having a lower side, and a plurality of support posts fixed to the upper and lower parts and holding the upper part fixedly at a spacing above the lower part. A tool holder displaceable parallel to a horizontal tool axis on the lower side of the upper housing part carries a chuck rotatable about the tool axis and can hold a machining tool. A supply station on the lower part offset horizontally perpendicular to the tool axis from the tool holder is can hold a plurality of the workpieces. A cross slide connected between the upper housing part and a workpiece chuck displaces the workpiece chuck in a horizontal direction perpendicular to the tool axis and in a vertical direction to displace a workpiece between the station and a position aligned on the tool axis with the tool chuck.
