Combustion engine having exhaust gas recirculation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 1, 2004
Grant Date -
N/A
app pub date -
Dec 28, 2001
filing date -
Jun 30, 1999
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

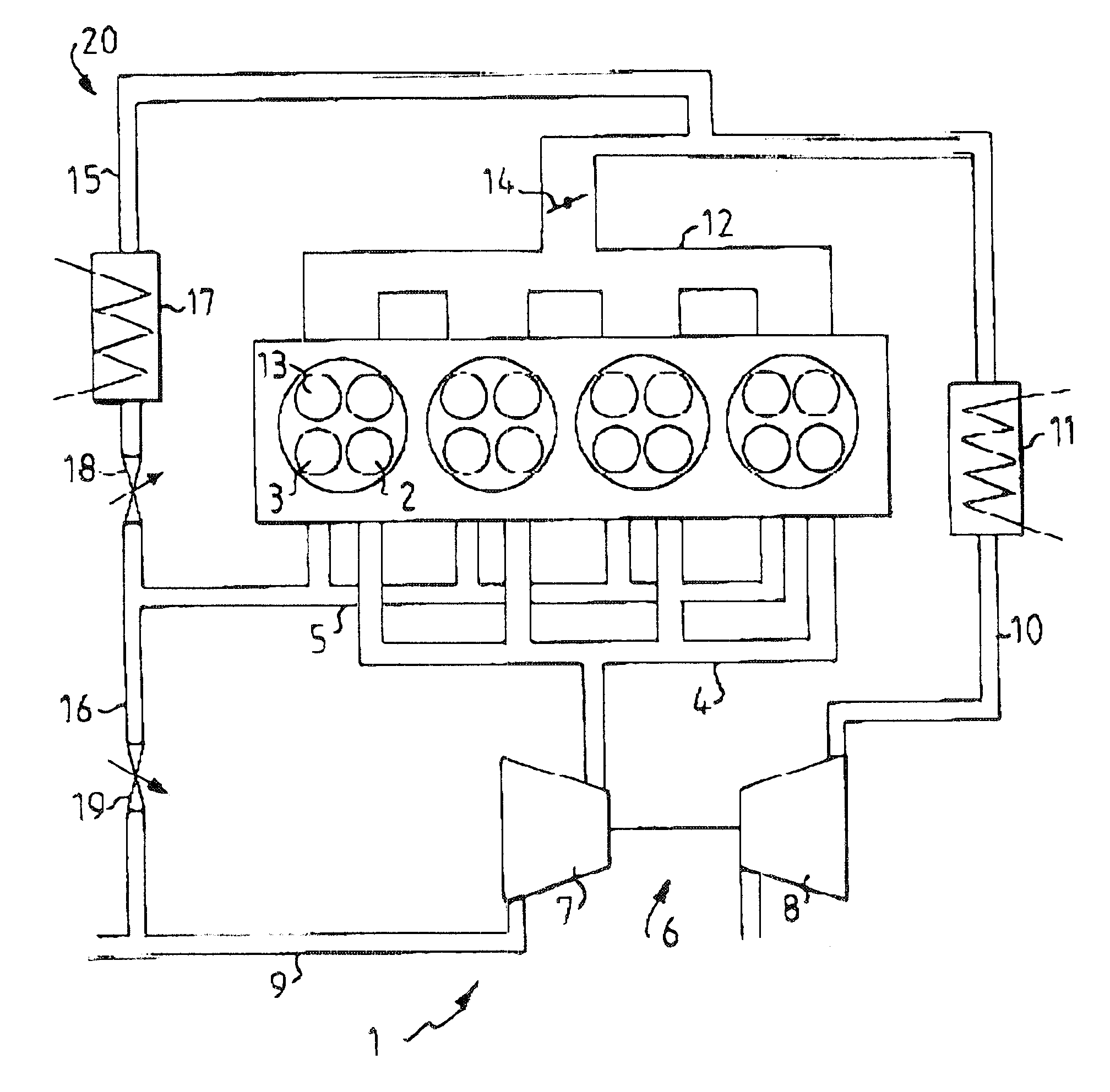

A combustion engine having an exhaust-gas driven turbo compressor is provided with a device for recirculating exhaust gases to the engine, this device being connected to the exhaust system of the engine upstream of the turbo compressor and being provided with a cooling device for the recirculated exhaust gases. The engine is provided with at least two exhaust valves per cylinder and has divided exhaust gas flow, each cylinder being connected by a first exhaust valve to a first exhaust collector, which leads to the turbine of the turbo compressor, and each cylinder being connected by a second exhaust valve to a second exhaust collector, which is connected to the exhaust system of the engine downstream of the turbine. The second exhaust collector forms part of the device for recirculating exhaust gases to the engine and is also connected to the inlet of the engine.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | B2 | JP4565605 | Jun 29, 2000 |
| WO | A1 | WO2001000981 | Jun 29, 2000 |
International Classification(s)
- 2001 Application Filing Year
- F02B Class
- 682 Applications Filed
- 237 Patents Issued To-Date
- 34.76 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 137 Citation Count
- F02B Class
- 99.67 % this patent is cited more than
- 21 Age
