RF amplifier system having improved power supply
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 18, 2004
Grant Date -
Jan 1, 2004
app pub date -
Jun 27, 2002
filing date -
Jun 27, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

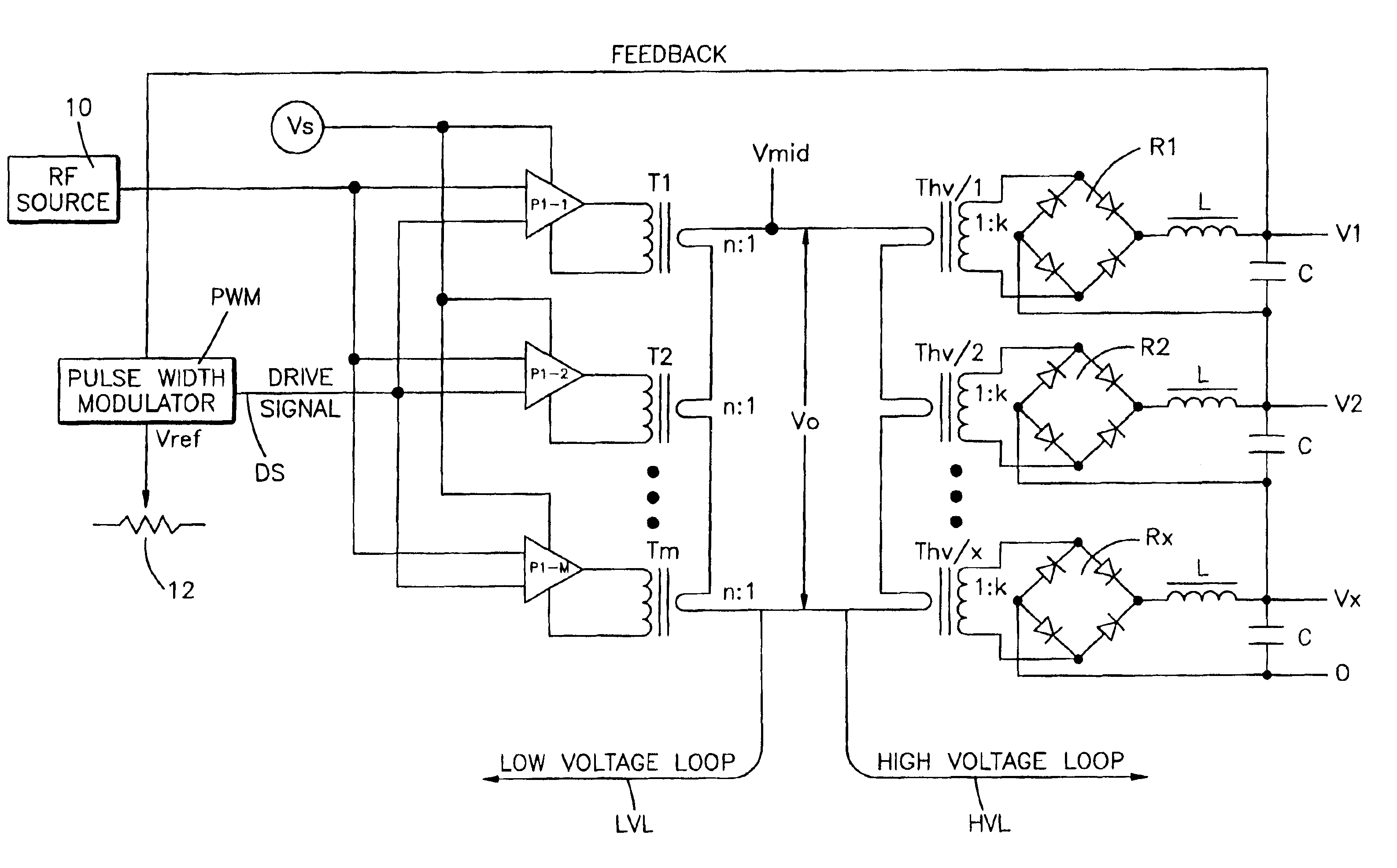

An RF amplifier system having improved power supply is presented and which includes a plurality of power amplifiers each having an output circuit for connecting a DC voltage source to one of a plurality of primary windings located on a first transformer. The first transformer has a plurality of secondary windings located thereon with each being a single turn secondary winding. The secondary windings are connected together in series. A second transformer is located in a cascaded arrangement with the first transformer and has a like plurality of single turn primary windings connected together in series and a like plurality of secondary windings are on said second transformer with each being connected to a rectifier for providing a controlled DC voltage.
