Cell design for a trawl system and methods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 11, 2004
Grant Date -
May 22, 2003
app pub date -
Nov 3, 2001
filing date -
Apr 14, 1997
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

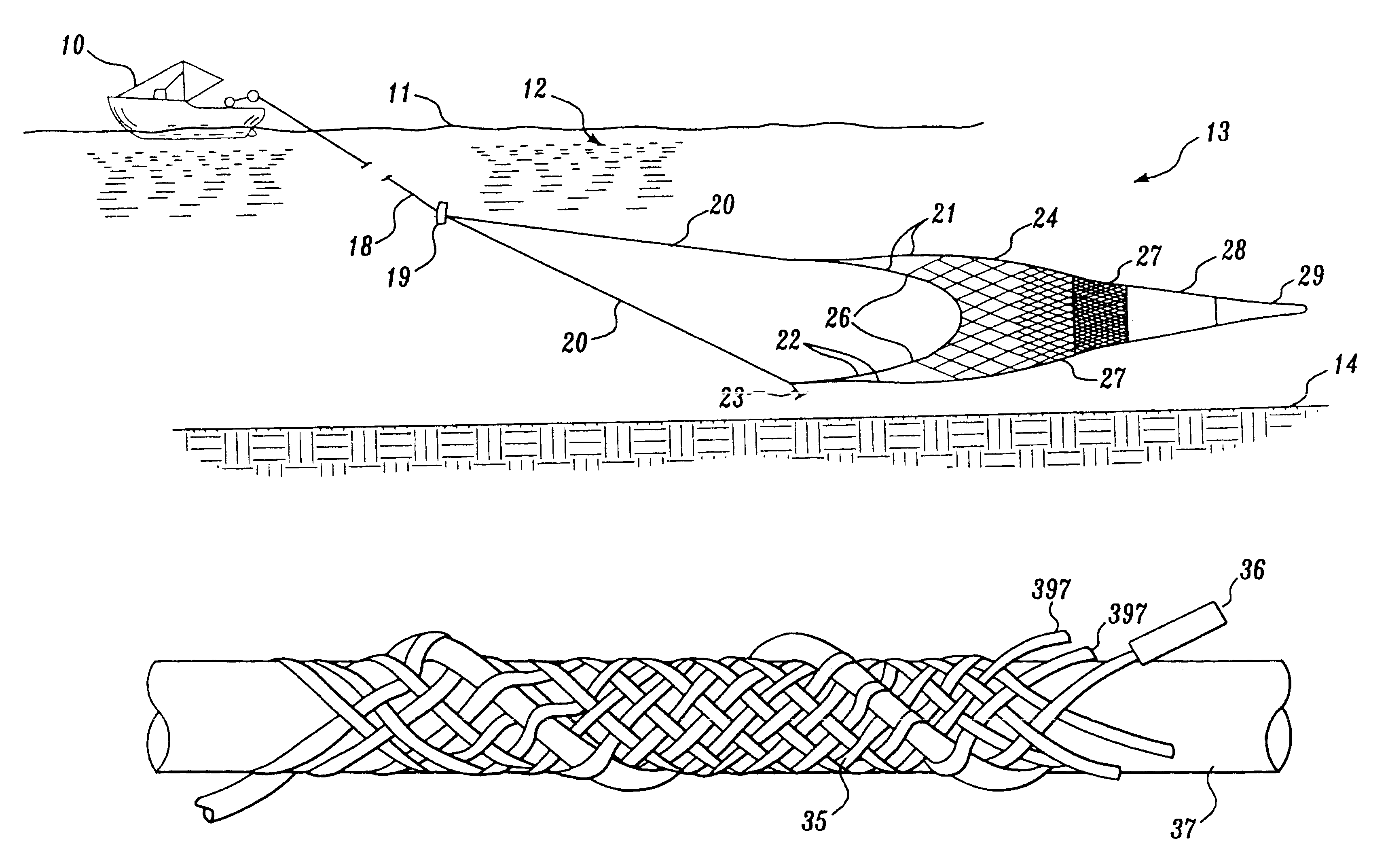

Mesh bars (35, 283) of a trawl (13, 263) include at least a portion having a corkscrew-shaped pitch which exhibits a hydrofoil-like effect. Such mesh bars (35, 283) are preferably formed from a material having a substantially incompressible cross-sectional shape. By appropriately selecting the lay and leading edge of mesh bars (35, 283), movement of the trawl (13, 263) through the water entrained environment creates a pressure differential and lift across that portion of mesh bars (25, 283) which exhibit the hydrofoil-like effect. The lift thus created increases performance characteristics of the trawl (13, 263) including increased trawl volume, improved trawl shape, and reduced vibration, noise, and drag. Obtaining the greatest improvement of trawls (13, 263) requires controlling a pitch range for twisted product strands (e.g. twisted ropes) (36, 37), and for straps (284) forming mesh bars (35, 283). For straps (284), control of a width to thickness ratio also significantly affects performance of the trawl (13, 263).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- A01K Class
- 2.53 % this patent is cited more than
- 21 Age
