Device for the application of fluid materials to a surface of a strip material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 4, 2004
Grant Date -
May 15, 2003
app pub date -
Dec 26, 2002
filing date -
Mar 10, 2000
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

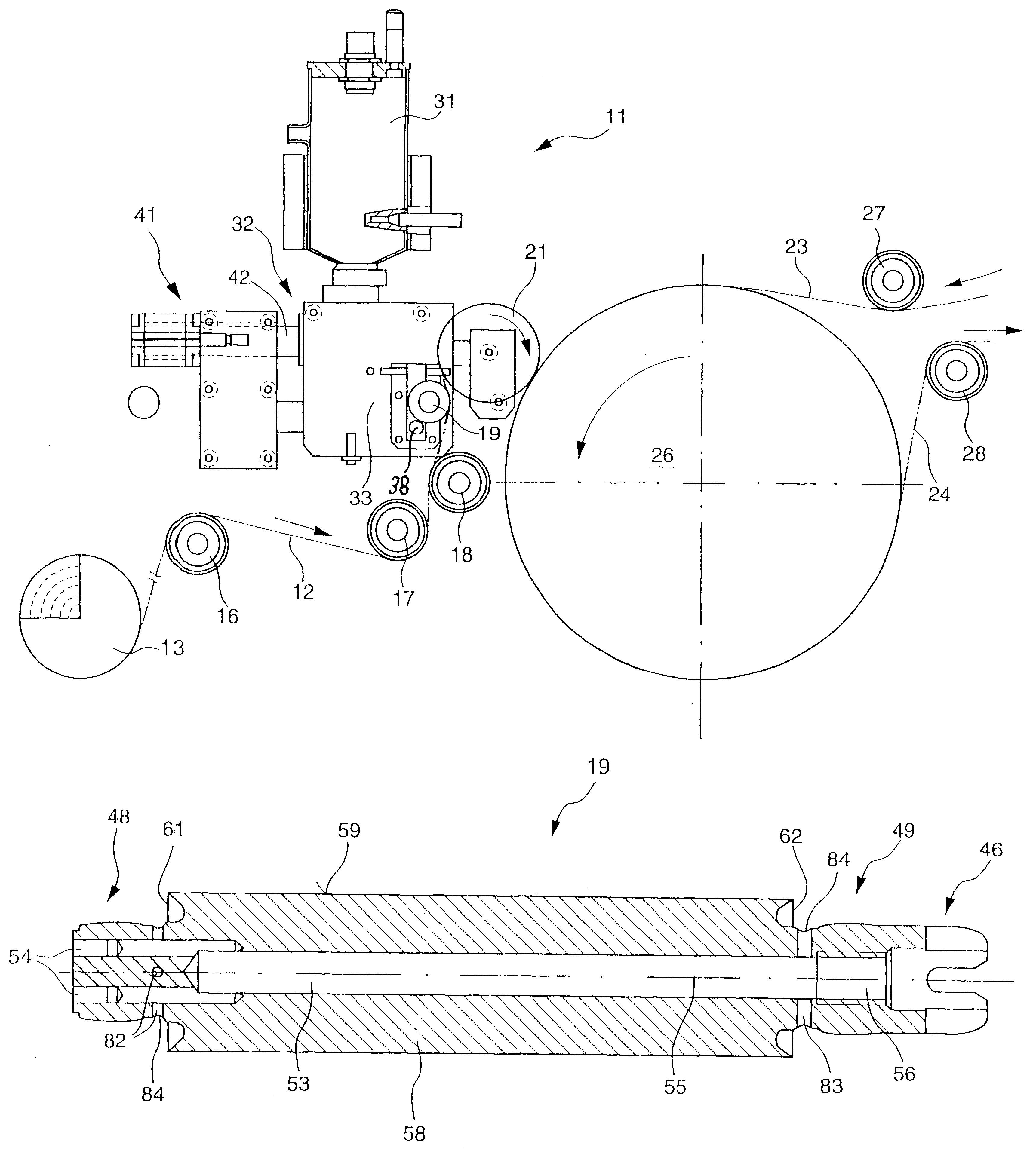

The invention relates to a device for the application of fluid materials to a surface of a sheet-form material, comprising an application roller, with a roller body and a jacket surface, which, by means of at least partial contact with the sheet-form material, transfers the fluid materials leading to the sheet-form material. The invention further comprises an application doctor blade, with a pre-dosing channel for the supply of fluid materials leading thereto and which at least partly coats the application roller with fluid material. A flow of a medium is provided in at least one region adjacent to the jacket surface, which is directed from the longitudinal mid-axis of the application roller to the outside.
First Claim
Other Claims data not available
