Relaxation CCO for PLL-based constant tuning of GM-C filters
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 27, 2004
Grant Date -
N/A
app pub date -
Oct 29, 2002
filing date -
Oct 29, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

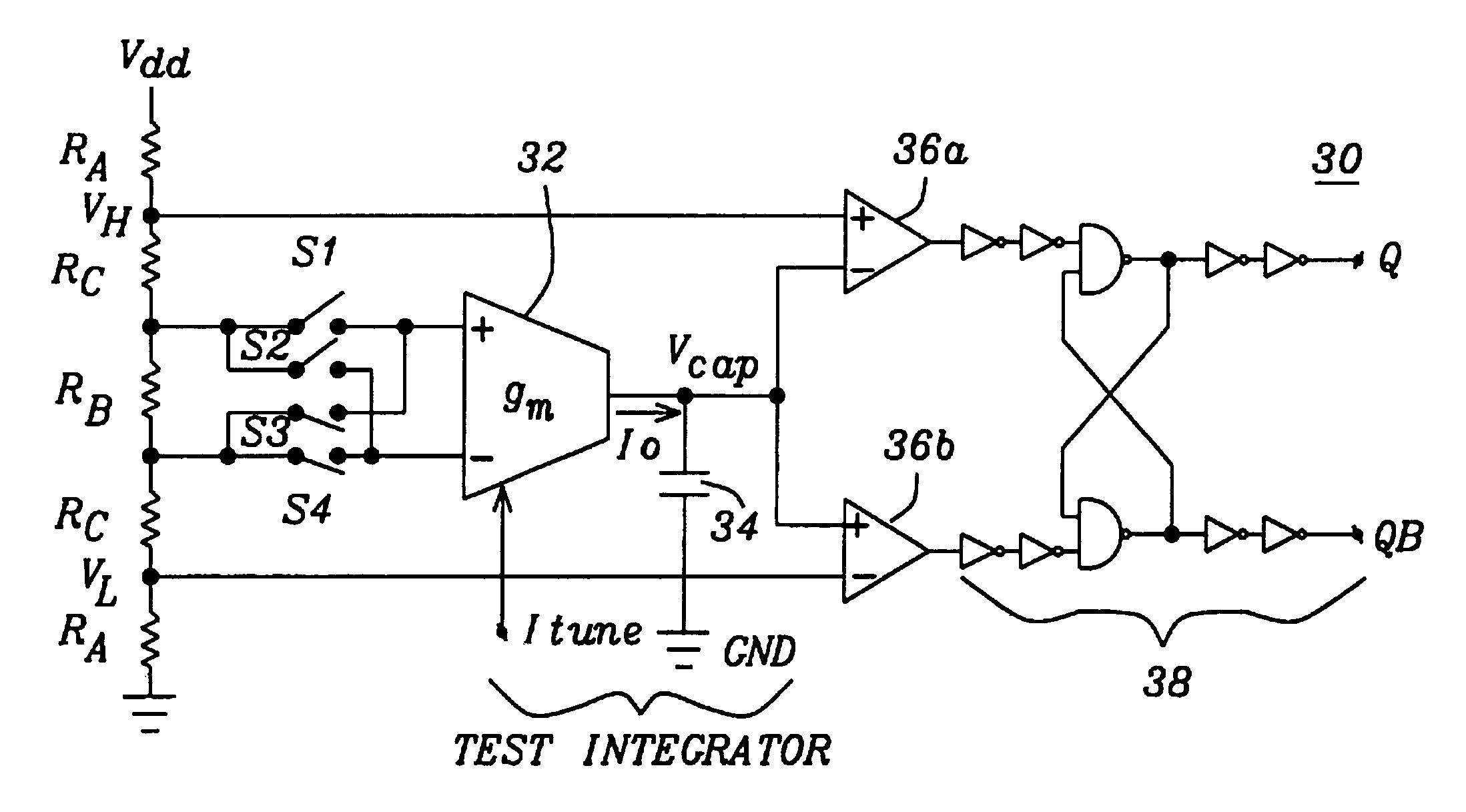

A relaxation current controlled oscillator (CCO) is provided by forming an integrator out of a transconductance amplifier and a capacitor. The output of the integrator is fed to comparators which in turn feed a bistable circuit. The outputs of the bistable circuit control either the polarity of the input signals to the transconductance amplifier or the polarity of the input signals to the comparators. Switches, controlled by the bistable circuit, in turn control the polarity of the input signals. The feedback path created by the transconductance amplifier, comparators, flip-flops, and switches produces continuous oscillations. A DC current input adjusts the g.sub.m of the transconductance amplifier allowing the oscillation frequency of the CCO to be adjusted. Several embodiments of CCOs are described which are fully compatible with PLLs with automatic time-constant or bandwidth tuning of a gm-C filter.
First Claim
Other Claims data not available
