Envelope for packaging at least one article, the envelope being of the type constituted by a sleeve of heat shrink plastic material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 20, 2004
Grant Date -
Sep 11, 2003
app pub date -
Dec 17, 2002
filing date -
Jun 30, 2000
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

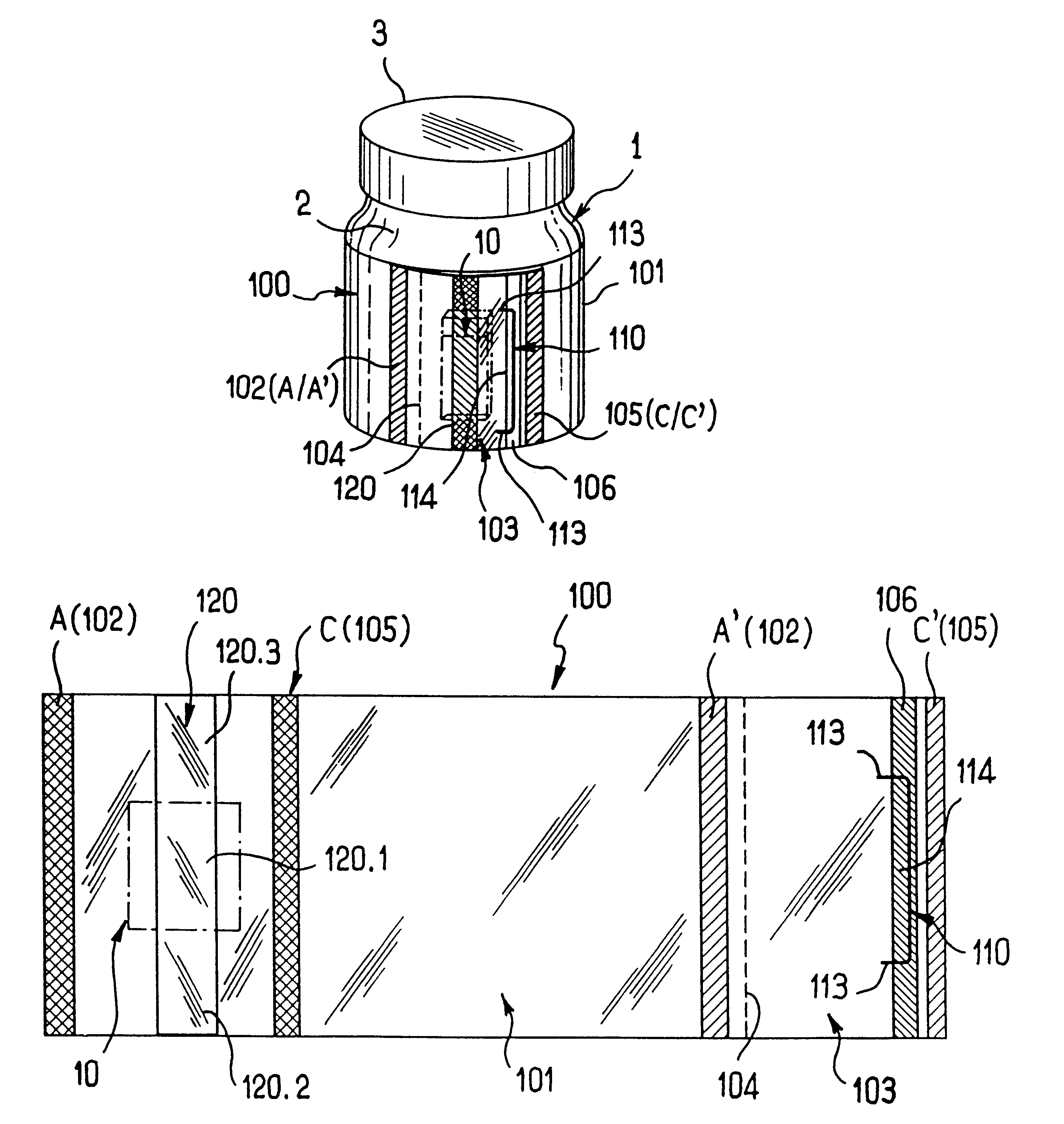

The invention relates to an envelope (100) for packaging at least one article, the envelope being of the type constituted by a sleeve of heat-shrink plastics material having a main portion (101) suitable for encapsulating at least a portion of the article or a group of articles, said sleeve also having an additional flap (102) overlapping the outside of the sleeve and connected to the main portion (101) of the sleeve via two parallel lines of heat sealing (102, 105) at its lateral ends, said flap having a panel-forming portion (115) which is detachable by being torn off. In accordance with the invention, at least one adhesive strip (120) extending along a generator line of the sleeve is provided on the outside face of the main portion (101) or on the inside face of the additional flap (103), said strip serving to retain a flat item (10) in the pocket formed by said additional flap, in such a manner that said item is held captive behind the detachable panel (115) and is recoverable once said panel has been detached.
First Claim
Other Claims data not available
Family
International Classification(s)
- Non-US Classification not provided for expired patents
Cited Art Landscape
Patent Citation Ranking
- Citation Ranking not provided for expired patents
