Motor housing and pole-well, in particular for electric window or sunroof motors
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 30, 2004
Grant Date -
N/A
app pub date -
Apr 29, 2002
filing date -
Feb 19, 2000
priority date (Note) -
Expired
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

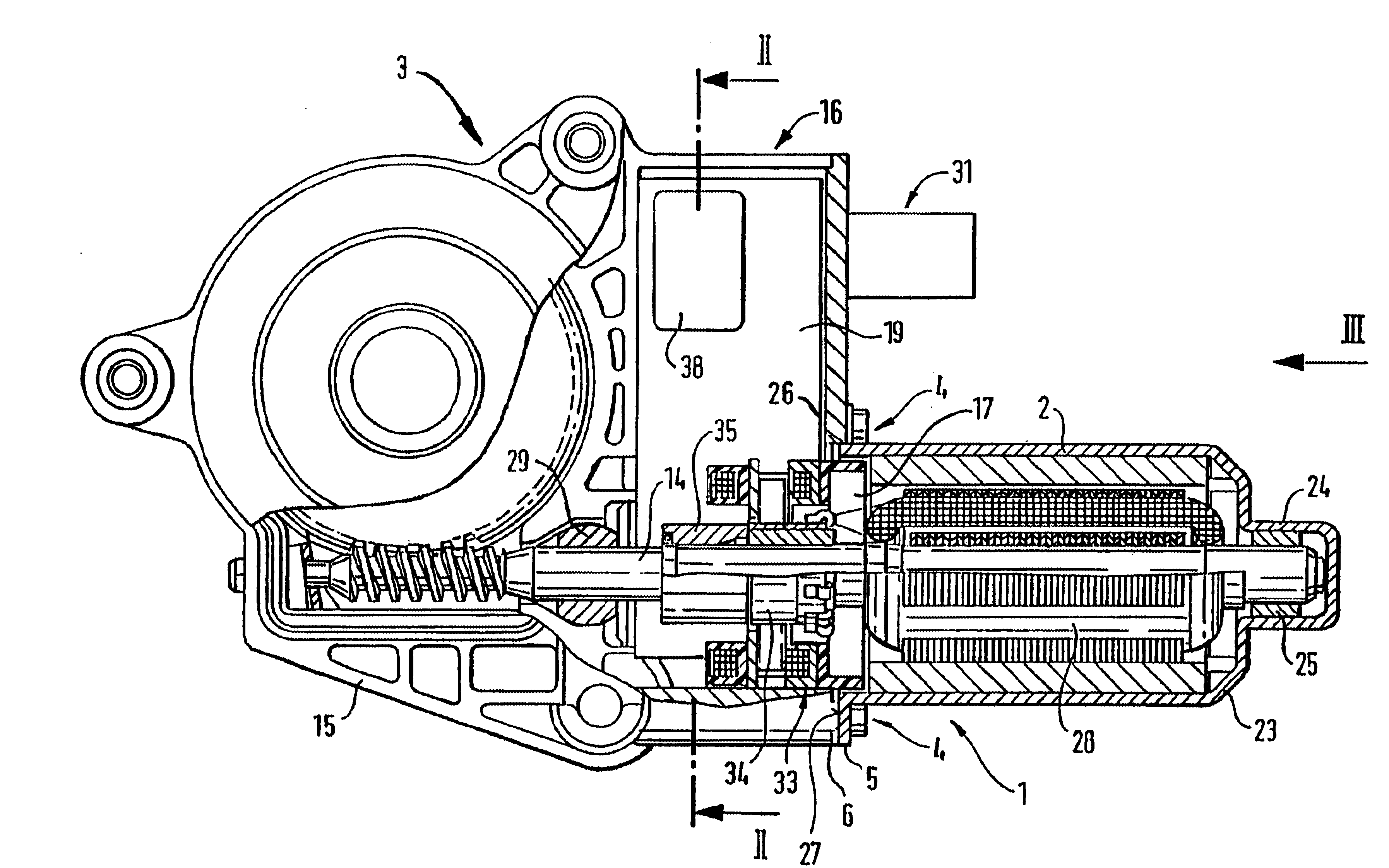

The invention pertains to a motor housing (1) as well as a pole cover (2), especially for window lift or sunroof motors, having at least one pole cover (2) and a housing (3) closing off the pole cover, which are fastened together using fasteners (4), whereby the pole cover (2) has multiple receptacles (5) for the fasteners (4), and the housing (3) closing off the pole cover has multiple counterreceptacles (6) for the fasteners (4) and for differing housings (3) which close off the pole cover differing receptacles (5) on the pole cover (2) cooperate with the counterreceptacles (6) by fasteners (4).
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 11 Citation Count
- H02K Class
- 51.81 % this patent is cited more than
- 21 Age
