Direct drive inside-out brushless roller motor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 23, 2004
Grant Date -
N/A
app pub date -
Feb 6, 2001
filing date -
Jun 11, 1998
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

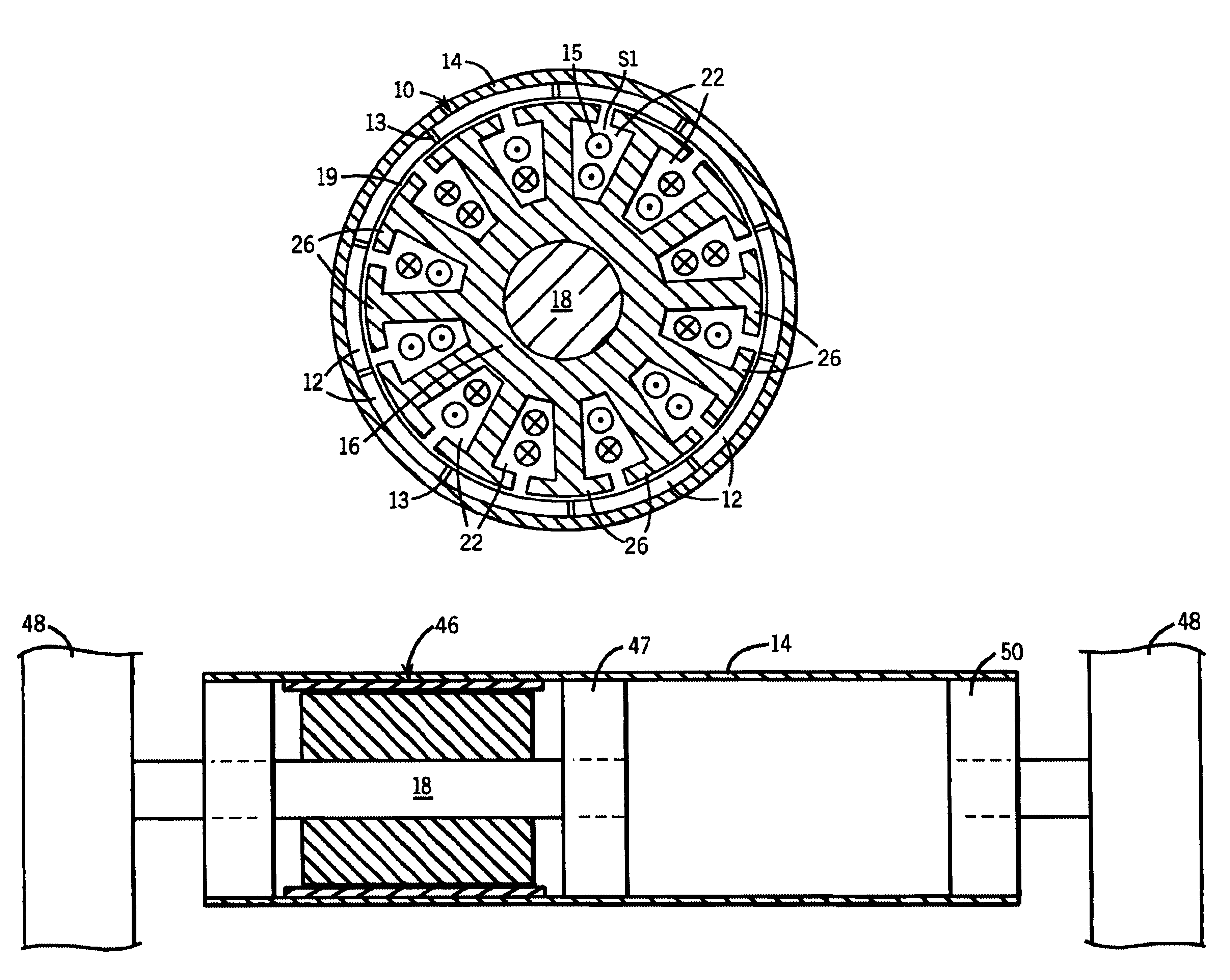

A brushless d.c. motor is integrated with a conveyor roller (14) by placing a plurality of stator coils (15) on a stationary shaft (18) and securing a rotor (10) with segments (12) of permanent magnetic material to the inside of the conveyor roller (14). In one embodiment the rotor (10) is directly secured to the roller while in a second embodiment, the rotor (10) is disposed inside of a cylindrical metal housing (40) that is press fit inside of the roller. Commutation is provided by an external motor controller (54) which is connected by conductors (37) through a passageway (36) in the shaft (18) to a circuit board (20), where sensors (23) are mounted to sense rotor position for purposes of commutation of the stator coils (15).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 44 Citation Count
- H02K Class
- 95.02 % this patent is cited more than
- 21 Age
