System and method for heterodyning an ultrasonic signal
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 16, 2004
Grant Date -
N/A
app pub date -
Nov 12, 2002
filing date -
Nov 12, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

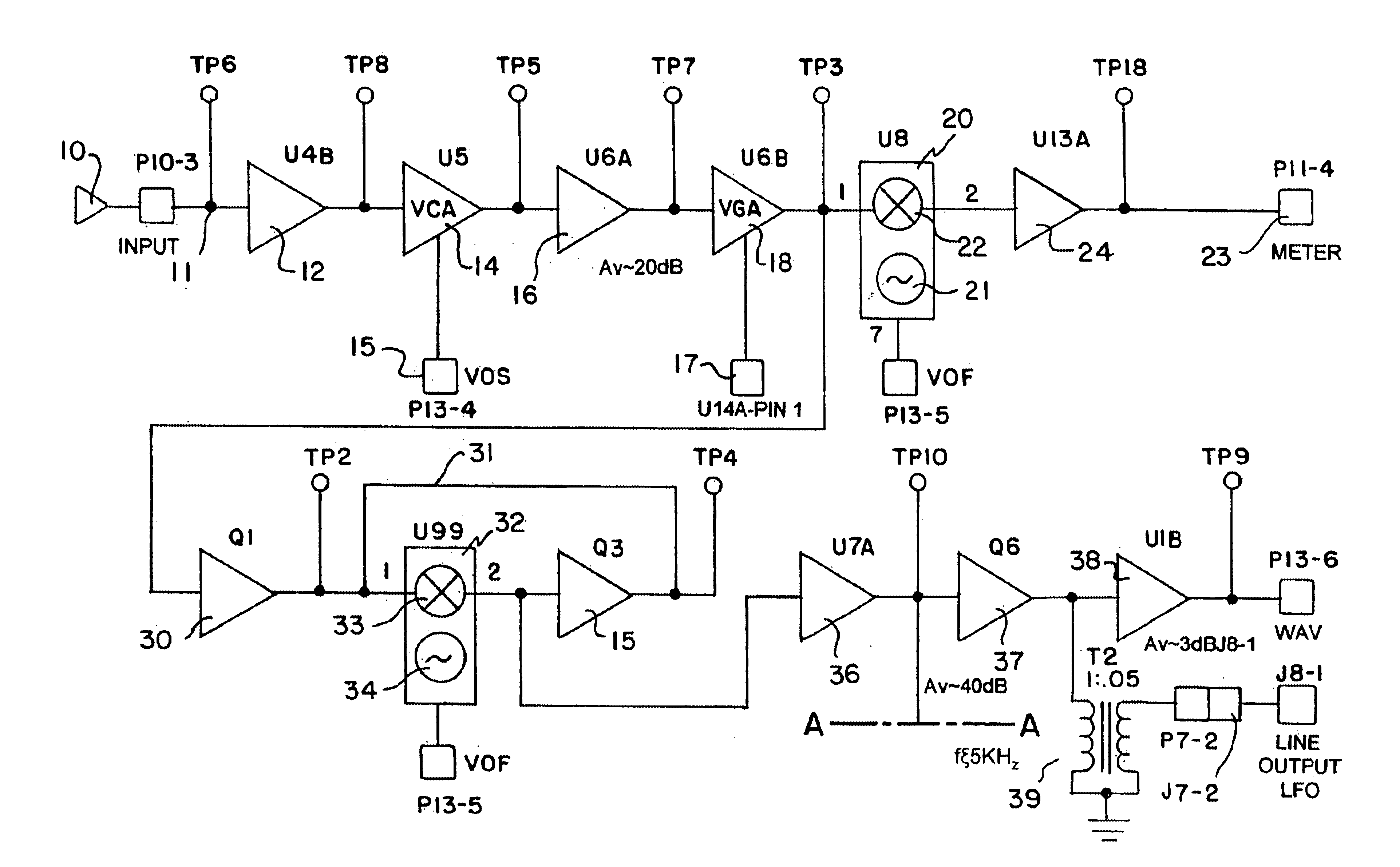

A method and apparatus for detecting leaks and mechanical faults by way of an ultrasonic device. An output from a variable gain amplifier is supplied to a pair of heterodyning circuits, i.e., a dual heterodyning circuit. At each respective heterodyning circuit, the output signal from the variable gain amplifier is multiplied by a local oscillator that is internal to each circuit. The dual heterodyning circuit is used to provide an enhanced input transducer signal for spectral analysis. This permits the capture of low level frequency components for extraction during spectral analysis. The dual heterodyning circuit of the present invention to provide the enhanced spectrum to thereby permit an easy determination of whether the resonance is mechanical or electrical becomes clear. In addition, fault frequencies are also more easily discernable. In other words, the enhanced signal output provides a lower signal to noise ratio such that the ease with which frequency components are analyzed is increased.
