Wood burner with improved emissions
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 16, 2004
Grant Date -
Oct 16, 2003
app pub date -
Apr 10, 2002
filing date -
Apr 10, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

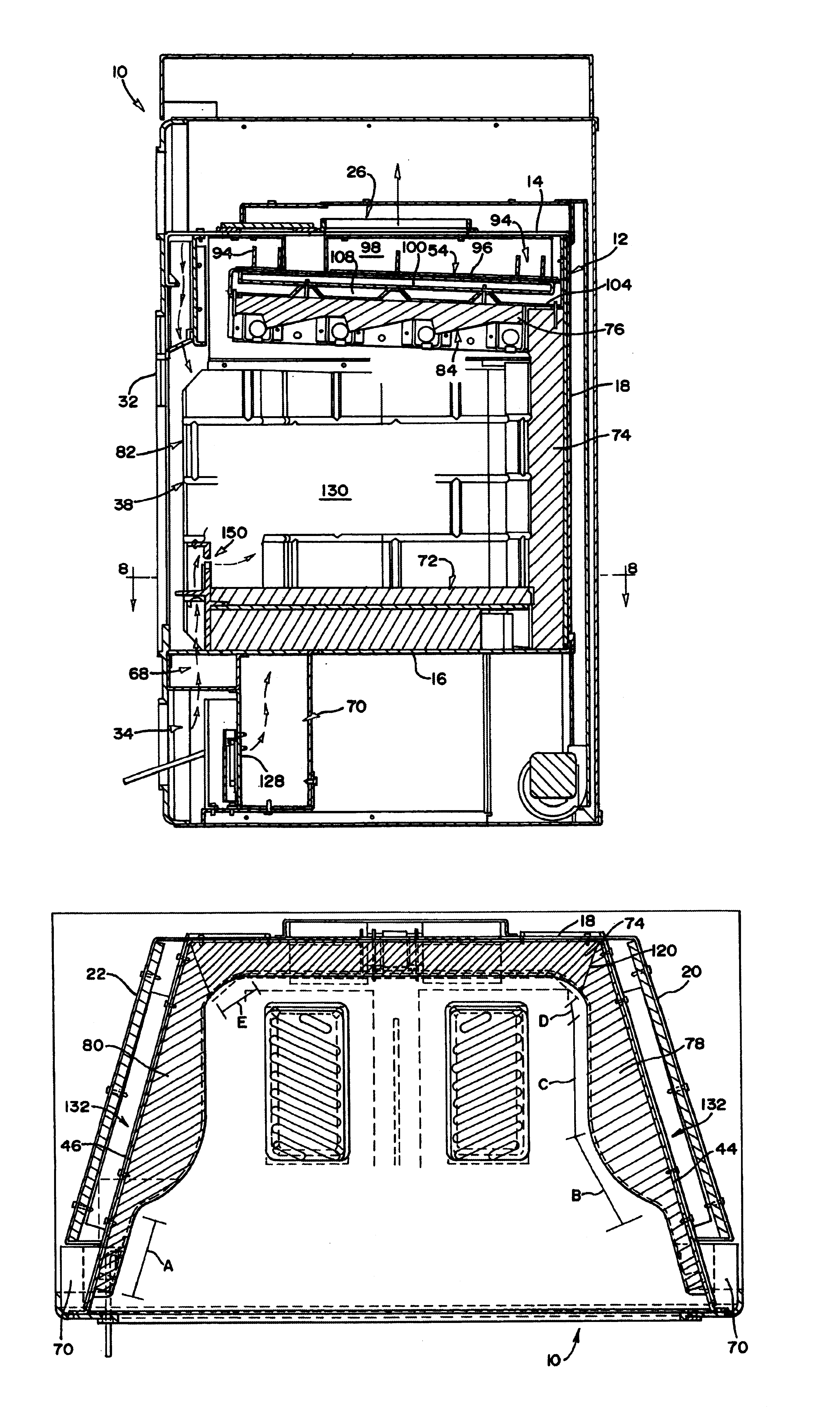

A wood burner includes a wrapper. A firebox is positioned in the wrapper that defines a combustion chamber. An air inlet is placed in communication with an external air supply. The air inlet includes a conduit to conduct the external air to the combustion chamber and a second conduit. A manifold is positioned above the firebox. The manifold is in communication with the second conduit, and includes one or more manifold chambers for permitting the external air received thereby to become heated. A plurality of air tubes connect to the manifold to receive the heated external air from the manifold, each plurality of air tubes including a plurality of apertures to direct the heated external air into the combustion chamber adjacent an upper inner surface of the firebox.
First Claim
Other Claims data not available
