Electric guitar with tremolo unit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 2, 2004
Grant Date -
Apr 10, 2003
app pub date -
Jun 13, 2002
filing date -
Oct 9, 2001
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

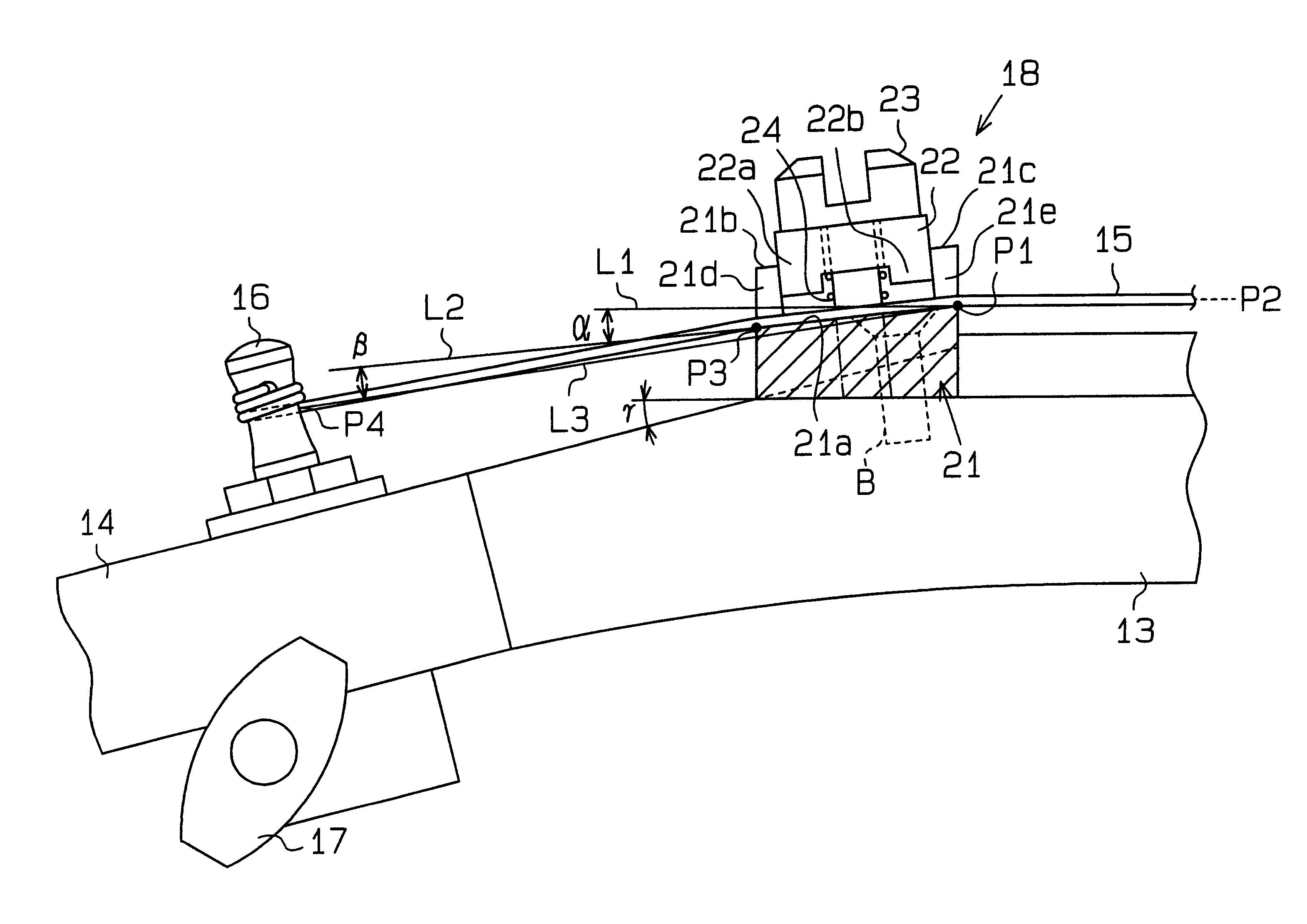

An electric guitar with a tremolo unit that makes it easy to tune strings and install the strings. The electric guitar includes a lock device that prevents the strings from being shifted to offset positions. The lock device has a nut, which has an inclined support surface, and a clamp pad. The clamp pad clamps the strings with respect to the support surface. A front edge of the nut is located upward from a line, which extends along a contact point between pegs and the strings and a rear edge of the nut. Since the strings are bent by the nut at the front and rear edges, the strings are stopped from being separated from the support surface.
First Claim
Other Claims data not available
