Collapsible golf cart
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 2, 2004
Grant Date -
Oct 25, 2001
app pub date -
Feb 1, 2001
filing date -
Feb 4, 2000
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

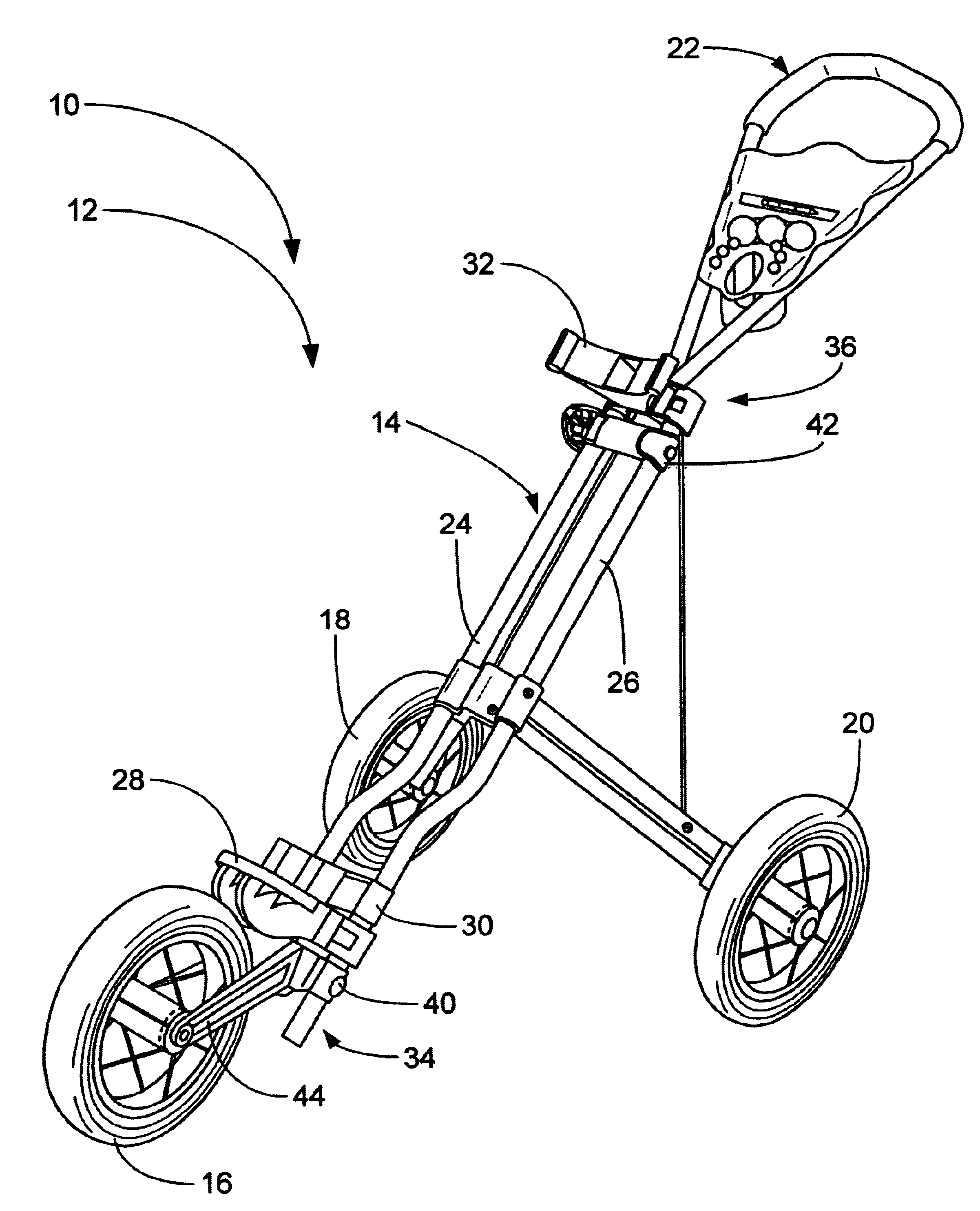

A golf bag cart (10) having a frame (14), a handle (22), first and second rear wheels (18, 20), and first and second wheel struts (52, 54), to which the first and second rear wheels (18, 20) are rotatably mounted, the first and second wheel struts (52, 54) being pivotally mounted to the frame (14) by mid-frame pivots (68). A front wheel (16) and a front wheel mount (44) are included, the front wheel mount (44) being pivotally attached to the frame (14) by a lower frame pivot (40). The golf bag cart (10) is movable from an extended configuration (12) to a collapsed configuration (13), such that the rear wheels (18, 20) pivot about the mid-frame pivots (68) to move towards the front wheel (14). The front wheel (14) and the wheel mount (44) pivot about the lower frame pivot (40) so that the front wheel (16) moves towards the rear wheels (18, 20), as the golf bag cart (10) is being collapsed.
First Claim
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 45 Citation Count
- B62B Class
- 95.42 % this patent is cited more than
- 21 Age
