Selection manifold for beverage dispenser
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 2, 2004
Grant Date -
Jul 4, 2002
app pub date -
Nov 5, 2001
filing date -
Apr 14, 2000
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

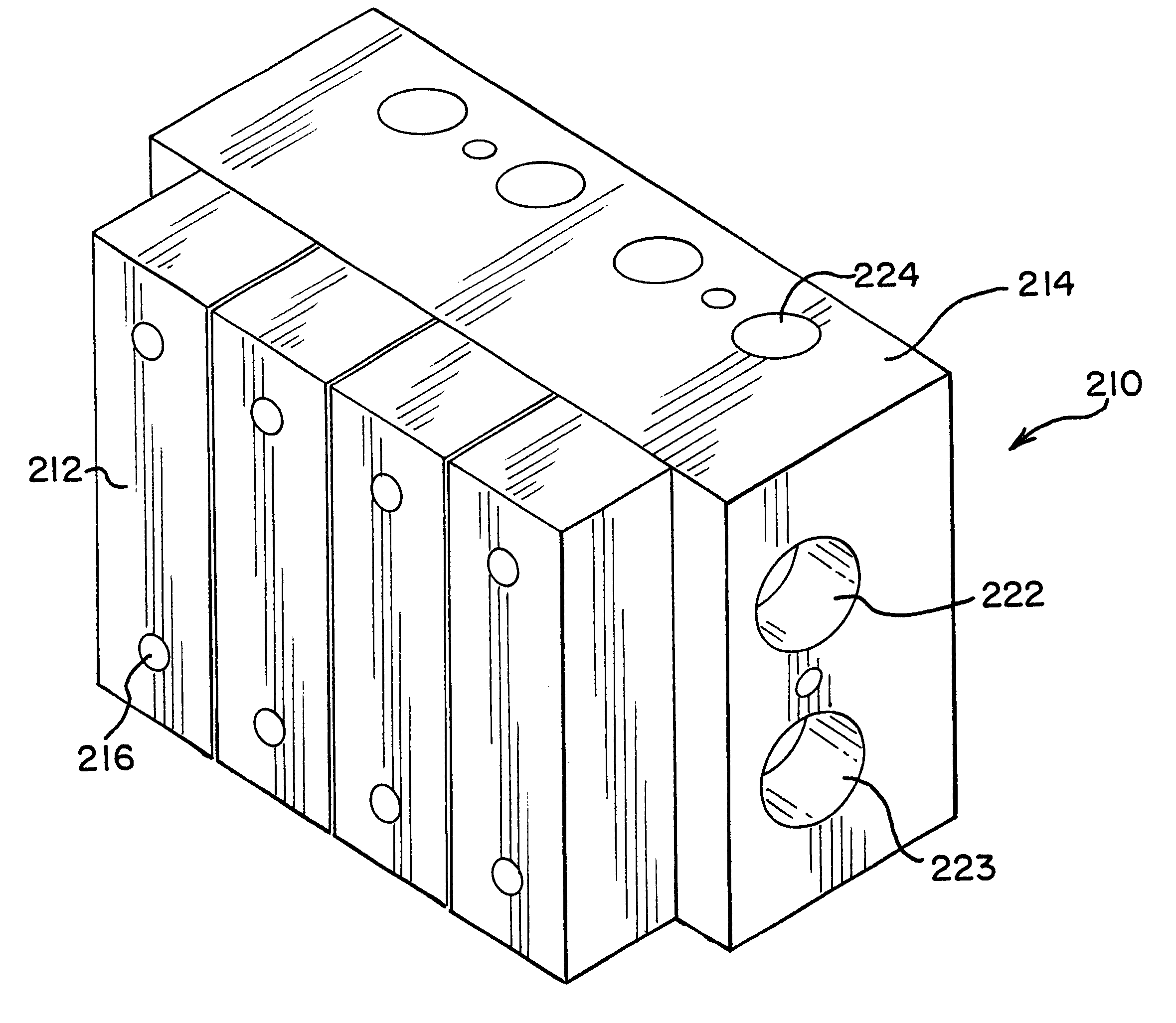

A selection manifold for use for use with a beverage dispenser apparatus for dispensing both carbonated and non-carbonated beverages and including a plurality of dispensing valves with a syrup and a water line feeding each dispensing valve further comprising a selection manifold connected between at least one of the water lines and sources of both carbonated and non-carbonated water, the manifold having a selecting mechanism allowing a user of the apparatus to easily switch between directing carbonated and non-carbonated water through the water line to the dispensing valve. In a preferred embodiment, the selection mechanism includes a portion that enables a viewer to easily determine whether carbonated or non-carbonated water is selected. In another preferred embodiment, the selection mechanism includes a lock to prevent inadvertent switching of the mechanism.
First Claim
Other Claims data not available
