Flush valve mounting assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 2, 2004
Grant Date -
Sep 11, 2003
app pub date -
Mar 7, 2002
filing date -
Mar 7, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

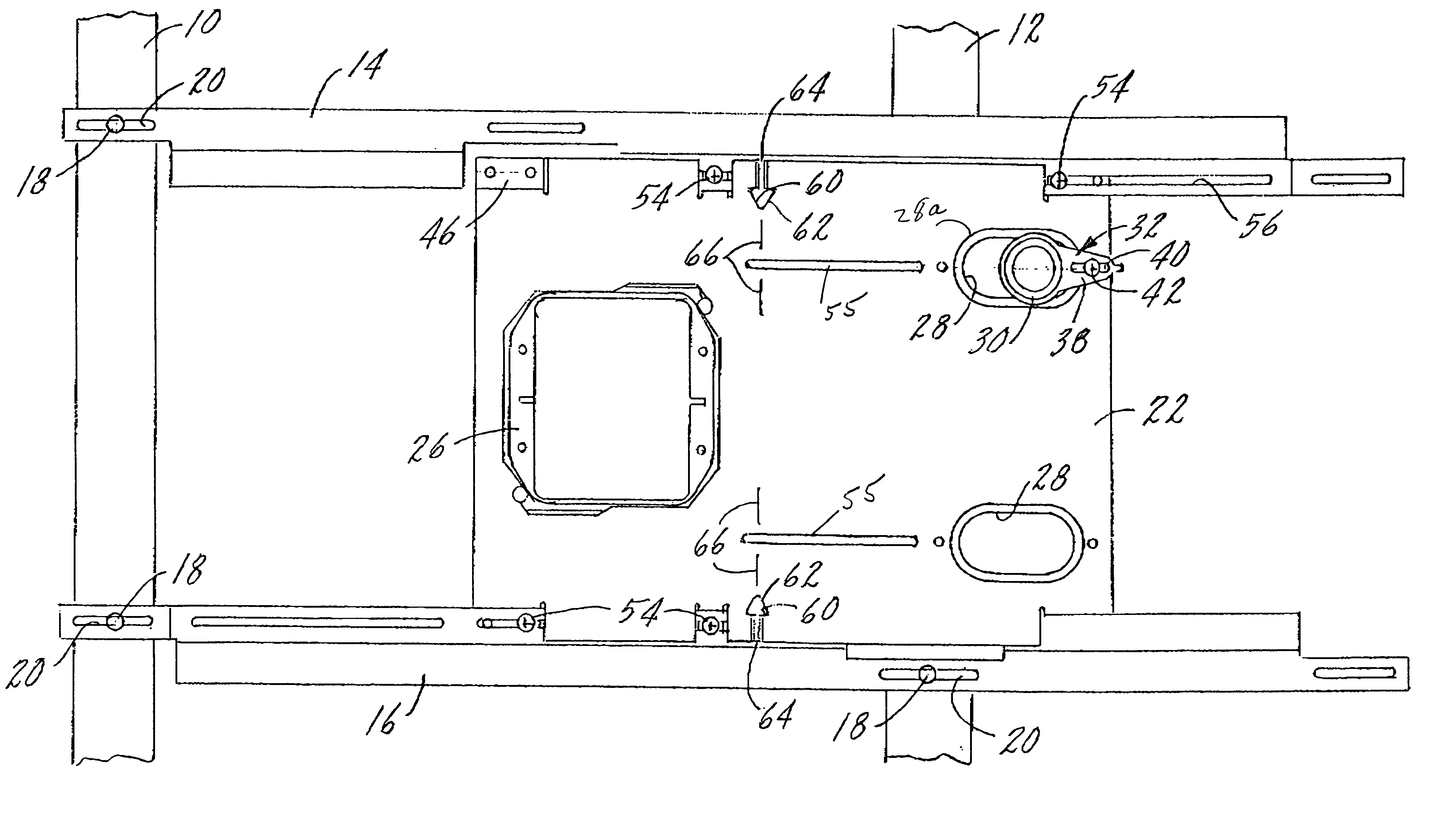

A mounting plate assembly for use in aligning electrical and plumbing components of a toilet flush valve installation includes a pair of rails having openings therein for use in attaching the assembly to wall studs of variant spacing. There is a plate with openings and fasteners on the plate and rails for variable mounting of the plate to the rails. The plate has an opening for installation of an electrical box and at least one opening for a water inlet pipe. A pipe locater is used to properly position a pipe within the plate opening. There are openings at upper and lower portions of the plate to insure its correct vertical alignment with a water drain from a toilet fixture.
First Claim
Other Claims data not available
