Mobile conveyor for paving vehicles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 10, 2004
Grant Date -
Jan 16, 2003
app pub date -
May 14, 2002
filing date -
Apr 30, 2001
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

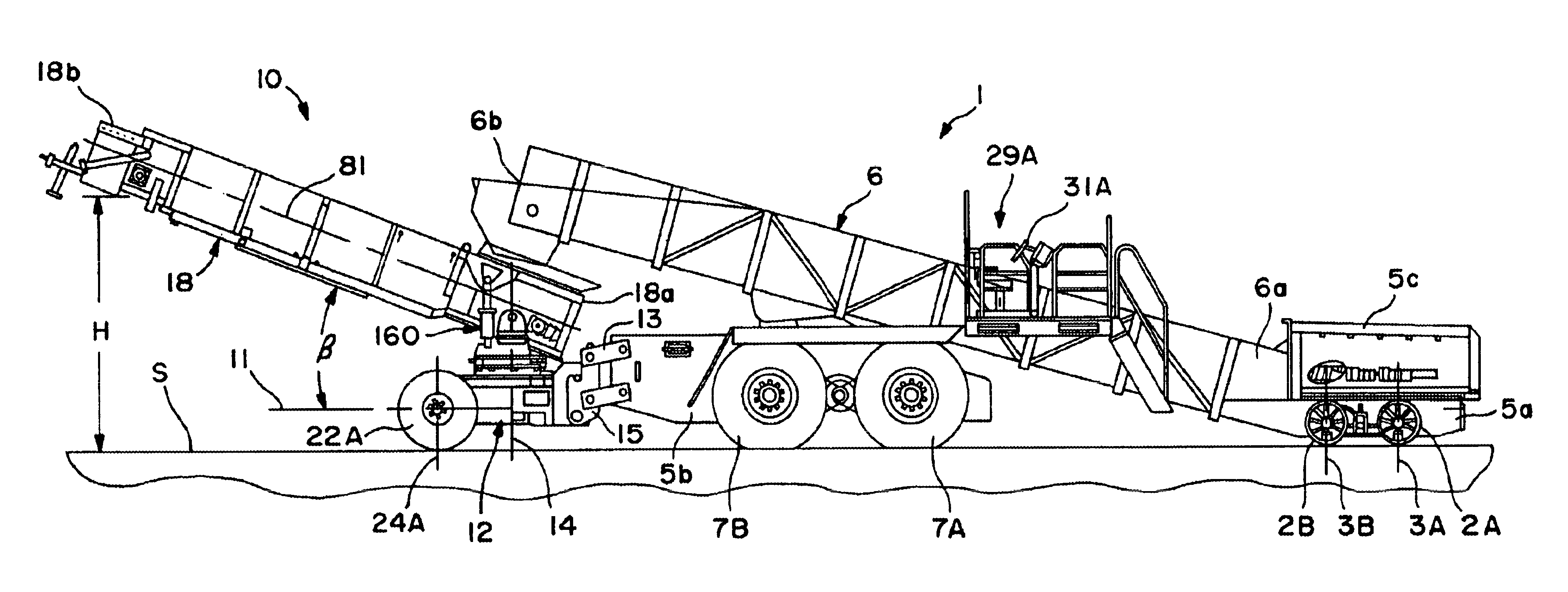

A conveyor assembly is for use with a vehicle having a wheel pivotable about an axis and an actuator configured to pivot the wheel. The conveyor assembly includes a carriage connectable with the vehicle and having a wheel pivotable about an axis, a swing axis and a first bearing surface about the swing axis. A carriage steering actuator pivots the carriage wheel about its axis in one direction when the vehicle actuator pivots the vehicle wheel about its axis in an opposing direction. A conveyor connected with the carriage has a second bearing surface engaged about the first bearing surface. Further, a swing actuator rotates the conveyor about the swing axis such that the second bearing surface linearly displaces along a first arcuate path as an actuator end displaces along a second arcuate path, configured such that the bearing surface displacement is greater than the actuator end displacement.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 23 Citation Count
- B65G Class
- 90 % this patent is cited more than
- 21 Age
