Ultrasonic diagnostic apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 6, 2004
Grant Date -
Aug 23, 2001
app pub date -
Feb 9, 2001
filing date -
Feb 10, 2000
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

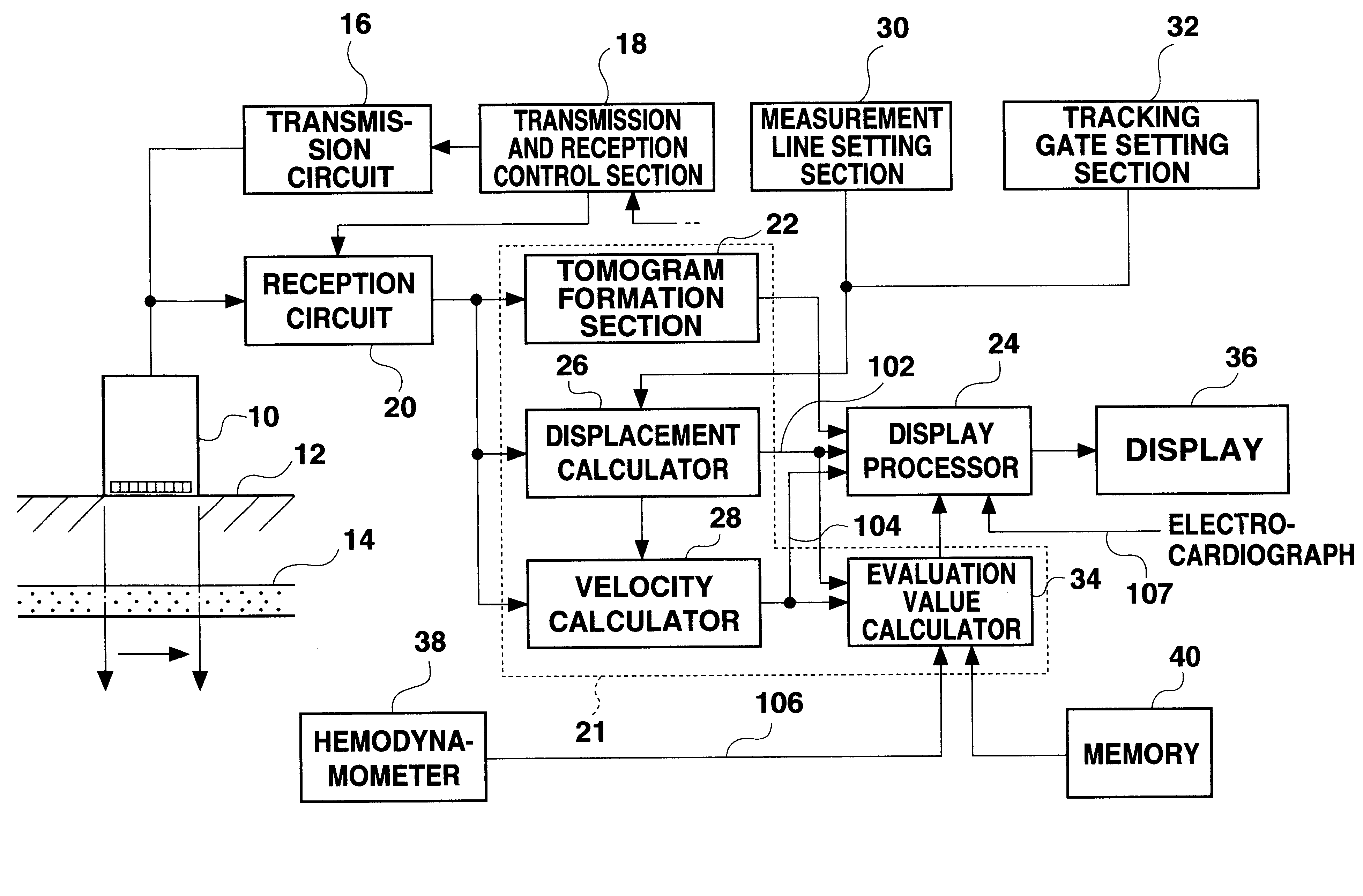

To accurately measure wave intensity as an evaluation value using an ultrasonic diagnostic apparatus, a measurement line is set in a tomogram and anterior and posterior walls of a blood vessel are tracked on the measurement line, so that a change waveform concerning a blood vessel diameter is prepared. A tracking gate S is set on the measurement line, so that a blood velocity change waveform is prepared based on echo data concerning a part within the tracking gate S, the change waveform indicating averaged blood velocity. Wave intensity is calculated based on the blood vessel diameter change waveform and the blood velocity change waveform. Prior to the calculation of wave intensity, the blood vessel diameter change waveform is calibrated based on the maximum and minimum blood pressure values into a blood pressure waveform. A beam for Doppler measurement may be set intersecting with the displacement measurement beam.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 20 Citation Count
- A61B Class
- 23.55 % this patent is cited more than
- 21 Age
