Oxygen-fuel burner with adjustable flame characteristics
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 9, 2003
Grant Date -
Mar 20, 2003
app pub date -
Sep 17, 2001
filing date -
Sep 17, 2001
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

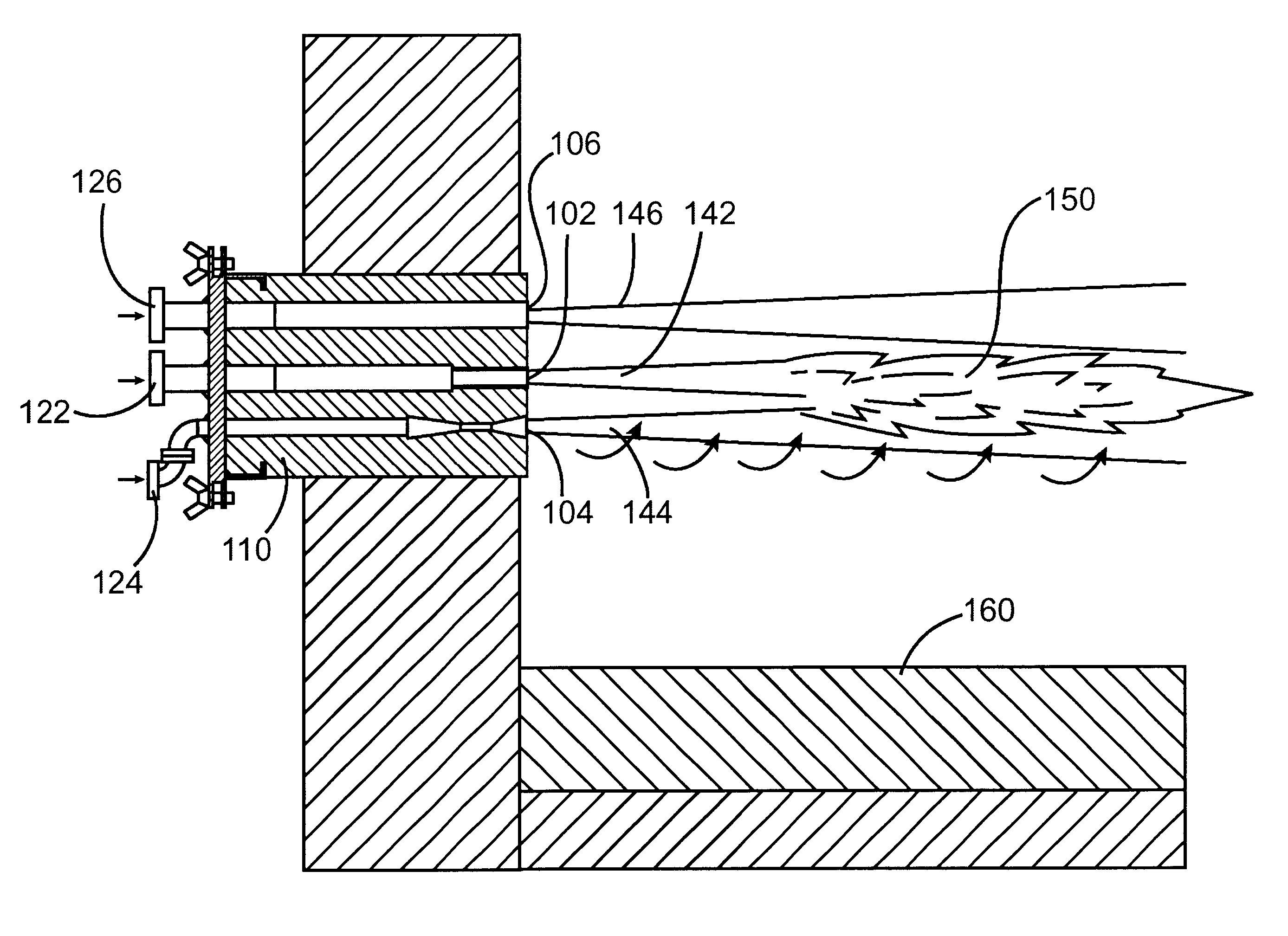

An oxy-fuel burner generates a long, luminous, stable and adjustable flame temperature profile flame by incorporating separate, fuel and oxygen jets oriented in a unique geometry. In one preferred embodiment, the fuel is injected horizontally at medium injection velocity (50-200 m/s) while primary oxygen is injected underneath the fuel jet at supersonic velocity (300-500 m/s). The supersonic velocity oxygen jet (20 to 50% required for stoichiometric combustion) entrains fuel and furnaces gases in it's core for the primary flame development over the furnace load. The subsequent mixing of the fuel, primary oxygen and entrained furnace gases establish a low NOx, stable, long and luminous primary flame. The secondary oxidant, preferably air or low purity oxygen (50 to 80% of stoichiometric needs), is injected above the flame using one or more oxygen jets to create an oxy-fuel flame with adjustable flame characteristics. The secondary oxidant completes unfinished combustion of flame gases containing CO, H.sub.2, CH.sub.4, soot and HC. The horizontal injection angle for all jets allow delayed mixing and a much longer flame. Due to the massive furnace gas entrainment process, the resulting flame provides adjustability in flame temperature profile as well as lower NOx formation. By changing the fuel, primary oxygen, and secondary oxidant injection velocities, the relative proportion of primary and secondary oxidants, and the relative positions of injectors, a fully adjustable flame is developed.
First Claim
all claims..Other Claims data not available
