Quick change blow mold shell assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 18, 2003
Grant Date -
Jul 3, 2003
app pub date -
Feb 5, 1999
filing date -
Feb 5, 1999
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

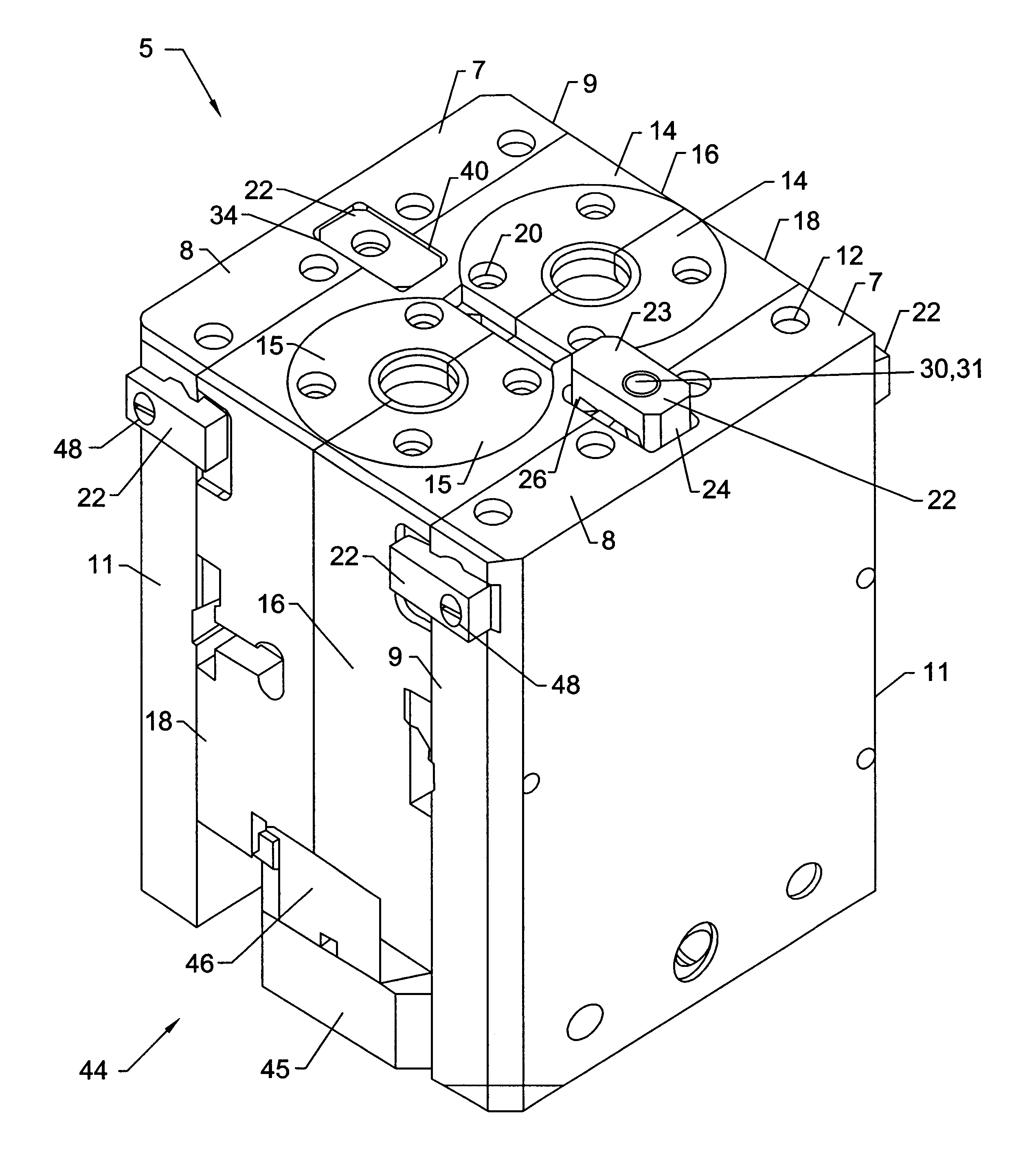

A quick change blow mold shell assembly is disclosed. The blow mold shell assembly includes a carrier plate and a blow mold half shell for being fastened to the carrier plate. A first slotted opening is defined in an edge of the carrier plate, and a corresponding second slotted opening is defined in an edge of the blow mold half shell. The first and second openings are placed in registry with one another as the shell is positioned on its carrier plate. A fastener clip is also provided, the clip being sized and shaped to be received in each one of the respective openings, and being constructed and arranged to align the first and second openings with respect to one another, to draw the shell snugly against the carrier plate, and to fasten the shell to its carrier plate as a fastener is passed through the clip and into the carrier plate.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 9 Citation Count
- B29C Class
- 2.93 % this patent is cited more than
- 22 Age
