Linear ignition fuze with shaped sheath
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 18, 2003
Grant Date -
Dec 19, 2002
app pub date -
May 29, 2002
filing date -
May 31, 2001
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

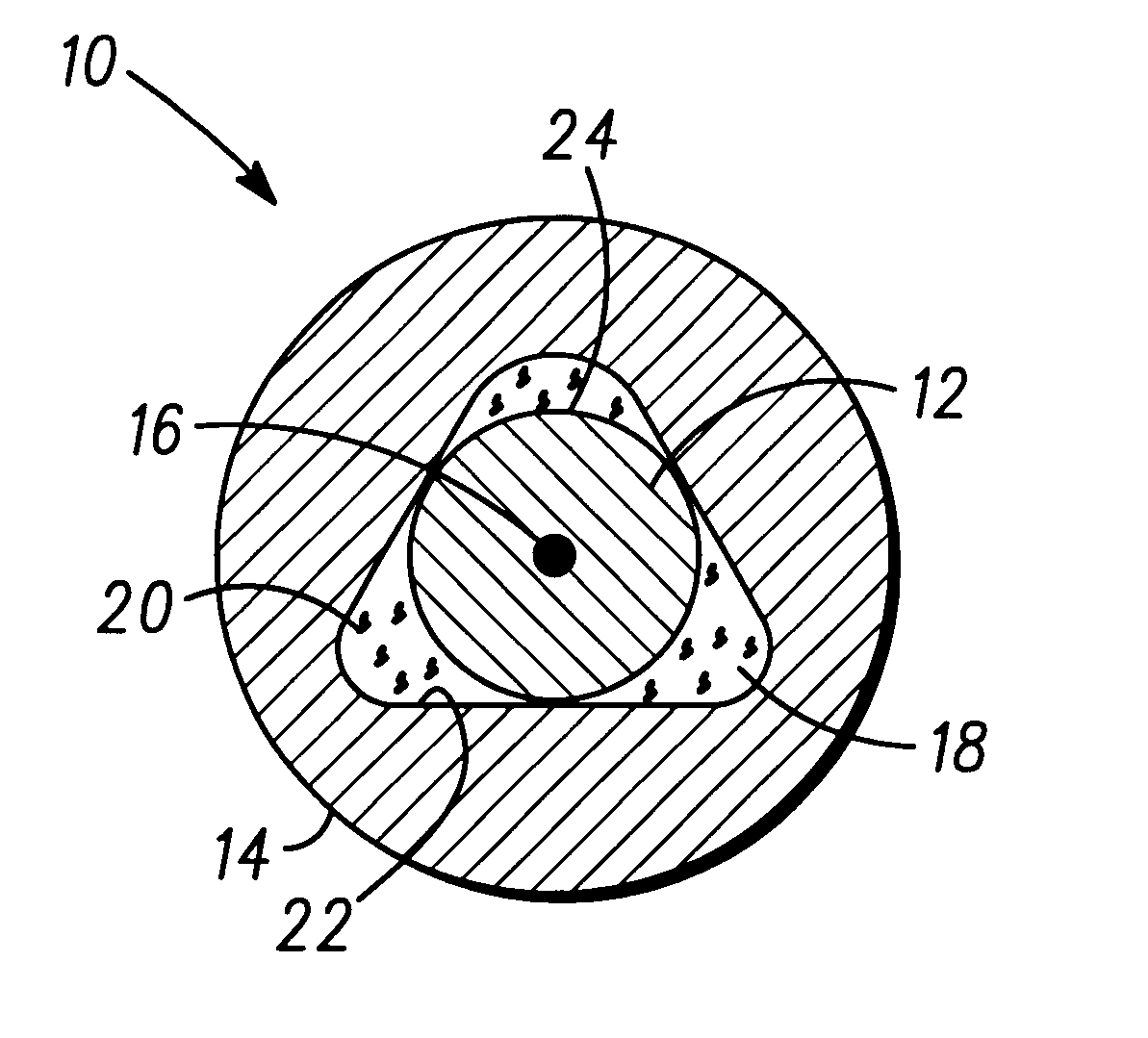

A linear ignition fuze has a sheath, the inner surface of which has an irregular cross section such that the sheath is capable of forming a gas channel against a single strand core having a substantially circular (e.g. circular or elliptical) cross section. According to one embodiment of the invention, the sheath wall is of a non-uniform thickness having a cylindrical outer surface and a polygonal inner surface. The gap formed between the apexes of the polygonal inner surface and the substantially cylindrical core form the gas channels, while the contact between the side walls of the polygonal inner surface and the cylindrical core confine the core within the sheath.
First Claim
Other Claims data not available
