Five coin bank
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 28, 2003
Grant Date -
Dec 12, 2002
app pub date -
Jun 12, 2001
filing date -
Jun 12, 2001
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

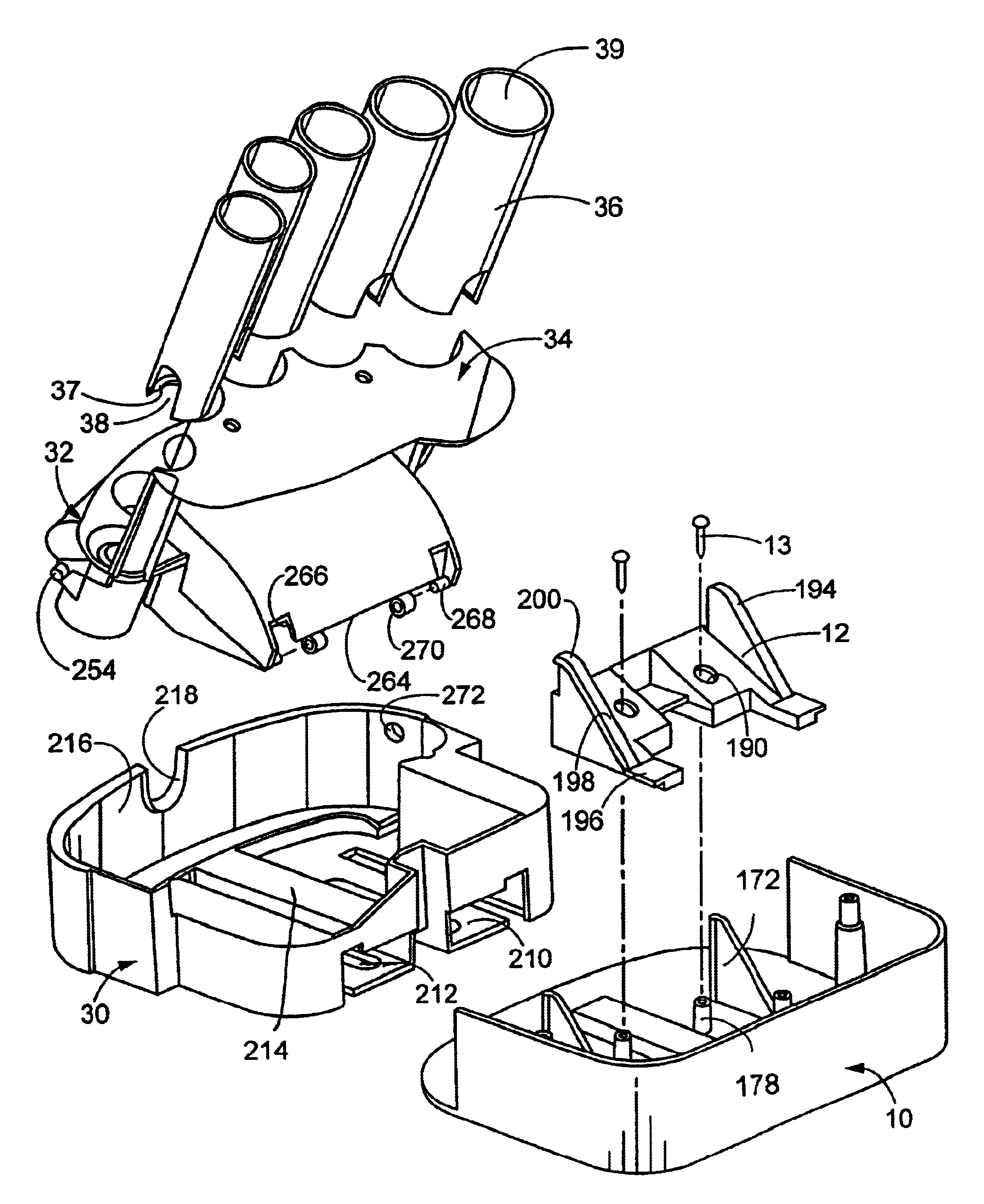

A coin bank includes a housing having a coin receiving area for receiving unsorted coins, a coin sorting area for sorting the unsorted coins and a coin storage area for storing sorted coins. The coin storage area includes a drawer slidably mounted in the housing and a coin tube support movably mounted in the drawer between a first position, when the drawer is fully retracted into the housing and a second position, when the drawer is fully extended from the housing. A plurality of coin tubes is mounted in the coin tube support for holding sorted coins. The plurality of coin tubes is inclined in relation to a vertical axis for receiving sorted coins when the drawer is in a retracted position. A reservoir is located directly above each of the coin tubes for holding at least one additional coin above a stack of coins completely filling the coin tube.
First Claim
Other Claims data not available
