Lubrication system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 14, 2003
Grant Date -
Oct 18, 2001
app pub date -
Dec 5, 2000
filing date -
Dec 27, 1999
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

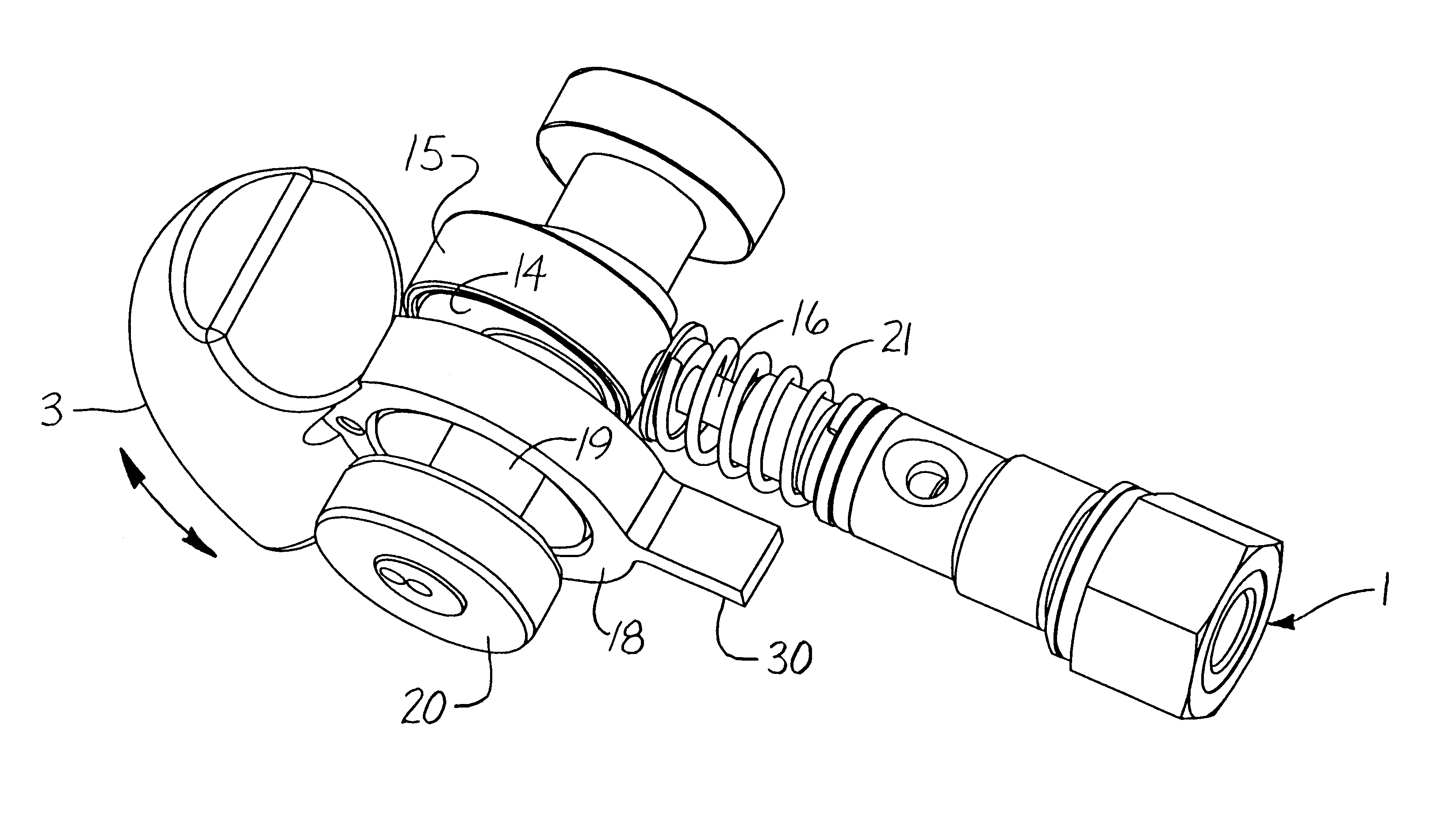

A lubrication system for a vibratory apparatus such as a hydraulic striking device. The system includes a lubricant pump for pumping lubricant to one or more points of lubrication on the device and a drive for the pump powered in response to vibration of the device. The system includes a base for attachment to the device for vibration therewith, and a lubricant pump for pumping lubricant from a supply. The pump includes a cylinder and a plunger reciprocable in the cylinder through a stroke between a retracted position for intake of lubricant into the cylinder and a forward position for delivery of the intake from the cylinder. A weight is mounted on the base for oscillation in response to the vibration of the device, oscillation of the weight effecting reciprocation of the plunger through a stroke.
First Claim
Other Claims data not available
