Drum washing machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 2, 2003
Grant Date -
Jul 3, 2003
app pub date -
May 31, 2002
filing date -
Dec 28, 2001
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

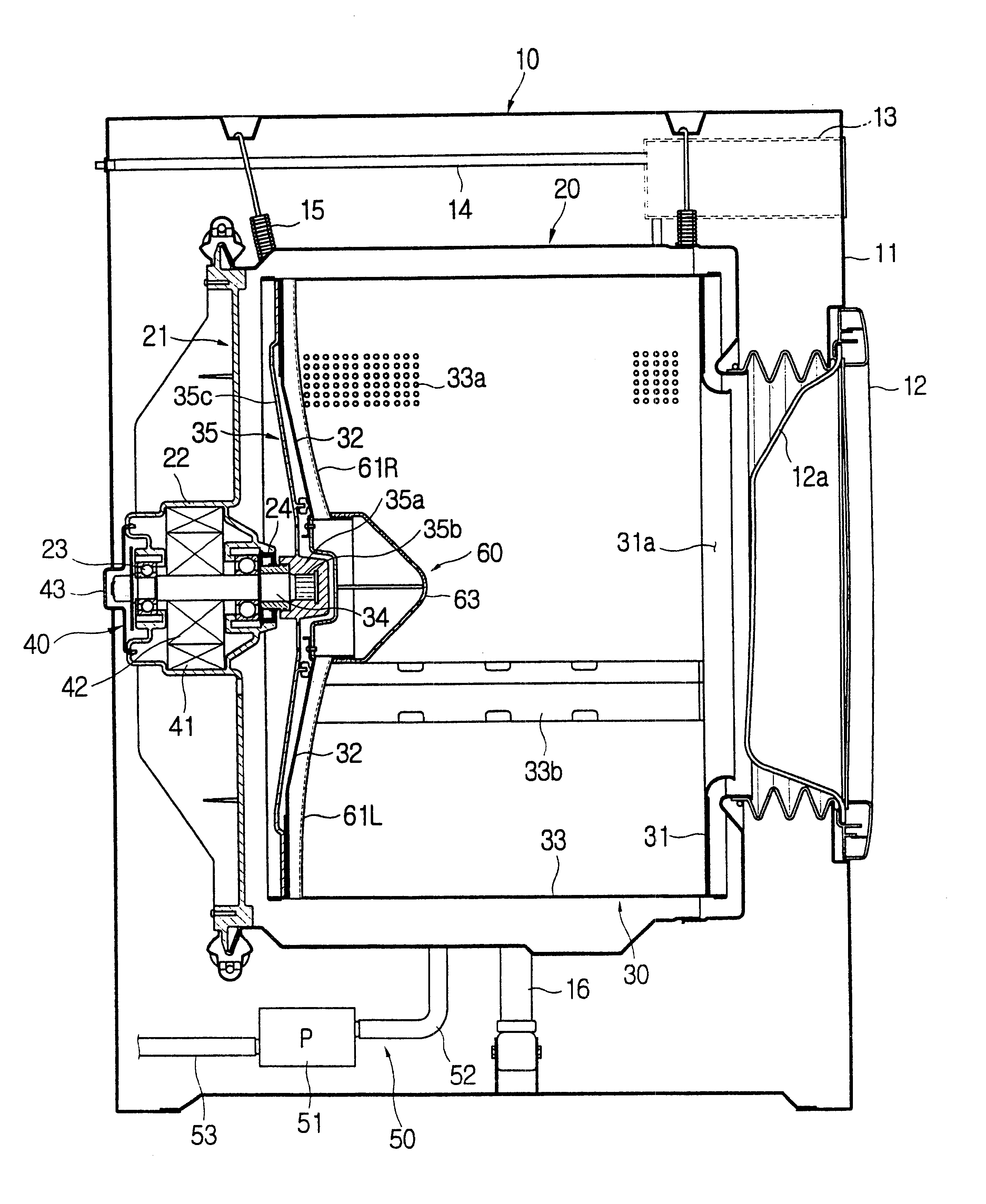

A drum washing machine with a washing water circulation unit adapted to completely dissolve detergent supplied together with washing water and to enhance washing efficiency. During a washing operation, the washing water contained in a fixed drum is raised or drawn to a center portion of a rear panel of a rotatable drum by turning force of the rotatable drum and then sprayed into the rotatable drum through a nozzle. The circulated washing water accelerates the dissolution of the detergent, and the sprayed washing water directly impinges on laundry, thereby shortening the amount of time required to wet the laundry with the washing water. Therefore, the washing efficiency of the drum washing machine can be remarkably enhanced using only a small quantity of the washing water.
First Claim
Other Claims data not available
