Needle for knitting, warp knitting or hosiery machines and a knitting machine equipped therewith
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 26, 2003
Grant Date -
Jul 3, 2003
app pub date -
Dec 18, 2002
filing date -
Dec 18, 2001
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

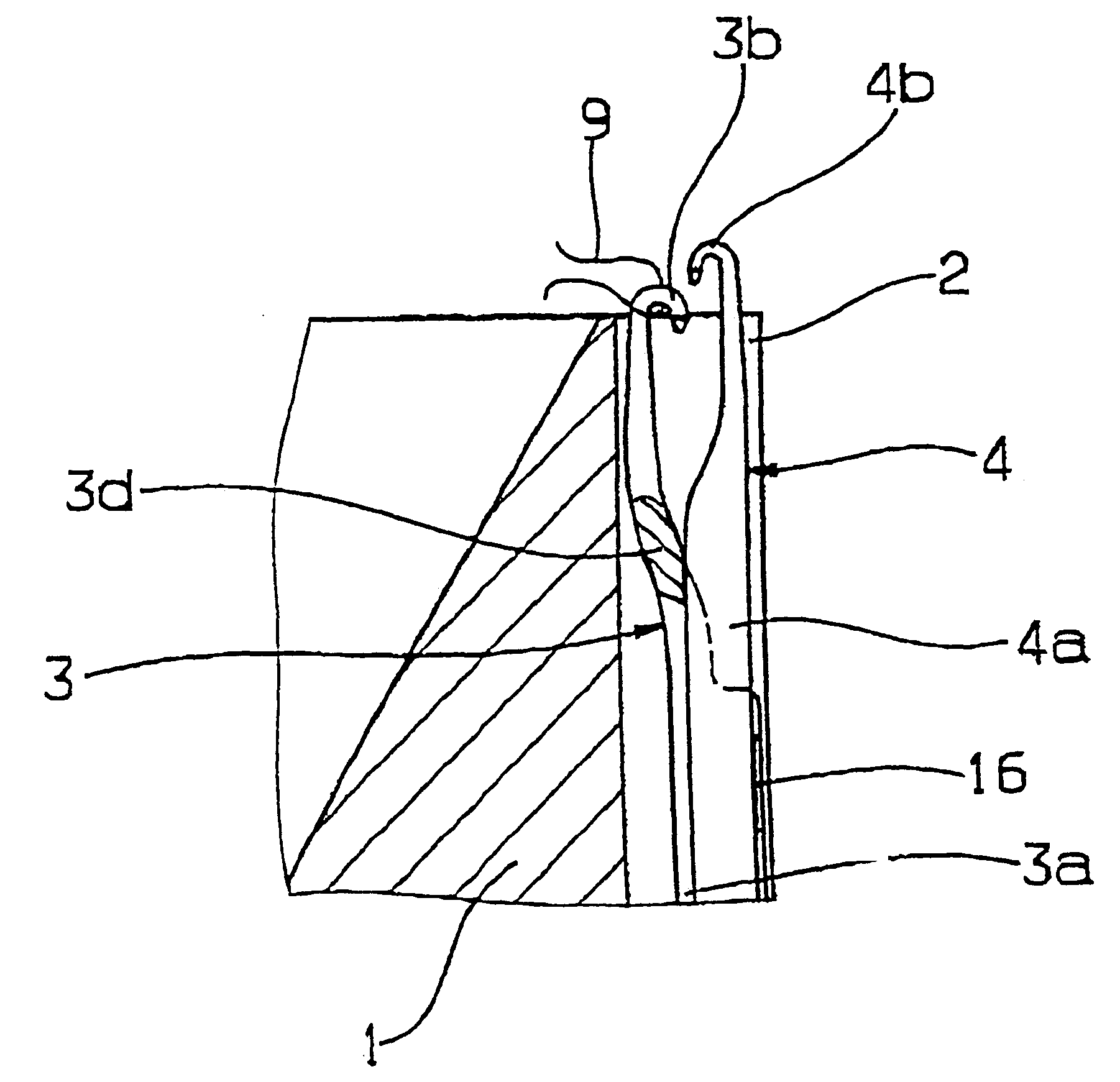

The invention describes a compound needle having a needle part (3) and a slide part (4) for knitting, warp knitting or hosiery machines. The needle part (3) has a needle shaft (3a) and a needle hook (3b), the needle shaft (3a) being provided with a slot-shaped recess (3f) and a guide channel. The slide part has a slide shaft (4a), which is insertable into the guide channel and is movable to and fro in the latter, and a slide hook (4b) which is open in the opposite direction to the needle hook (3b), said slide hook being insertable into the recess (3f) in order to take over a stitch (9) located on the needle shaft (3a). According to the invention, the guide channel is provided with a cover (16) bridging the slide shaft (4a) at least on a part of its length, and the thickness of the slide hook (4b) is greater at least in a spread portion taking over the stitch (9) and keeping it wide than the width of the guide channel, and/or the thickness of the needle hook (3b) is smaller than the thickness of the needle shaft (3a). In addition, a knitting machine equipped with compound needles of this type is described (FIG. 7).
