Reversible shank for hitch mounted accessory carriers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 12, 2003
Grant Date -
N/A
app pub date -
Sep 22, 2000
filing date -
Sep 22, 2000
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

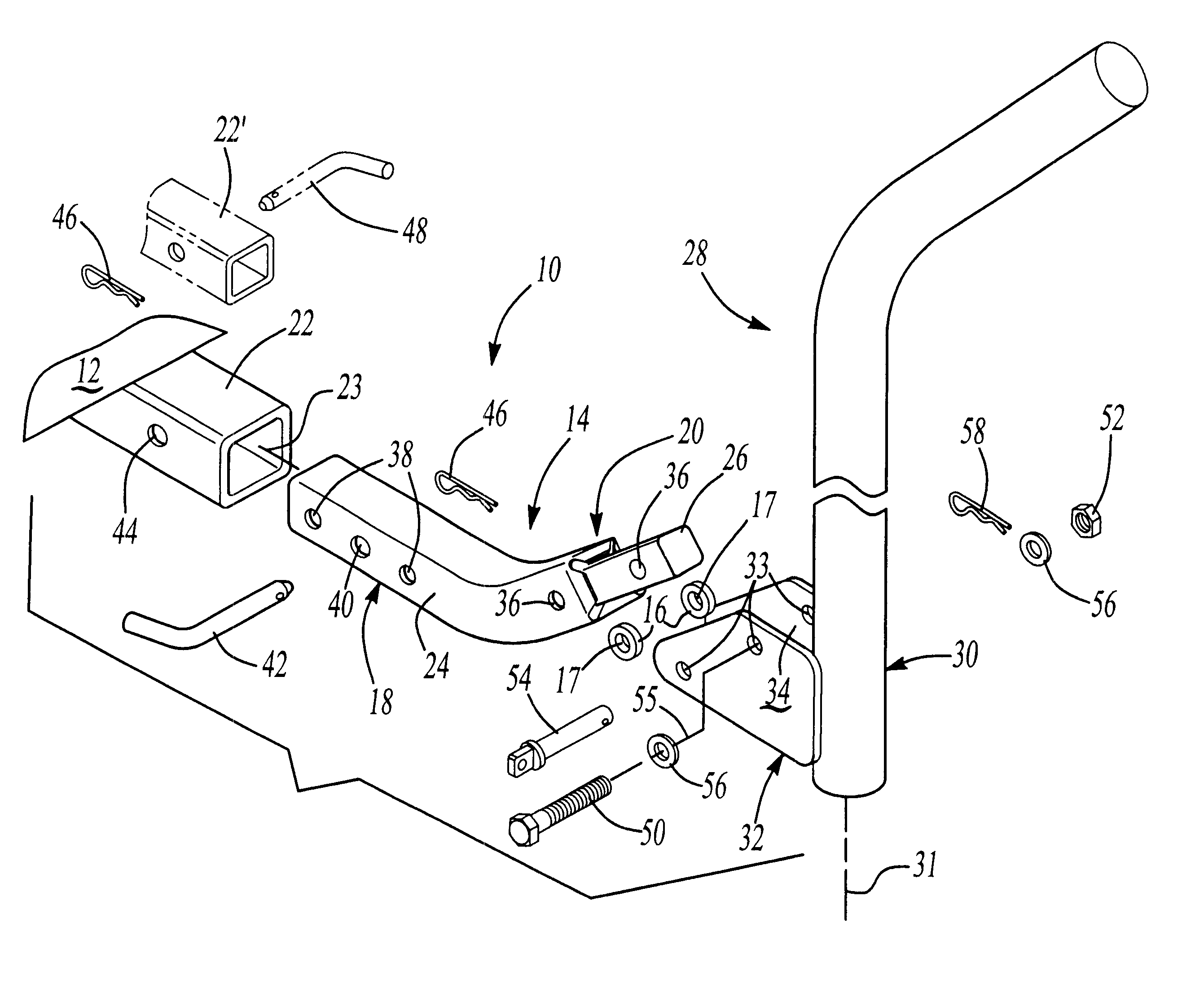

An accessory carrier assembly includes a reversible shank manufactured of a substantially square first portion and a substantially square second portion such that the first segment is preferably angled relative to the second segment. The first portion is sized to engage a first hitch receiver and the second portion is sized to engage a second hitch receiver. To attach the accessory carrier to the reversible shank, the first segment is located in amounting assembly either with or without the bushings depending on which type of hitch receiver is available. The accessory carrier can also be pivoted by removal of a single pin. The angle of the reversible shank forms a stop that contacts the accessory carrier to prevent over rotation of the accessory carrier and possible contact with the ground.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 20 Citation Count
- B60R Class
- 45.80 % this patent is cited more than
- 22 Age
