Lid applicator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 29, 2003
Grant Date -
Jan 2, 2003
app pub date -
Jun 29, 2001
filing date -
Jun 29, 2001
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

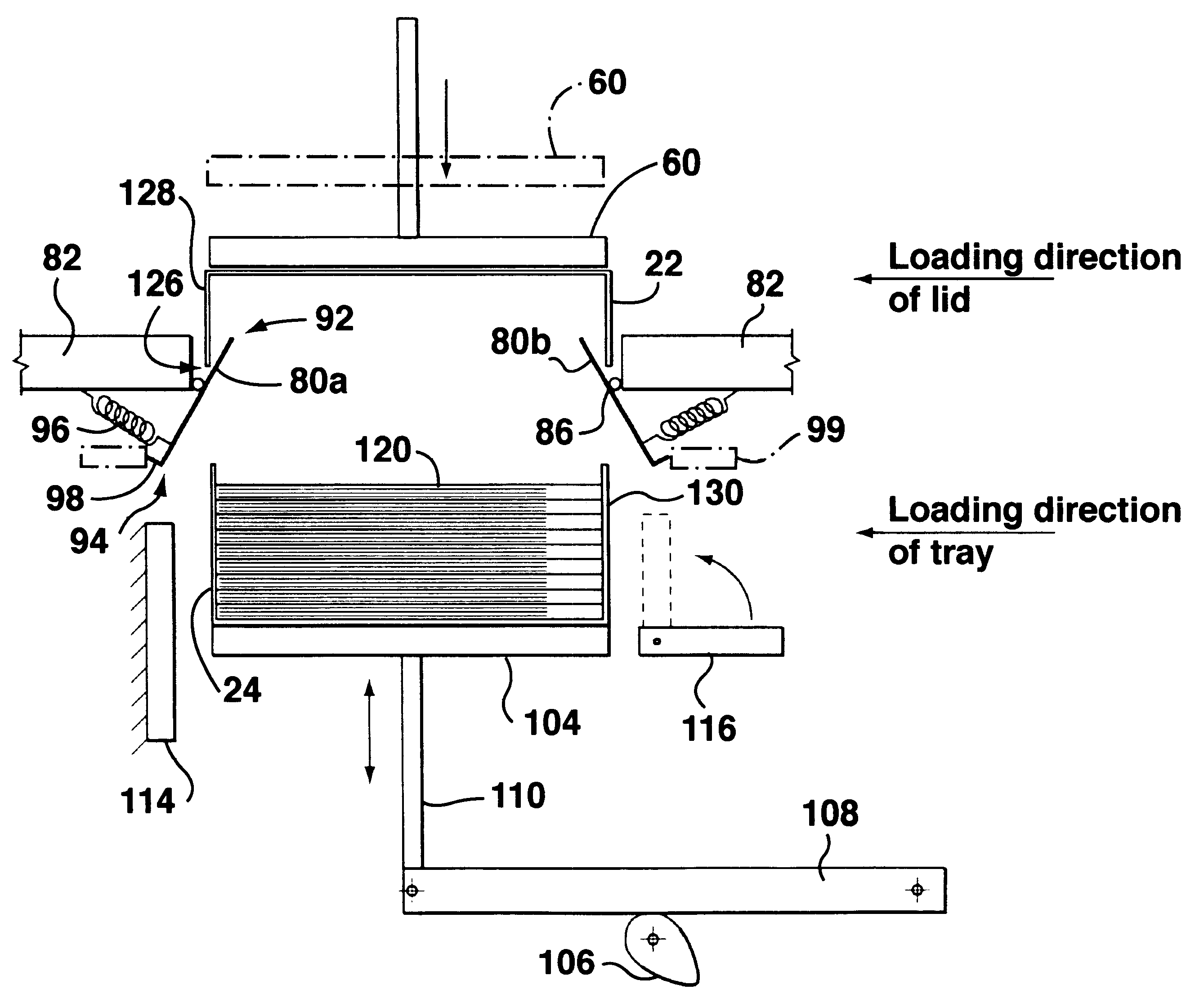

In order to fit a box lid to a box tray a pair of opposed plates are used. Each plate is pivotably mounted intermediately of its upper and lower edges such that upper edges of the opposed plates may pivot toward and away from each other. Each plate is biased to an inclined position whereat the upper edges of the opposed plates are more proximate than the lower edges of the plates. With this arrangement, a lid may be placed with respect to the pair of opposed plates such that opposed lower edges of the lid are positioned below the upper edges of said plates and at an outward side of said plates. A box tray may then be raised between the plates such that the box tray urges each of the plates away from its inclined position.
First Claim
Other Claims data not available
