Graphical user interface system for a thermal comfort controller
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 22, 2003
Grant Date -
N/A
app pub date -
Oct 26, 2000
filing date -
Oct 26, 2000
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

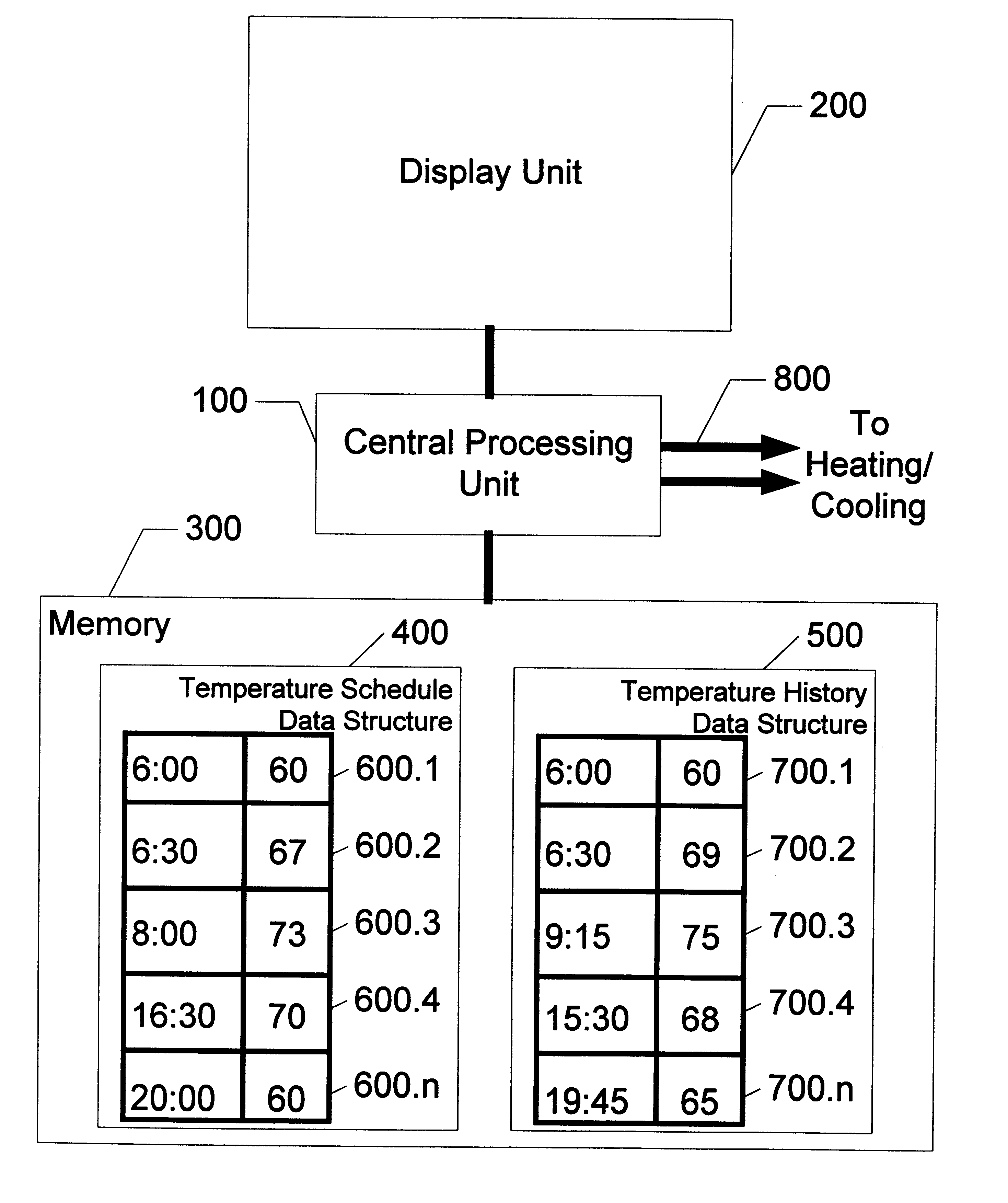

A graphical user interface system for a thermal comfort controller. The user interface system has a central processing unit coupled to a memory and a touch sensitive display unit. The memory stores a temperature schedule data structure and perhaps a temperature history data structure. The temperature schedule data structure is made up of at least one set-point. The temperature history data structure is made up of at least one Actual-Temperature-Point. The display presents the set-points and/or the Actual-Temperature-Points. One representation of the display is a graphical step-function. The user uses a finger or stylus to program the set-points by pointing and dragging a portion of the step-function.
First Claim
Other Claims data not available
