Optical fiber interface for integrated circuit test system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 15, 2003
Issued Date -
N/A
app pub date -
Oct 11, 2001
filing date -
Apr 23, 2001
priority date (Note) -
Expired
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

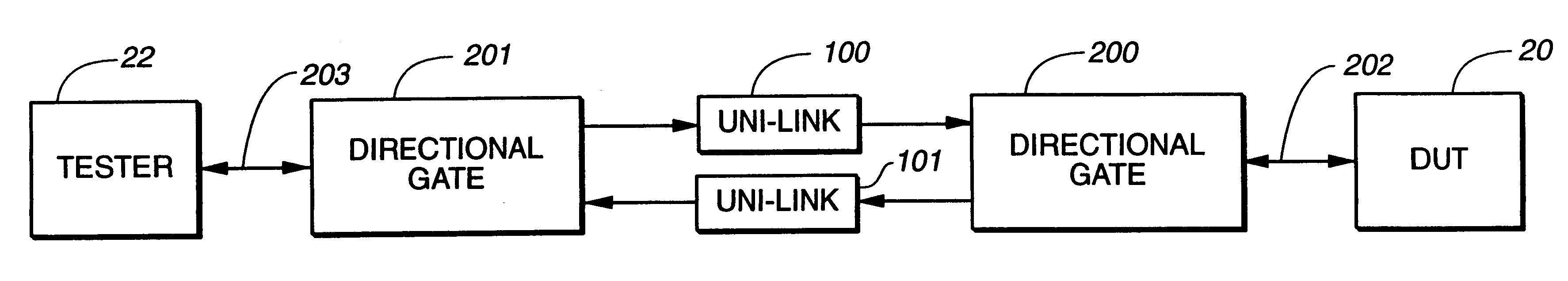

A bi-directional interface for transmitting signals between a circuit tester and a connection point proximate to a circuit to be tested includes a first and a second optical fiber link, a first directional gate for coupling both the input end of the first link and the output end of the second link to one endpoint of the interface and a second directional gate for coupling both the input end of the second link and the output end of the first link to the other endpoint of the interface. An optical fiber link includes an optical fiber, a light source, and a photodetector.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- H04B Class
- 0.69 % this patent is cited more than
- 22 Age
