Multi-directional spray nozzle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 15, 2003
Grant Date -
N/A
app pub date -
May 24, 2002
filing date -
May 25, 2001
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

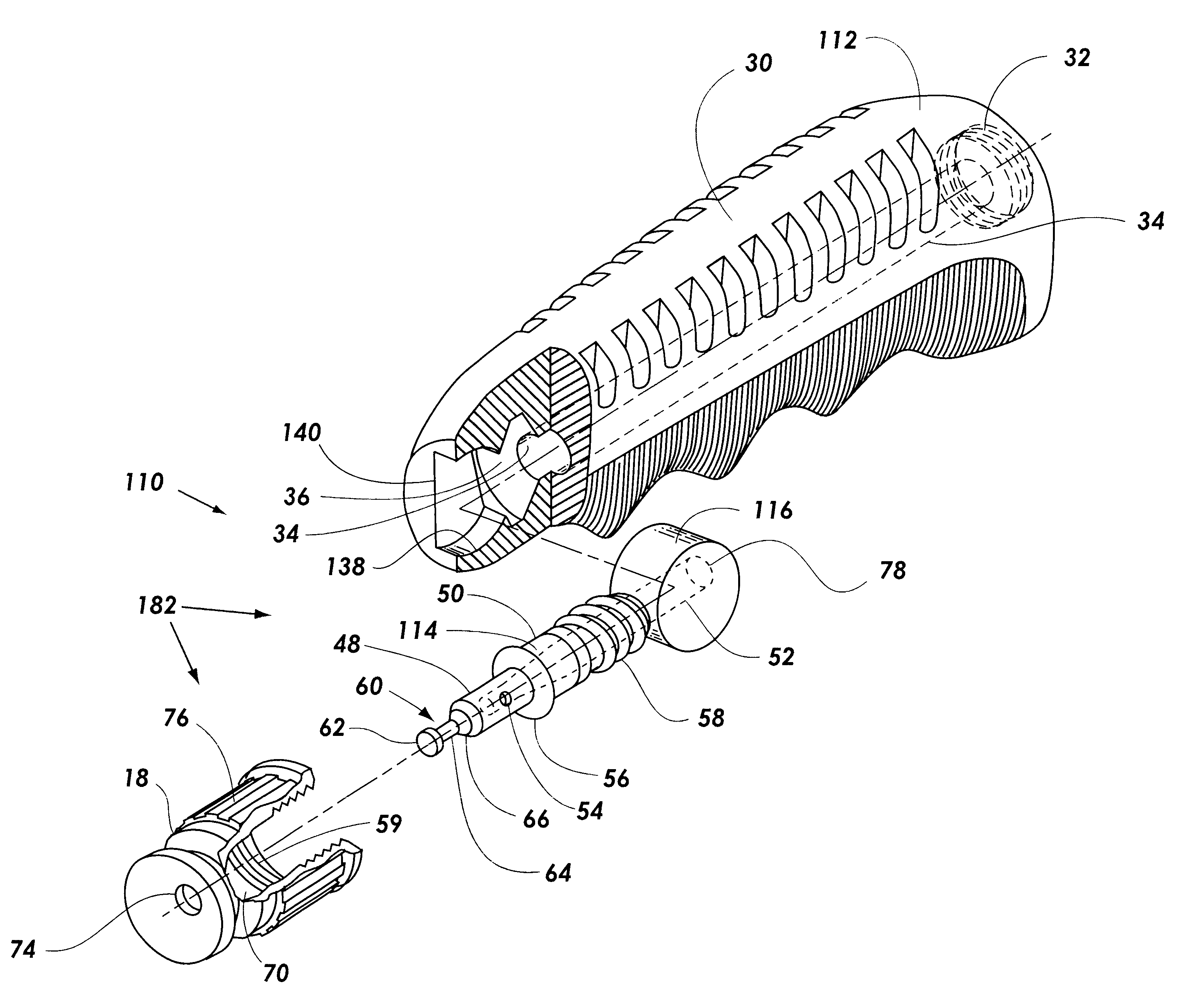

A multi-directional spray nozzle is disclosed. The multi-directional spray nozzle may include a grip member and a pivotal member. A rounded end of the pivotal member pivotally engages a socket of the grip member in either a ball-and-socket configuration or a hinged joint configuration. An internal passage of the grip member is in fluid communication with a pivotal passage situated within the rounded end of the pivotal member. The pivotal passage is in fluid communication with an exit port on the pivotal member. A pressurized fluid may be emitted from an exit port on the pivotal member. The pivotal member may be positioned at various angles with respect to the grip member to direct the emitted fluid to a desired location.
First Claim
Other Claims data not available
