Abstract

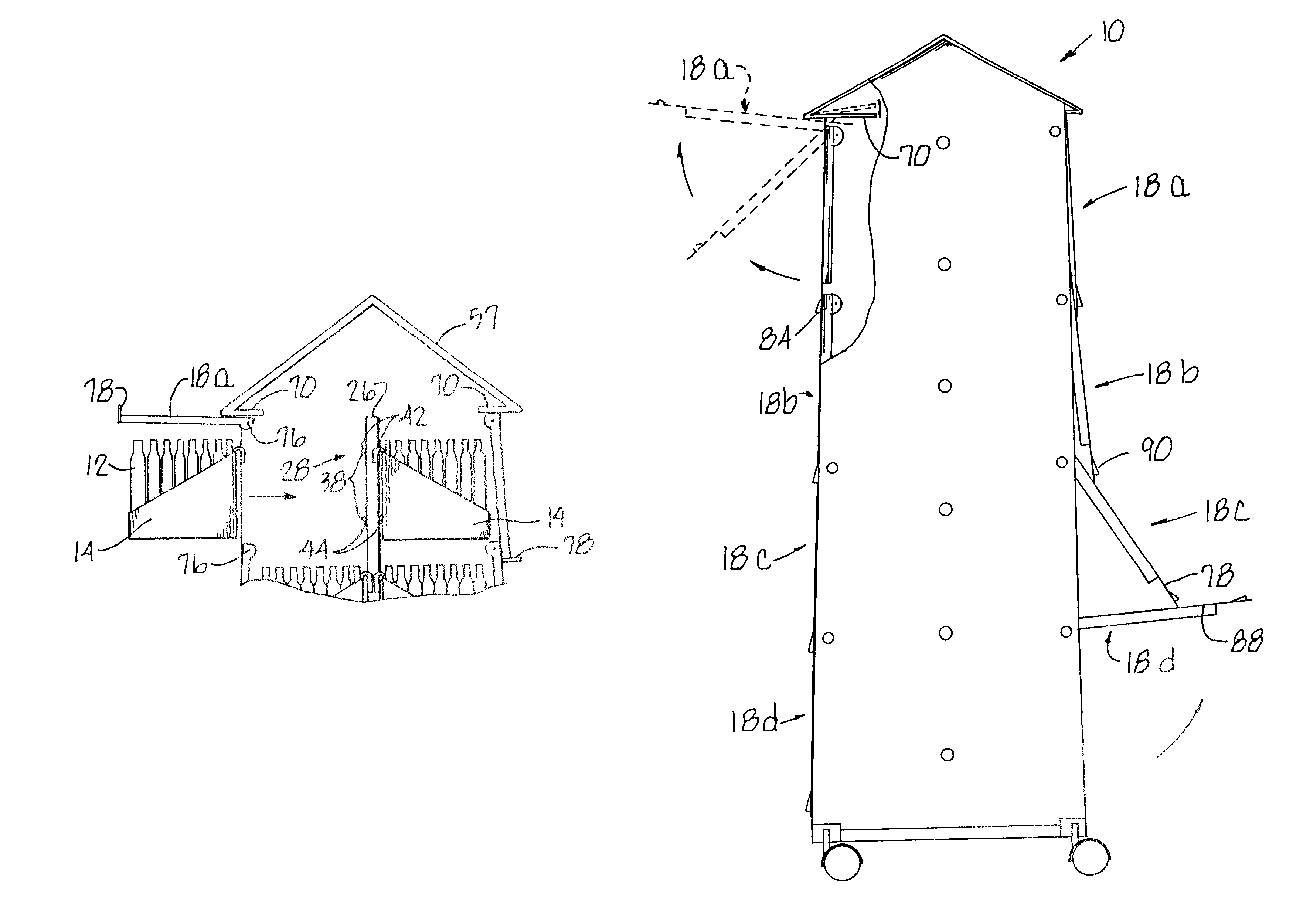

A product display includes a housing for sheltering and protecting a displayed product whether indoors or outdoors, a support frame mounted within the housing and adapted for displaying the product within the display and venting members for allowing air circulation. The housing has a front and rear wall each formed by a series of vertically extending, transparent doors, a roof, a floor and side walls. Each door selectively pivots between an open position and a closed position and has side lips that engage and extend over a side edge of the housing when in the closed position. At least some of the doors have a bottom lip that engages and extends over an adjacent door's front surface, and at least one of the doors engages a pivotable roof flap when in the open and closed positions, to continuously shelter the displayed products whether the doors are in an open or closed position. The support frame includes sets of cross-bars, each set having a top bar spaced apart from a bottom bar. The top bars are adapted for mounting a clip-on tray thereto and the bottom bars are for supporting the tray.

First Claim
