Connecting rod for knuckle joint device and knuckle joint device comprising said rod
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 17, 2003
Grant Date -
N/A
app pub date -
Aug 9, 2001
filing date -
Feb 9, 1999
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

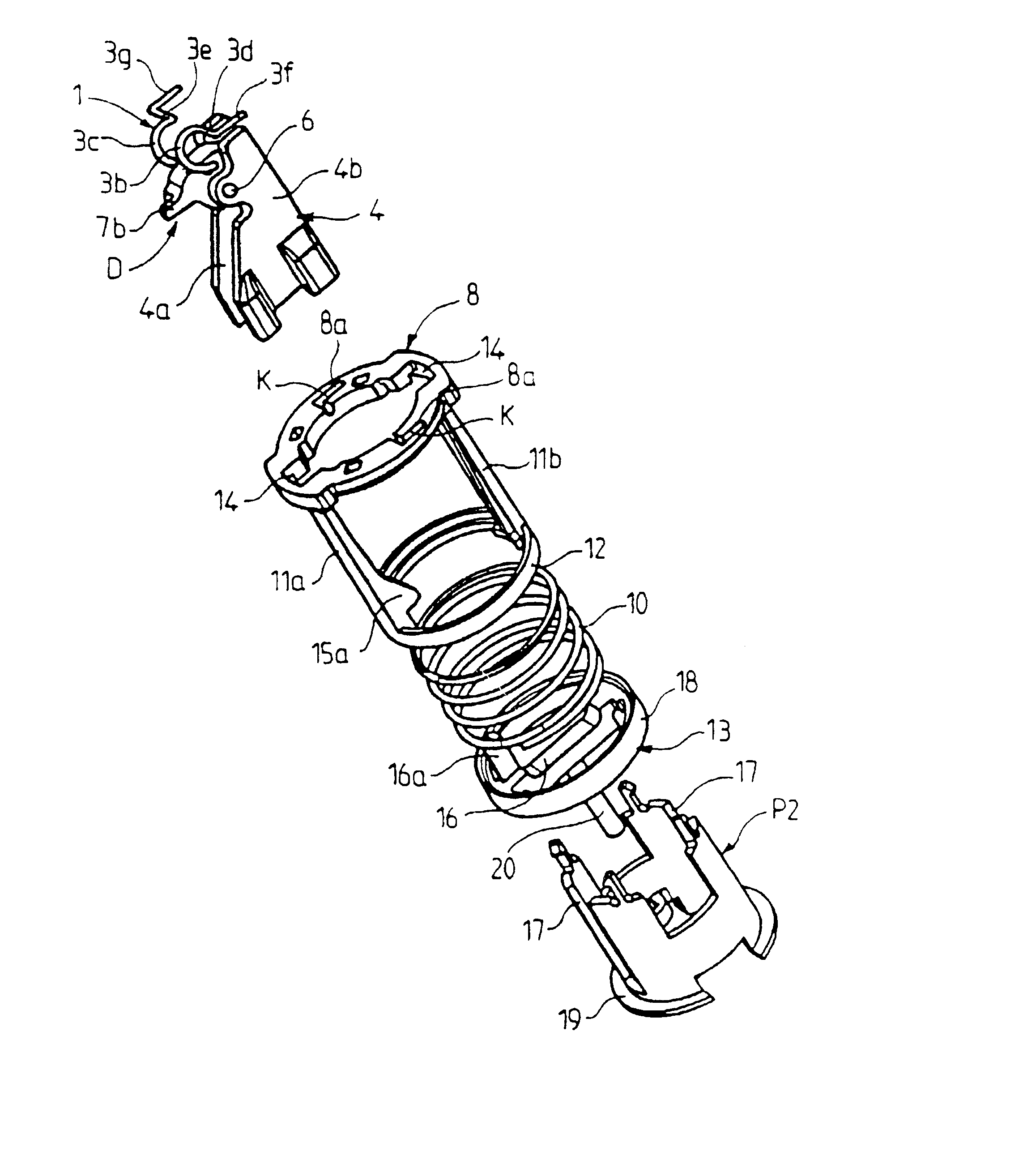

The connecting rod (1) for a knuckle joint device with three parallel axes comprises a substantially U-shaped center part (2), whereby the lower transversal branch (3a) thereof constitutes a third articulated axis (X3) of a release device and said branch (3a) is connected at a substantially right angle to the side branches (3b, 3c) and elastic deformation is possible, the side branches extend as far as the upper end thereof by means of segments (3d,3e) that are bent inwards and are parallel to the transversal branch, whereby said segments (3d,3e) display torsional elasticity around the geometric axis thereof such that a rotational return movement is possible on the side ranches (3b,3c) around said geometrical axis and the second axis (X2) of the knuckle joint device.
First Claim
Other Claims data not available
