Ultrasonic horn assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 17, 2003
Grant Date -
Jun 6, 2002
app pub date -
Dec 1, 2000
filing date -
Dec 1, 2000
priority date (Note) -
In Force
status (Latency Note)
Importance
Calculated Rating
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

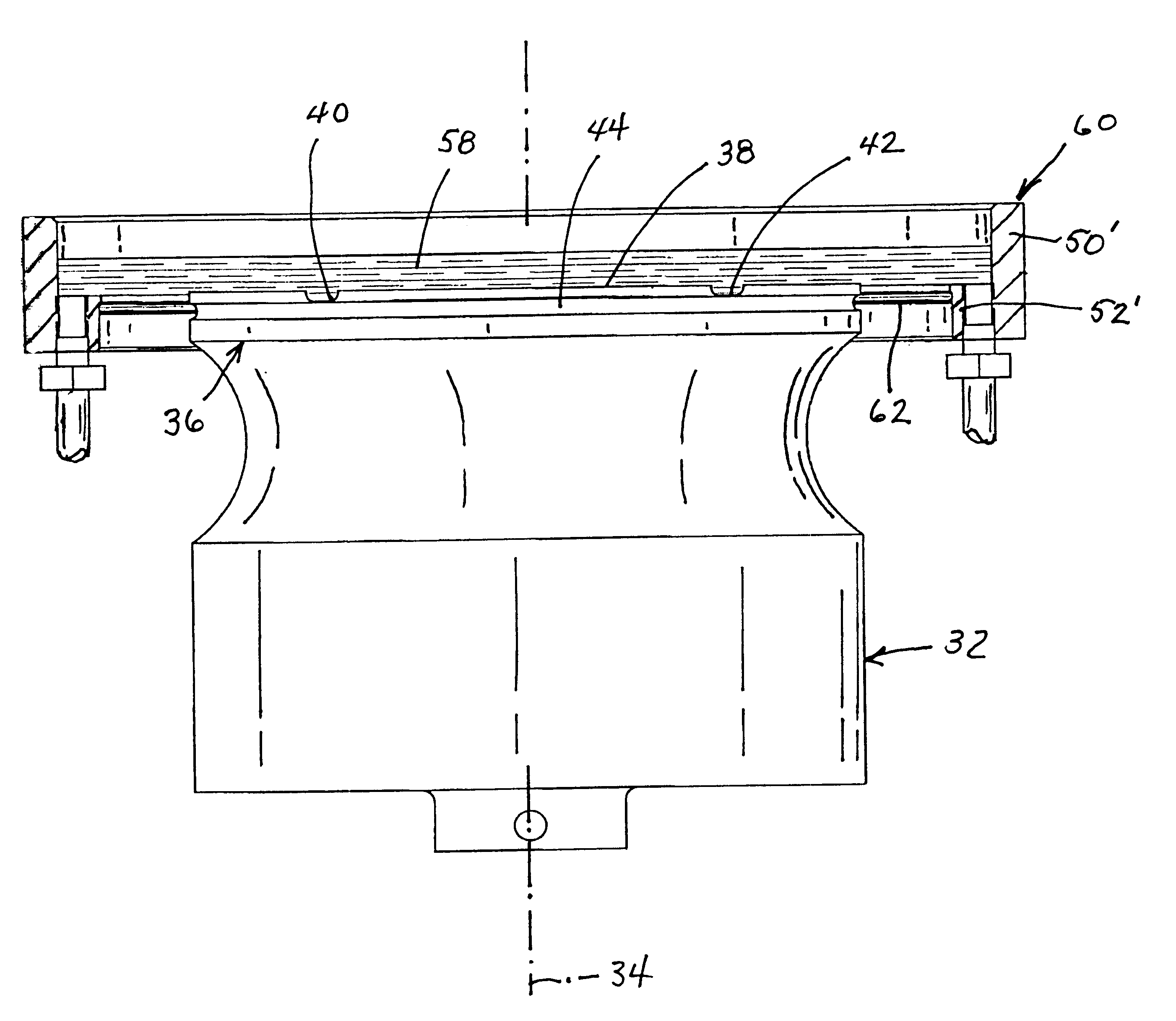

An ultrasonic sonication device includes a velocity transformer or probe which, when coupled to a vibrating transducer of the piezoelectric or magnetostrictive type, resonates in sympathy with the transducer and either increases or decreases the magnitude of the transducer's vibration. A shallow cup assembly is attached to the distal end of the probe. The cup assembly holds a microtiter tray in a suitable orientation and contains an amount of liquid which provides efficient acoustic coupling between a transverse end face of the probe and the microtiter tray.
First Claim
Other Claims data not available
