Metal wall framework and clip
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 17, 2003
Issued Date -
N/A
app pub date -
Jan 19, 2001
filing date -
Mar 11, 1999
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

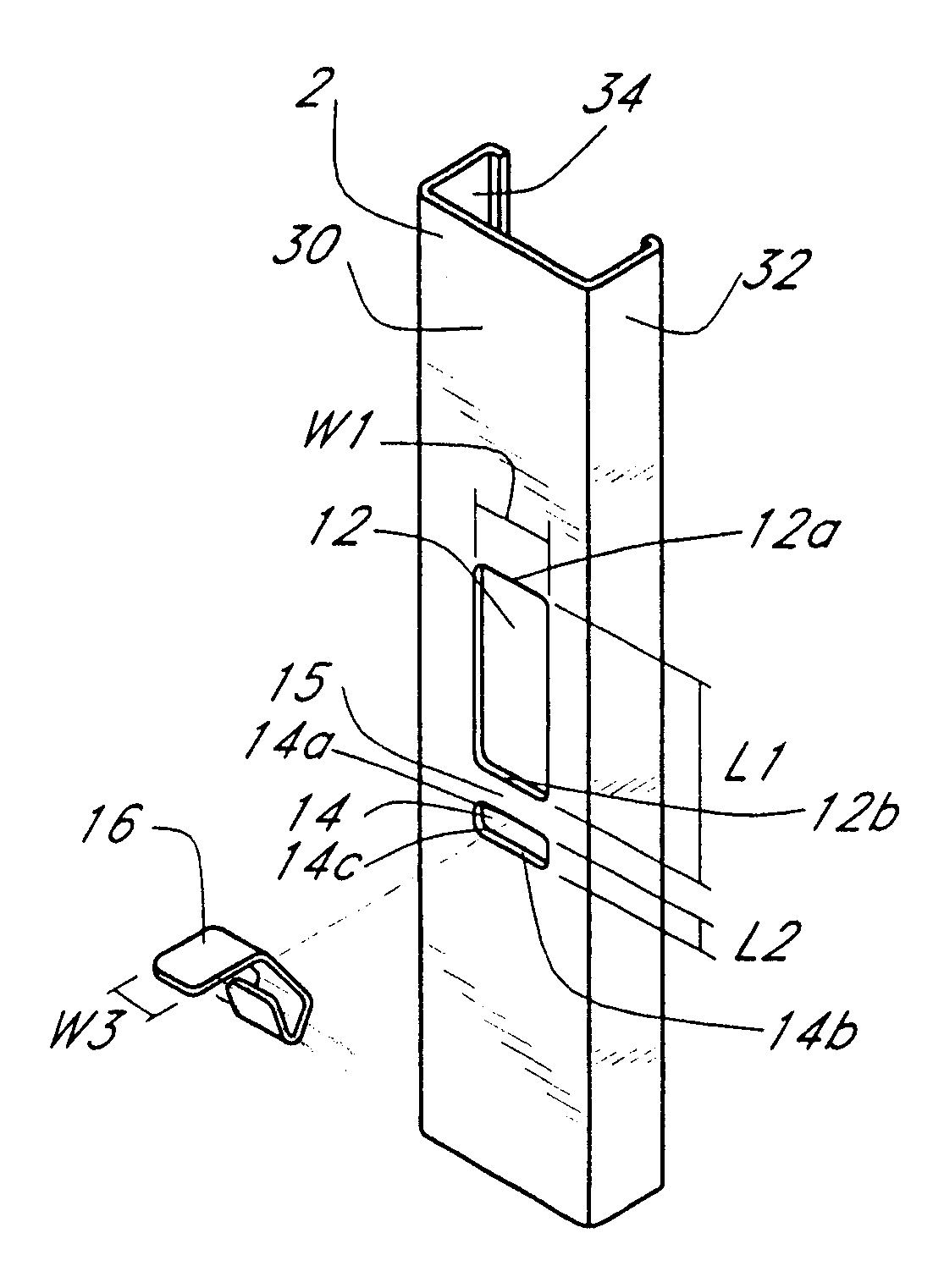

A wall framework includes top and bottom tracks, a horizontal channel and vertical studs. A first vertical stud is secured to the top track and the bottom track and has a first opening sized and shaped to permit the horizontal channel to extend therethrough and a second opening vertically spaced from the first opening. A second vertical stud is secured to the top track and the bottom track and has a third opening sized and shaped to permit the channel to extend therethrough and a fourth opening vertically spaced from the fourth opening. At least one clip extends through the first opening and the second opening. A fastener connects the horizontal channel to the clip. The clip cooperates with the fastener to secure the horizontal channel in a fixed relationship to the first vertical stud.
First Claim
Other Claims data not available
